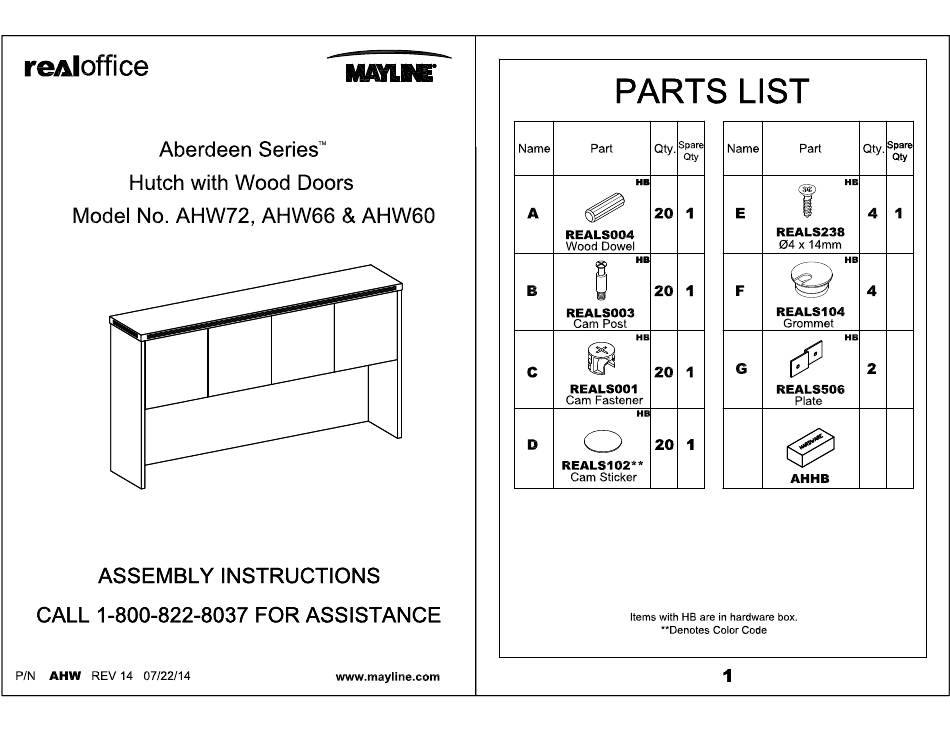

- Page 2 Install Cam Posts (B) into Shelf (M). Insert Wood Dowels (A) into top of 1 1 1 1 PARTS LIST PARTS LIST the Back Panel (R). Insert Cams (C) into the of the back side of Back Panel (R). Slide Back Panels ( Q) into groove in Shelf (M). Name Part Qty.
- Page 3 Stand unit in upright position. Install Cam Posts (B) into Shelf (M). Insert Install Cam Posts (B) into threaded inserts in the Top (L). Insert Wood Dowels (A) and Cam (C) into the Center Divider (S). Fasten Center Divider Dowels (A) and Cams (C) into top of the End Panels (N, P) and Center (S) to Shelf (M) by turning Cams (C).
- Page 4 Position hutch as desired. Install Doors (U, T) into cabinet. Insert Grommets (F) into Shelf (M) and Back Panel (R). Attach Plate (G) using Screws (E) to cabinet body and desk top. Adjust door alignment as necessary by using the adjustment screws on the hinges.
- Page 5 Pre-Installed Replacement Parts List Included Included Part Part Qty. Qty. REALS013P Hinge Plate - REALS051 Hinge Inner Door REALS051P Hinge Plate - REALS016 Outer Door...
