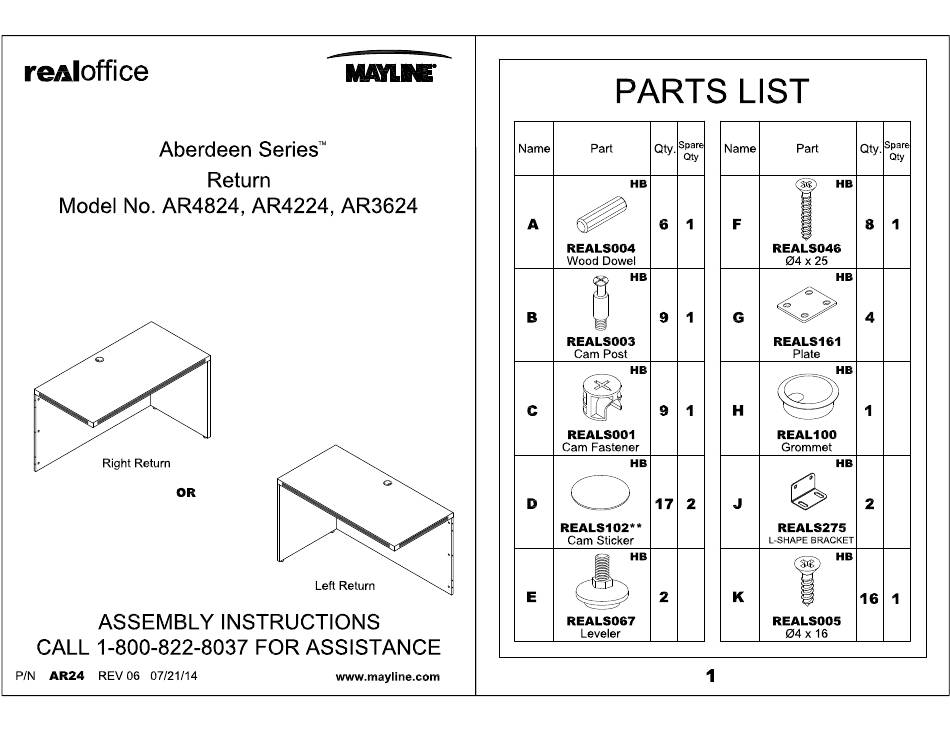

- Page 2 NOTE - Decide if return will be used as a Left or Right prior to beginning assembly. PARTS LIST Insert Wood Dowels (A) into the Modesty Panel (Q) and the top of the Side Panel (P). Insert Cams (C) into Modesty Panel (Q). Install Cam Posts (B) into threaded inserts in Side Panel (P).
- Page 3 Install Cam Posts (B) into threaded inserts in underside of Top (N). Place Top (N) onto base and lock in place by turning Cams (C). Right Return Right Return Left Return Left Return...
- Page 4 Attach to adjacent surface using Screws (F & M) and Plates (G) for surface connection and Plates (G or K) for Modesty Panel or Side Panel connection. Adhere Stickers (D, L) over Cams (C) and unused inserts and holes. Right Return Attach to Extended Corner Left Return...
