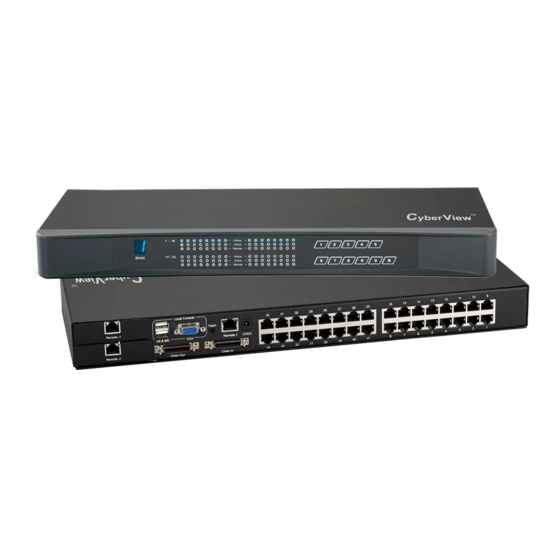

dedicated KVM switch and rackmount screen technology
Cat5-IP08 / 16 / 32
Combo Cat6
2-console KVM
Cat5-08R / 16R / 32R
Combo Cat6 KVM
Cat5-08 / 16 / 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cat5-IP08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberView Cat5-IP08

Summary of Contents for CyberView Cat5-IP08

  • Page 1 KVM switch and rackmount screen technology Cat5-IP08 / 16 / 32 Combo Cat6 2-console KVM Cat5-08R / 16R / 32R Combo Cat6 KVM Cat5-08 / 16 / 32...
  • Page 2 Legal Information First English printing, May 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 >  Cat6 IP KVM Cat5‐IP08 Cat5‐IP16 Cat5‐IP32 Package Content KVM port & Cat6 dongle connection IP & Local console connection Connect to IP console IP Console Firmware Update KVM Cascade Specifications P.10 < Part. 2 > Cat6 2‐console KVM Cat5‐08R   Cat5‐16R Cat5‐32R Package Contents P.11...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Cat6 Ip Kvm

    < Part 1 > Cat6 Cat6 IP KVM < 1.1 > Package Contents Cat5‐IP08 / ‐IP16 / ‐IP32 KVM unit • Cat5‐IP08 or IP‐16 or IP‐32 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1 Cat5‐IP08 Local Console Cascade Power Cat5‐IP16 Cat5‐IP32 UM-CV-751-UKVM- Q222V1...

  • Page 6: Kvm Port & Cat6 Dongle Connection

    < 1.2 > KVM port & Cat6 dongle connection Cat6 IP KVM Cat5 Dongle USB‐C Cat5 Dongle DP Cat5 Dongle HDMI Cat5 Dongle USB/DVI Cat5 Dongle USB USB-C dongle DP-USB dongle HDMI-USB DVI-USB dongle VGA-USB dongle dongle Servers Cat5 Dongle USB‐C USB-C CAT 5 / 6 cable Cat5 Dongle DP max. 40 meters Cat6 KVM port Cat5 Dongle HDMI HDMI CAT 5 / 6 cable Cat5 Dongle USB/DVI DVI- max.
  • Page 7 < 1.3 > IP & Local console connection Cat6 IP KVM IP Console Frequency Resolution Support ( Hz ) 1920 x 1080 1920 x 1200 1600 x 1200 1280 x 1024 1024 x 768 UM-CV-751-UKVM- Q222V1...

  • Page 8: Connect To Ip Console

    < 1.4 > Connect to IP console Cat6 IP KVM Please make sure to follow the below steps to setup your KVM IP properly. I. Configure the target server The target server is the server that connected to the IP KVM Switch. Before use IP remote access, you need to turn off mouse acceleration of all target servers. Please refer to below for Windows operating system. Mouse setting From the Control Panel, double-click the Mouse icon to open the Mouse Properties dialog box.
  • Page 9 Cat6 IP KVM Change display scaling setting 100% Open Settings. Click on System. Click on Display. Under the “Scale and layout” section, select the scale 100%. UM-CV-751-UKVM- Q222V1...
  • Page 10 Cat6 IP KVM II. Logging in to IP KVM The default IP address is as below: IP address: 192.168.1.22 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 IP KVM model with single IP port: - Default address 192.168.1.22 IP KVM model with dual IP ports: - The 1st IP address 192.168.1.22 - The 2nd IP address 192.168.1.23 To log in to the IP KVM do as follows: Open the browser on the client, in the address bar, enter the default IP KVM address ( 192.168.1.22...
  • Page 11 Apply to save the resolution. The setting is enough for intranet. If the users access KVM GUI via internet, please ask MIS for assistance and  download  IP KVM user manual from the link : www.austin‐hughes.com/support/usermanual/cyberview/UM‐CV‐IP.pdf IV. Launch remote console Click Control and then Remote console, the Remote console Preview is displayed, then Click Connect, the remote console opens in a separate windows. When first start, the local mouse is not synchronized with the remote mouse, it appears at a distance to each other, press the Mouse Sync once ( positioning top left corner ), the mouse will align.

  • Page 12: Ip Console Firmware Update

    < 1.5 > IP Console Firmware Update Cat6 IP KVM Firmware Update Steps 1) Download the latest IP KVM firmware from the link http://www.austin-hughes.com/resources/software/kvm- switch 2) Login the IP KVM 3) Click < Maintenance > 4) Click < Update Firmware > 5) Click < Browse > to select the firmware file 6) Click <...

  • Page 13: Kvm Cascade

    < 1.6 > KVM Cascade Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with KVM-BC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5‐08 / Cat5‐16 / Cat5‐32. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other  Expansion  KVM switches (e.g. level 2 to 8). Master KVM Cascade ExpansionKVM Cat5‐16 level 2 ExpansionKVM Cat5‐16 level 3 ExpansionKVM Cat5‐16 level 4 ExpansionKVM Cat5‐16 level 5...

  • Page 14: Specifications

    < 1.7 > Specifications Cat6 IP KVM Cat5‐IP08 Cat5‐IP16 Cat5‐IP32 KVM Port ▀ Number of ports 8, 16 or 32 : Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ▀...

  • Page 15: Part. 2 > Cat6 2-Console Kvm

    < Part 2 > Cat6 2‐console KVM Cat6 2‐console KVM < 2.1 > Package Contents Cat5‐08R / 16R / 32R • Cat5‐08R or 16R or 32R KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power cord ( for KVM ) x 1 • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver )  x 1 • CE‐6 6ft Combo KVM cable for receiver box  x 1 Cat5‐08R Local Console Remote Cascade Power Cat5‐16R Cat5‐32R UM-CV-751-UKVM- P.11...

  • Page 16: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM port & Cat6 dongle connection Cat6 2‐console KVM Cat5 Dongle USB‐C Cat5 Dongle DP Cat5 Dongle HDMI Cat5 Dongle USB/DVI Cat5‐Dongle USB USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers Cat5 Dongle USB‐C USB-C CAT 5 / 6 cable Cat5 Dongle DP max. 40 meters Cat6 KVM port Cat5 Dongle HDMI HDMI CAT 5 / 6 cable Cat5 Dongle DVI DVI- max.

  • Page 17: Remote & Local Console Connection

    < 2.3 > Remote & Local console connection Cat6 2‐console KVM For remote console, max. cable length is   subject to the resolution. Please refer to the tables below. Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200 1600 x 1200 1440 x 900 1280 x 1024 1024 x 768 60 / 70 / 75 UM-CV-751-UKVM- P.13...
  • Page 18 How to use a receiver to connect a remote console Cat6 2‐console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.23 Remote   Console Local computer  (  Cat6 cable   CE‐6 Optional setup) Combo   up to150m KVMcable Front 12V DC Power   Adapter cable Monitor UM-CV-751-UKVM- P.14 Q222V1...

  • Page 19: Kvm Cascade

    < 2.4 > KVM Cascade Cat6 2‐console KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5‐08 / Cat5‐16 / C a t5 ‐ 32 When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other  Expansion  KVM switches (e.g. level 2 to 8). Master KVM Cascade To console VGA port ExpansionKVM Cat5‐16 level 2 ExpansionKVM Cat5‐16 level 3 ExpansionKVM Cat5‐16...

  • Page 20: Specifications

    < 2.5 > Specifications Cat6 2‐console KVM Cat5‐08R Cat5‐16R Cat5‐32R KVM Port ▀ Number of ports 8, 16 or 32 : Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ▀...

  • Page 21: Part. 3 > Cat6 Kvm

    < Part 3 > Cat6 KVM Cat6 KVM < 3.1 > Package Contents U‐801 / U‐1601 / U‐3201 KVM unit • Cat5‐08 or Cat5‐16 or Cat5‐32 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1 Cat5‐08 Local Console Power Cascade Cat5‐16 Cat5‐32 UM-CV-751-UKVM- P.17 Q222V1...

  • Page 22: Kvm Port & Cat6 Dongle Connection

    < 3.2 > KVM port & Cat6 dongle connection Cat6 KVM DG‐100C DG‐100P DG‐100H DG‐100SD DG‐100S USB-C dongle DP-USB dongle HDMI-USB DVI-USB VGA-USB dongle dongle dongle Servers Cat5 Dongle‐USB‐C USB-C CAT 5 / 6 cable Cat5 Dongle DP max. 40 meters Cat6 KVM port Cat5 Dongle HDMI HDMI CAT 5 / 6 cable Cat5 Dongle USB/DVI DVI- max.

  • Page 23: Kvm Cascade

    < 3.3 > KVM Cascade Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with KVM-BC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5‐08 / Cat5‐16 / Cat5‐32. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other  Expansion  KVM switches (e.g. level 2 to 8). Master KVM Cascade To console VGA port ExpansionKVM Cat5‐16 level 2 ExpansionKVM Cat5‐16 level 3 ExpansionKVM Cat5‐16 level 4 ExpansionKVM...

  • Page 24: Specifications

    < 3.4 > Specifications Cat6 KVM Cat5‐08 Cat5‐16 Cat5‐32 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 Connectivity : cable Local Console ▀...

  • Page 25: Part. 4 > Usage 4.1 Kvm Button

    < Part 4 > Usage Cat6 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel ‐ Port LED Indications 8 ports Bank no.

  • Page 26: Password

    < 4.2 > Password Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on   number pad) ■ Enable password 1. Press the KVM hotkey Scroll Lock + Scroll Lock + U 2. Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P 3.

  • Page 27: Kvm Osd

    < 4.3 > KVM OSD Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is poweredon next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Complete / Switch to selected port Enter Switch to previous or next port Switch to previous bank or next bank...

  • Page 28: Kvm Hotkey & Remote Console Hotkey

    < 4.4 > KVM Hotkey & Remote Console Hotkey Cat6 KVM Usage Local / IP Remote Console Hotkey Function Calling OSD menu Scroll Lock + Scroll Lock +Space Bar  Right‐ Calling OSD menu button mouse + Esc Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + Switch to previous bank or next bank PgUp / PgDn Switch to specific port Scroll Lock + Scroll Lock +...
  • Page 29 < 4.5 > Options : DC Power Cat6 KVM Usage Model 125V 250V Input rating Input 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt voltage: 9 ~18V 18 ~36V 36 ~75V 66 ~160V 180 ~425V Input range: Input current 50 mA 50 mA 50 mA 35 mA 10 mA - No load - Full load 4950 mA...
  • Page 30 Intentionally Left Blank UM-CV-751-UKVM- P.26 Q222V1...
  • Page 31 Intentionall y Left Blank UM-CV-751-UKVM- P.27 Q222V1...
  • Page 32 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners.
