Installation
A

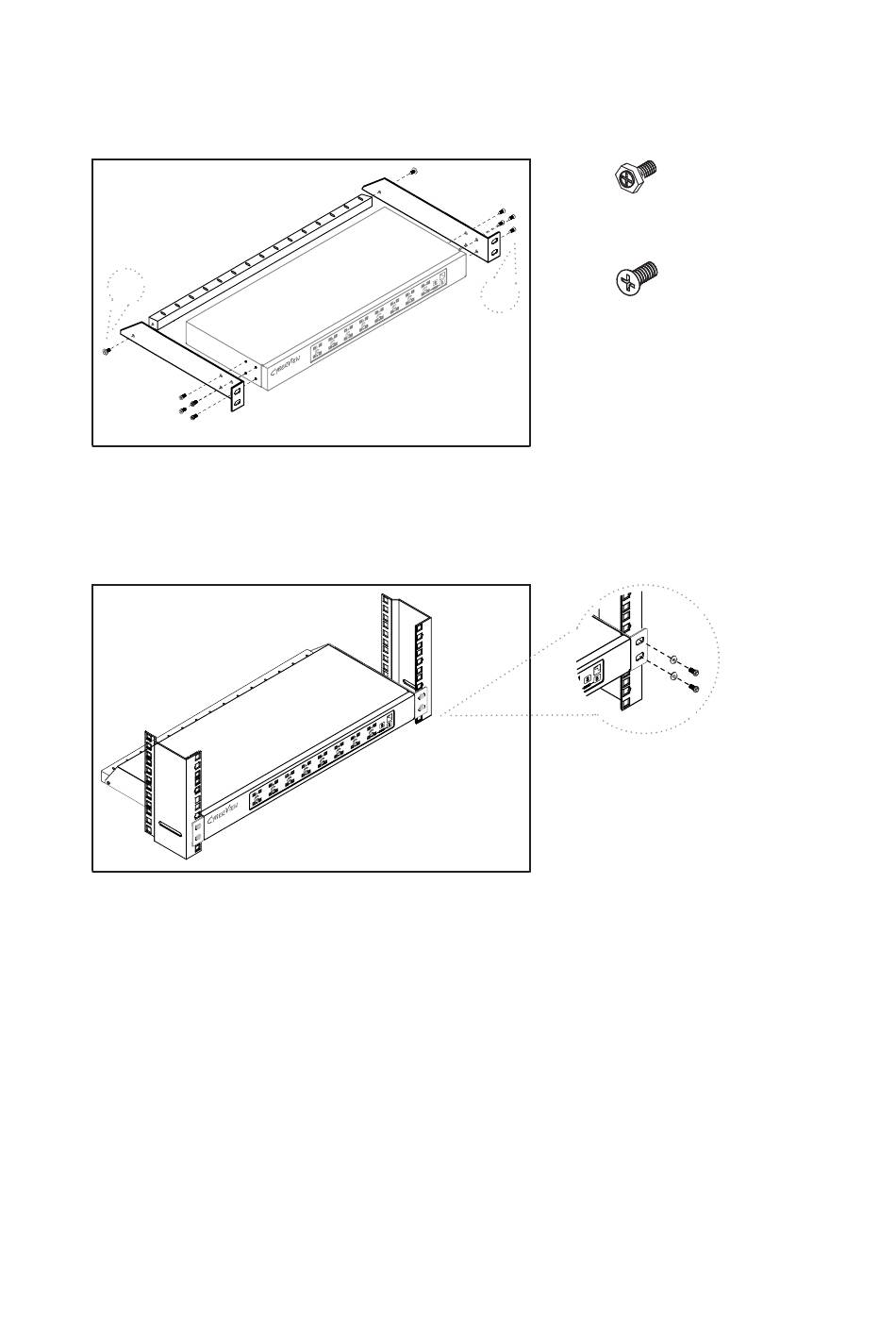

Figure 1. Installing the bracket to the KVM.
Figure 2. Fixing the KVM into the rack.
screw A: M3.2 x 4.5 mm
B
screw B: M4 x 10 mm
■
Install each bracket using screws pro-
vided shown in Figure 1.
■
Fix the KVM into the rack
* Hardware for fi xing the mounting bracket
to the rack is not provided
Advertisement
Table of Contents
Related Manuals for CyberView M-804
Summary of Contents for CyberView M-804
- Page 1 Installation screw A: M3.2 x 4.5 mm screw B: M4 x 10 mm ■ Install each bracket using screws pro- vided shown in Figure 1. Figure 1. Installing the bracket to the KVM. ■ Fix the KVM into the rack * Hardware for fi...
- Page 2 M-802 / M-803 / M-804 Matrix DB-15 8 port KVM Package Content (only for rackmount KVM) KVM switch x 1 pc Screw M3.2 x 4.5mm x 4 pcs Screw M4 x 10mm x 8 pcs Bracket x 1 set Receiver...
- Page 3 M-802 / M-803 / M-804 Matrix DB-15 8 port KVM Connection Local console Remote 1 Power M-802 Cascade Local console Remote 1 Power M-803 Remote 2 Cascade Local Remote 3 console Remote 1 Power M-804 Remote 2 Cascade Connection Rackmount KVM...
- Page 4 M-802 / M-803 / M-804 Matrix DB-15 8 port KVM Connection KVM modules Cat6 cable up to 300 meters to remote access server CE cable supports PS/2 or USB interface server Servers back Remote Remote DB-15 KVM port Cat6 Cat6...
-
Page 5: Receiver Connection
M-802 / M-803 / M-804 Matrix DB-15 8 port KVM Receiver Receiver Box Front View Rear View Local Remote Local Monitor Remote I/O Power Button Button Computer Keyboard Mouse Receiver Connection M-804 12V DC Power Adapter Monitor Cat6 cable up to 300m... - Page 6 M-802 / M-803 / M-804 Matrix DB-15 8 port KVM Cascade ■ Cascade up to 8 levels, 64 servers ■ Interconnection with Matrix Cat6 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade Rackmount KVM Power Cascade M-1602 CMC-3 cable...
- Page 7 M-802 / M-803 / M-804 Matrix DB-15 8 port KVM Cascade ■ Cascade up to 8 levels, 64 servers ■ Interconnection with Matrix Cat6 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade KVM modules back Cascade M-1602 CMC-3 cable...
- Page 8 M-1602 / M-1603 / M-1604 Matrix DB-15 16 port KVM Package Content (only for rackmount KVM) KVM switch x 1 pc Screw M3.2 x 4.5mm x 4 pcs Screw M4 x 10mm x 8 pcs Bracket x 1 set Receiver *Qty refer to the below table User manual x 1 pc 12V Power adapter (for KVM) x 1 pc...
- Page 9 M-1602 / M-1603 / M-1604 Matrix DB-15 16 port KVM Connection Local console Remote 1 M-1602 Cascade Local console Remote 1 M-1603 Remote 2 Cascade Local Remote 3 console Remote 1 M-1604 Remote 2 Cascade Connection Rackmount KVM CE cable supports PS/2 or USB interface server Cat6 cable up to 300 meters to remote access server...
- Page 10 M-1602 / M-1603 / M-1604 Matrix DB-15 16 port KVM Connection KVM modules Cat6 cable up to 300 meters to remote access server CE cable supports PS/2 or USB interface server Servers back Remote Remote DB-15 KVM port Cat6 Cat6 Power Console Console...
- Page 11 M-1602 / M-1603 / M-1604 Matrix DB-15 16 port KVM Receiver Receiver Box Front View Rear View Local Remote Local Monitor Remote I/O Power Button Button Computer Keyboard Mouse Receiver Connection M-1604 12V DC Power Adapter Monitor Cat6 cable up to 300m CE-6 KVM cable KB MS USB server via CE-6...
- Page 12 M-1602 / M-1603 / M-1604 Matrix DB-15 16 port KVM Cascade ■ Cascade up to 8 levels, 128 servers ■ Interconnection with Matrix Cat6 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade Rackmount KVM Cascade M-1602 CMC-3 cable M-802 MU-3202 CMC-3 cable MU-1602...
- Page 13 M-1602 / M-1603 / M-1604 Matrix DB-15 16 port KVM Cascade ■ Cascade up to 8 levels, 128 servers ■ Interconnection with Matrix Cat6 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade KVM modules back Cascade M-1602 CMC-3 cable M-802 MU-3202 CMC-3 cable...
-
Page 14: Specifications
Specifi cations Matrix DB-15 8 port KVM M-802 / M-803 / M-804 Matrix Cat5 Matrix Cat5 Matrix Cat5 KVM Port ▀ Number of ports: Connector: 8 x DB-15 combo connector Connectivity: Combo 4-in-1 KVM cable up to 6, 10 & 15 feet Local Console ▀... - Page 15 Specifi cations Matrix DB-15 16 port KVM M-1602 / M-1603 / M-1604 Matrix Cat5 Matrix Cat5 Matrix Cat5 KVM Port ▀ Number of ports: Connector: 16 x DB-15 combo connector Connectivity: Combo 4-in-1 KVM cable up to 6, 10 & 15 feet Local Console ▀...
- Page 16 KVM Button Matrix KVM Usage Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Matrix BANK...
-
Page 17: Matrix Kvm Usage
Password Matrix KVM Usage The password is disabled by default ( i.e. There is no password required when you power on the KVM switch for the first time) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 18: Osd Operation
KVM OSD Matrix KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port... - Page 19 KVM Hotkey Matrix KVM Usage Local Console Hotkey Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn...
-
Page 20: Initial Ip Confi Guration
Setting Matrix KVM Usage Quick Installation Guide of IP KVM for remote access Please perform the follow steps 1. Power off all KVM hardware and connected devices. 2. Connect the power supply to IP KVM 3. Connect the monitor, keyboard & mouse to console port of IP KVM (not applicable to integrated LCD drawer version) 4. - Page 21 Setting Matrix KVM Usage 4. Remote access the IP-KVM switch via Web Using the HTTP protocol or a secure encrypted connection via HTTPS and entering the confi gured IP address of IP KVM switch into the web browser to remote access the IP KVM switch. With successful connection to IP KVM, the login page will show as below, then key in the default user name &...
-
Page 22: Optional Accessories
Optional Accessories Matrix KVM Usage 1. Combo KVM cable 1.1 CE-6 6 feet 1.2 CE-10 10 feet 1.3 CE-15 15 feet 2. Matrix KVM cascade cable 2.1 CMC-3 3 feet 3. Cat5 cable 3.1 CU-3 3 feet 3.2 CU-6 6 feet 3.3 CU-10 10 feet 3.4 CU-15 15 feet 3.5 CU-33 33 feet... -
Page 23: Dc Power 12V, 24V, 48V Input
DC Power 12V, 24V, 48V Input Matrix KVM Usage Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
