- Page 1 KVM switch and rackmount screen technology User Manual CV-801K 4K KVM Designed and manufactured by Austin Hughes UM-CV-751-4KKVM-Q420V1 www.austin-hughes.com...
-
Page 2: Legal Information
Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Before Installation
Contents < Part. 1 > 4K KVM CV-801K Package Contents KVM port connection Specifi cations < Part. 2 > 4K KVM Usage KVM Button KVM Hotkey Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. -
Page 4: Package Contents

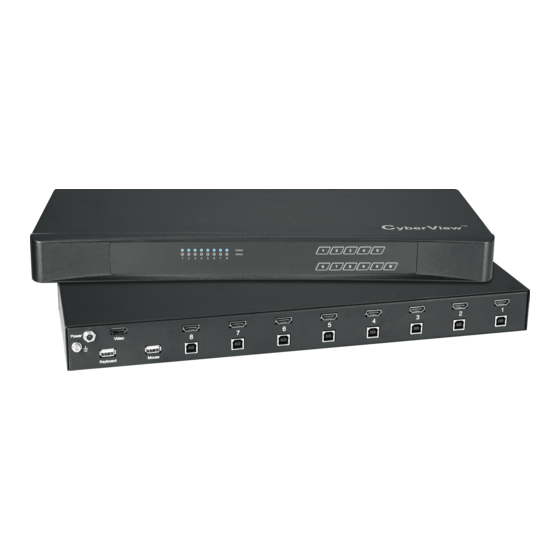

< Part 1 > 4K KVM 4K KVM < 1.1 > Package Contents CV-801K KVM unit • 4K KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1... -
Page 5: Kvm Port Connection
< 1.2 > KVM port connection 4K KVM HDMI CK-6P KVM cable CK-6H KVM cable USB-A USB-A Video Keyboard Mouse USB Hub Local Console KVM port x 8 1 x HDMI 2.0 ( HDMI + USB-B ) 2 x USB-A ( USB Hub ) 2 x USB-A ( KB / MS ) 4K KVM Cable CK-6P : 6 feet DP KVM cable... -
Page 6: Specifications
< 1.3 > Specifi cations 4K KVM CV-801K KVM Port ▀ Number of ports : Connector : HDMI 2.0 + USB-B ( Video + KB / MS ) Resolution : 16 : 9 - max. 3840 x 2160@60Hz 16 : 10 - max. 1920 x 1200@60Hz 4 : 3 - max. -
Page 7: Kvm Button
< Part 2 > Usage 4K KVM Usage < 2.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports PC port LEDs... -
Page 8: Kvm Hotkey
< 2.2 > KVM Hotkey 4K KVM Usage Hotkey Function Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + Port no. Switch to specifi c port Scroll Lock + Scroll Lock + Auto scan for powered on PC Scroll Lock + Scroll Lock +...
