- Page 1 KVM switch and rackmount screen technology User Manual Combo DB-15 2-console KVM IP-802 / IP-1602 Combo DB-15 2-console KVM CV-802 / CV-1602 Combo DB-15 KVM CV-S801 / CV-S1601 Designed and manufactured by Austin Hughes UM-CV-751-SKVM-Q221V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-SKVM-Q221V1 www.austin-hughes.com...
- Page 3 Legal Information First English printing, April 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
IP console setting Important Preconfi guration for IP console P.4 - 6 KVM Cascade Specifi cations < Part. 2 > Combo DB-15 2-console KVM CV-802 CV-1602 Package Contents KVM port connection Remote & Local console connection P.10 - 11 KVM Cascade P.12... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Combo Db-15 Ip Kvm

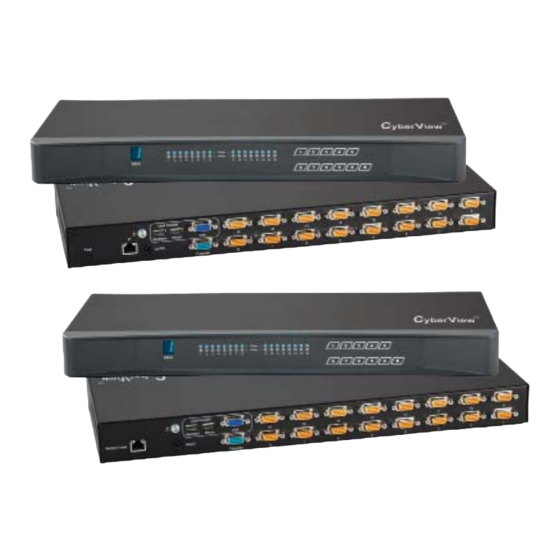

< Part 1 > Combo DB-15 Combo DB-15 IP KVM < 1.1 > Package Contents IP-802 / IP-1602 KVM unit • IP-802 or IP-1602 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1 IP-802 Local Console Power... -
Page 7: Ip & Local Console Connection
< 1.3 > IP & Local console connection Combo DB-15 IP KVM IP Console ( Standard ) IP Console ( 1080 support ) Frequency Frequency Resolution Support Resolution Support ( Hz ) ( Hz ) 1600 x 1200 1920 x 1080 1280 x 1024 1600 x 1200 1024 x 768... -
Page 8: Ip Console Setting
After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to confi gure the IP KVM by device setup as below. 3. Click Refresh Device to search the connected IP KVM 4. -
Page 9: Important Preconfi Guration For Ip Console
< 1.5 > Important Preconfi guration for IP console Combo DB-15 IP KVM You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz. - Page 10 < 1.5 > Important Preconfi guration for IP console Combo DB-15 IP KVM ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
- Page 11 Combo DB-15 IP KVM 6) Click < Update > After the firmware has been updated, IP KVM will reset automatically. After one minute, you will be redirected to the Login page and requested to login again. - Completed UM-CV-751-SKVM-Q221V1 www.austin-hughes.com...
-
Page 12: Kvm Cascade
< 1.6 > KVM Cascade Combo DB-15 IP KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 13: Specifi Cations
< 1.7 > Specifi cations Combo DB-15 IP KVM IP-802 IP-1602 KVM Port ▀ Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : USB 2-in-1 KVM cable, up to 6, 10 & 15 feet Local Console ▀... -
Page 14: Combo Db-15 2-Console Kvm
Combo DB-15 2-console KVM < 2.1 > Package Contents Combo DB-15 2-console KVM CV-802 / CV-1602 • CV-802 or CV-1602 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power adapter w/ power cord ( for KVM ) x 1 •... -
Page 15: Remote & Local Console Connection
< 2.3 > Remote & Local console connection Combo DB-15 2-console KVM Local console Remote Cat6 Console Remote USB console For remote console, max. cable length is Receiver subject to the resolution. Please refer to the tables below. CAT 5 / 6 cable Remote Console Frequency Max. - Page 16 How to use a receiver to connect a remote console Combo DB-15 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer...
-
Page 17: Kvm Cascade
< 2.4 > KVM Cascade Combo DB-15 2-console KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 18: Specifi Cations
Dimension (W x D x H) : 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch Net weight : 2.3 kg / 5.1 lb ( CV-802 ) 2.5 kg / 5.5 lb ( CV-1602 ) Packing Information ▀... -
Page 19: Combo Db-15 Kvm
< Part 3 > Combo DB-15 KVM Combo DB-15 KVM < 3.1 > Package Contents CV-S801 / CV-S1601 KVM unit • CV-S801 or CV-S1601 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1 CV-S801 Local Console Power... -
Page 20: Kvm Port Connection
< 3.2 > KVM port connection Combo DB-15 KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 Combo KVM port CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers UM-CV-751-SKVM-Q221V1... -
Page 21: Kvm Cascade
< 3.3 > KVM Cascade Combo DB-15 KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 22: Specifi Cations
< 3.4 > Specifi cations Combo DB-15 KVM CV-S801 CV-S1601 ▀ KVM Port Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : USB 2-in-1 KVM cable, up to 6, 10 & 15 feet ▀ Local Console Graphic connector : 1 x DB-15 VGA Input device :... -
Page 23: Combo Db-15 Kvm Usage
< Part 4 > Usage Combo DB-15 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 24: Password
< 4.2 > Password Combo DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 25: Kvm Osd
< 4.3 > KVM OSD Combo DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter... -
Page 26: Kvm Hotkey & Remote Console Hotkey
< 4.4 > KVM Hotkey & Remote Console Hotkey Combo DB-15 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port... - Page 27 < 4.5 > Options : DC Power Combo DB-15 KVM Usage Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-SKVM-Q221V1 www.austin-hughes.com...
