Eaton IQ 150S User & Installation Manual

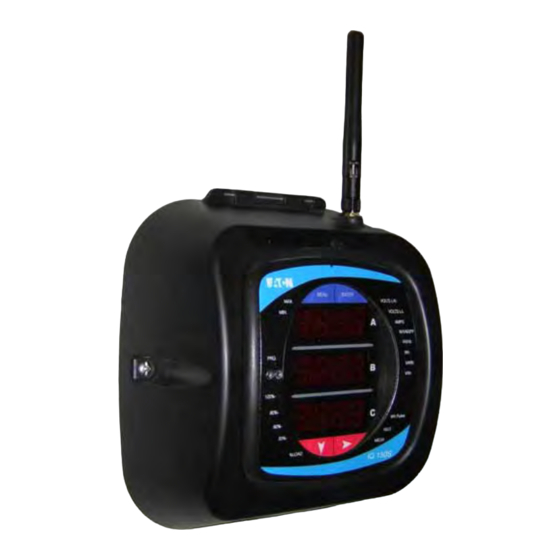

Electronic self-enclosed submeters with wifi ethernet capability
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IQ 150S/250S
Electronic Self-Enclosed Submeters with
Wifi Ethernet Capability
User & Installation Manual
IM02601006E Rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ 150S and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton IQ 150S

Summary of Contents for Eaton IQ 150S

  • Page 1 IQ 150S/250S Electronic Self-Enclosed Submeters with Wifi Ethernet Capability User & Installation Manual IM02601006E Rev 1.0...
  • Page 2 MENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental...
  • Page 3 3. Fill out the product registration information below and fax this page to 919-431-6240. Product:__________________________________________________________ Product Model or Version Number:_____________________________________ Product Serial or License Number:_____________________________________ Company:________________________________________________________ Your Name:_______________________________________________________ Address:_________________________________________________________ Address:_________________________________________________________ City:_________________________________ State:________ Zip:_______ Email:___________________________________________________________ Today’s Date:_____________________________________________________ Phone:___________________________________________________________ Eaton GO number (if known)_________________________________________...

  • Page 5: Table Of Contents

    Table of Contents Table of Contents 1: Introduction About This Manual Warranty and Liability Information Safety Precautions FCC Information 2: IQ 150S/250S Submeter Overview and Specifications 2.1: Hardware Overview 2.1.1: Ordering Information 2.1.2: Measured Values 2.1.3: Utility Peak Demand 2.2: Specifications 2.3: Compliance...
  • Page 6 5.1.2: KYZ Output 5.1.3: Ethernet Connection 5.2: Meter Communication and Programming Overview 5.2.1: How to Connect to the Submeter 5.2.2: IQ 150S Submeter Device Profile Settings 5.2.3: IQ 250S Submeter Device Profile Settings 5-13 5.2.4: Polling the IQ 150S/250S Submeter 5-47 5.2.5: Using the IQ 150S/250S Tools Menu...
  • Page 7 7.2.5.4: Configuring Connection Setting 7-13 7.2.5.5: Configuring Communication Port Setting 7-13 7.2.6: Using Operating Mode 7-15 7.3: Understanding the % of Load Bar 7-16 7.4: Performing Watt-Hour Accuracy Testing (Verification) 7-17 A: IQ 150S/250S Meter Navigation Maps A.1: Introduction www.eaton.com TOC-3  IM02601006E...
  • Page 8 IQ 150S/250S Table of Contents A.2: Navigation Maps B: IQ 150S/250S Meter Modbus Map B.1: Introduction B.2: Modbus Register Map Sections B.3: Data Formats B.4: Floating Point Values B.5: Retrieving Logs Using the IQ 250S Meter's Modbus Map B.5.1: Data Formats B.5.2: IQ 250S Meter Logs...
  • Page 9 C.5.1.4: 16-Bit Analog Input Without Flag (Obj. 30, Var. 4) C.5.1.5: Class 0 Data (Obj. 60, Var. 1) C-13 C.5.1.6: Internal Indications (Obj. 80, Var. 1) C-13 C.6: IQ 150S Meter DNP Mapping (DNP-1 to DNP-2) C-13 D: IQ 250S Meter DNP Map D.1: Overview D.2: Physical Layer D.3: Data Link Layer...
  • Page 10 IQ 150S/250S Table of Contents This page intentionally left blank. www.eaton.com TOC-6  IM02601006E...

  • Page 11: 1: Introduction

    COURSE OR DEALING OR USAGE OF TRADE ARE MADE REGARDING THE INFORMA- TION,RECOMMENDATIONS, AND DESCRIPTIONS CONTAINED HEREIN. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negli- gence), strict liability or otherwise for any special, indirect, incidental, or consequential damage or...

  • Page 12: Safety Precautions

    Follow all Warnings and Cautions. Completely read and understood the information in this docu- ment before attempting to install or operate the equipment. Improper wiring could cause death, injury, or equipment damage. Only qualified personnel are to service the IQ 150S/250S Meter. TROUBLESHOOTING PROCEDURES MAY REQUIRE PROXIMITY TO EXPOSED ENER- GIZED(LIVE) ELECTRICAL WIRING AND/OR PARTS WHERE THE HAZARD OF FATAL ELEC- TRIC SHOCK IS PRESENT.
  • Page 13 IQ 150S/250S 1: Introduction Covered by one or more of the following patents: US Patent Numbers D526920, D525893, 6751563, 6735535, 6636030. IM02601006E www.eaton.com...
  • Page 14 IQ 150S/250S 1: Introduction This page intentionally left blank. IM02601006E www.eaton.com...

  • Page 15: 2: Iq 150S/250S Submeter Overview And

    Class 10 only). To verify the submeter’s perfor- mance and calibration, power providers use field test stan- dards to verify that the unit’s energy measurements are correct. The IQ 150S/250S meter is a traceable revenue meter and contains a utility grade test pulse to verify rated accuracy.
  • Page 16 • Direct interface with most Building Management systems The IQ 150S/250S submeter uses standard 5 or 1 Amp CTs (either split or donut). It surface mounts to any wall and is easily programmed. The unit is designed specifically for easy installa- tion and advanced communication.

  • Page 17: 1: Ordering Information

    IQ 150S/250S 2: Overview and Specifications 2.1.1: Ordering Information IQ - 150 - S - A - 6 - 5 - 1 - 1 1. Model: 150 = Energy 250 = Energy Plus 2. Meter Type S = Self-enclosed Submeter 3.

  • Page 18: 2: Measured Values

    IQ 150S/250S 2: Overview and Specifications 2.1.2: Measured Values The IQ 150S/250S meter provides the following measured values all in real time and some addi- tionally as average, maximum and minimum values. IQ150S/250S Meter Measured Values Measured Values Real Time...

  • Page 19: 3: Utility Peak Demand

    (100 to 370)VDC Power Consumption: 16 VA Maximum Voltage Inputs (Measurement Category III) Range: IQ 150S: Universal, Auto-ranging up to 416VAC L-N, 721VAC L-L IQ 250S: Universal, Auto-ranging up to 576VAC L-N, 721VAC L-L Supported hookups: 3 Element Wye, 2.5 Element Wye,...
  • Page 20 IQ 150S/250S 2: Overview and Specifications Connection: Screw terminal - #6 - 32 screws See Figure 3.1 Input Wire Gauge: AWG#16 - 26 Fault Withstand: Meets IEEE C37.90.1 (Surge Withstand Capability) Reading: Programmable Full Scale to any PT Ratio Current Inputs...
  • Page 21 IQ 150S/250S 2: Overview and Specifications Measurement Methods Voltage, Current: True RMS Power: Sampling at 400+ Samples per Cycle on All Channels Measured Readings Simultaneously A/D Conversion: 6 Simultaneous 24 bit Analog to Digital Converters Update Rate Watts, VAR and VA: Every 6 cycles, e.g., 100...
  • Page 22 Wh Pulse KYZ output contacts (and infrared LED light pulses through face plate; see Section 6.4 for Kh val- ues): Pulse Width: 40ms for IQ 150S; 90ms for IQ 250S Full Scale Frequency: ~6Hz for IQ 150S; ~3Hz for IQ...
  • Page 23 IQ 150S/250S 2: Overview and Specifications Infrared LED: Peak Spectral Wavelength: 940nm Reset State: Internal Schematic: Output Timing: Watthour P[Watt] - Not a scaled value 3600 pulse Kh – See Section 7-4 for values Watt IR LED Light Pulses Through face plate...

  • Page 24: Compliance

    IQ 150S/250S 2: Overview and Specifications 2.3: Compliance • IEC 62053-22 (0.2% Accuracy), IQ 250S - Class 10 only • ANSI C12.20 (0.2% Accuracy), IQ 250S - Class 10 only • ANSI (IEEE) C37.90.1 Surge Withstand • ANSI C62.41 (Burst) •...
  • Page 25 IQ 150S/250S 2: Overview and Specifications Apparent Energy Total [VAh] 0.2% of reading (0.15 to 5)A @ (69 to 480)V @ +/- (0.5 to 1) lag/lead PF Power Factor (0.15 to 5)A @ (69 to 480)V 0.2% of reading @ +/- (0.5 to 1) lag/lead PF Frequency +/- 0.01Hz...
  • Page 26 IQ 150S/250S 2: Overview and Specifications This page intentionally left blank. IM02601006E www.eaton.com 2-12...

  • Page 27: 3: Mechanical Installation

    3: Mechanical Installation 3: Mechanical Installation 3.1: Overview The IQ 150S/250S meter can be installed on any wall See Chapter 4 for wiring diagrams. Mount the meter in a dry location, which is free from dirt and corrosive substances. Recommended Installation Tools •...

  • Page 28: 1:Mounting Diagrams

    IQ 150S/250S 3: Mechanical Installation CAUTIONS! • Remove the antenna before opening the unit. • Only use the front cover support if you are able to open the front cover to the extent that you can fit the front cover support into its base. DO NOT rest the front cover support on the inside of the meter, even for a short time - by doing so, you may damage components on the board assem- bly.
  • Page 29 IQ 150S/250S 3: Mechanical Installation Figure 3.3: Front Dimensions IM02601006E www.eaton.com...
  • Page 30 IQ 150S/250S 3: Mechanical Installation Figure 3.4: Side Dimensions IM02601006E www.eaton.com...
  • Page 31 IQ 150S/250S 3: Mechanical Installation 12”/30.4cm Figure 3.5: Open Cover Dimensions Figure 3.6: Bottom View with Access Holes IM02601006E www.eaton.com...

  • Page 32: Secure The Cover

    0.5/0.6 Nm (4.42/5.31 lbF in). 3. The unit can be sealed after the front cover is closed. To seal the unit, thread a seal tag (not supplied by Eaton) through the housing located between the bottom access holes (see figures 3.6 and 3.7).

  • Page 33: 4: Electrical Installation

    Do not HIPOT/Dielectric test any Outputs, Inputs or Communications terminals. Eaton recommends the use of Shorting Blocks and Fuses for voltage leads and power supply to prevent hazardous voltage conditions or damage to CTs, if the meter needs to be removed from service.

  • Page 34: Electrical Connections

    4.2: Electrical Connections All wiring for the IQ 150S/250S is done through the front of the unit (lifting the cover with the power to the unit OFF) so that the unit can be surface mounted. Connecting cables exit the unit via two openings in the base plate (see figures 3.6 and 4.1).

  • Page 35: Ground Connections

    4.4: Voltage Fuses Eaton recommends the use of fuses on each of the sense voltages and on the control power, even though the wiring diagrams in this chapter do not show them. • Use a 0.1 Amp fuse on each Voltage input.

  • Page 36: Electrical Connection Diagrams

    IQ 150S/250S 4: Electrical Installation 4.5: Electrical Connection Diagrams Choose the diagram that best suits your application. Make sure the CT polarity is correct. 1. Three Phase, Four-Wire System Wye with Direct Voltage, 3 Element a. Dual Phase Hookup b. Single Phase Hookup 3.
  • Page 37 IQ 150S/250S 4: Electrical Installation 1. Service: WYE, 4-Wire with No PTs, 3 CTs Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs L2 is for Neutral Select: "3 EL WYE"...
  • Page 38 IQ 150S/250S 4: Electrical Installation 1a. Dual Phase Hookup Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs IM02601006E www.eaton.com...
  • Page 39 IQ 150S/250S 4: Electrical Installation 1b. Single Phase Hookup Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs IM02601006E www.eaton.com...
  • Page 40 IQ 150S/250S 4: Electrical Installation 2. Service: 2.5 Element WYE, 4-Wire with No PTs, 3 CTs Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs Select: "2.5 EL WYE"...
  • Page 41 IQ 150S/250S 4: Electrical Installation 3. Service: WYE, 4-Wire with 3 PTs, 3 CTs Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vn L1 L2 PE Power Supply Inputs Select: "3 EL WYE" (3 Element Wye) in Meter Programming setup.
  • Page 42 IQ 150S/250S 4: Electrical Installation 4. Service: 2.5 Element WYE, 4-Wire with 2 PTs, 3 CTs Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs Select: "2.5 EL WYE" (2.5 Element Wye) in Meter Programming setup.
  • Page 43 IQ 150S/250S 4: Electrical Installation 5. Service: Delta, 3-Wire with No PTs, 2 CTs Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup.
  • Page 44 IQ 150S/250S 4: Electrical Installation 6. Service: Delta, 3-Wire with No PTs, 3 CTs Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup.
  • Page 45 IQ 150S/250S 4: Electrical Installation 7. Service: Delta, 3-Wire with 2 PTs, 2 CTs Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup.
  • Page 46 IQ 150S/250S 4: Electrical Installation 8. Service: Delta, 3-Wire with 2 PTs, 3 CTs Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE Power Supply Inputs Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup.
  • Page 47 IQ 150S/250S 4: Electrical Installation 9. Service: Current Only Measurement (Three Phase) Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE 20VAC Minimum* Power Supply Inputs Select: "3 EL WYE" (3 Element Wye) in Meter Programming setup.
  • Page 48 IQ 150S/250S 4: Electrical Installation 10. Service: Current Only Measurement (Dual Phase) Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE 20VAC Minimum* Power Supply Inputs Select: "3 EL WYE" (3 Element Wye) in Meter Programming setup.
  • Page 49 IQ 150S/250S 4: Electrical Installation 11. Service: Current Only Measurement (Single Phase) Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) Va Vb Vc Vref L1 L2 PE 20VAC Minimum* Power Supply Inputs Select: "3 EL WYE" (3 Element Wye) in Meter Programming setup.
  • Page 50 IQ 150S/250S 4: Electrical Installation This page intentionally left blank. IM02601006E www.eaton.com 4-18...

  • Page 51: 5: Communication Installation

    5: Communication Installation 5.1: IQ 150S/250S Communication The IQ 150S/250S submeter provides a communication port plus a KYZ pulse output. The com- munication port, Com 2, provides RS485 or RJ45 Ethernet or WiFi Ethernet communication (see Chapter 6 for Ethernet communication).
  • Page 52 IQ 150S/250S 5: Communication The IQ150S/250S submeter's RS485 connection can be programmed with the buttons on the face of the meter or by using Eaton Meter Configuration software. Standard RS485 Port Settings Address: 001 to 247 Baud Rate: 9600, 19200, 38400 or 57600 Baud Protocol: Modbus RTU, Modbus ASCII, or DNP 3.0...

  • Page 53: 2: Kyz Output

    IQ 150S/250S 5: Communication 5.1.2: KYZ Output The KYZ pulse output provides pulsing energy values that verify the submeter's readings and accuracy. The KYZ Pulse Output is located on the face of the meter, under the cover and just below the RS485 connection.

  • Page 54: 3: Ethernet Connection

    5: Communication 5.1.3: Ethernet Connection In order to use the IQ 150S/250S submeter’s Ethernet capability, the Ethernet Module must be installed in your meter, and the JP2 must be set to positions 2-3. You can use either wired Ethernet, or WiFi.

  • Page 55: Meter Communication And Programming Overview

    Programming and communication can utilize the RS485 connection shown in Section 5.1.1 or the RJ45/WiFi connection shown in Section 5.1.3. Once a connection is established, Eaton Meter Configuration software can be used to program the meter and communicate to other devices.
  • Page 56 Bar. 6. You will see the IQ 150S/250S meter’s Device Profile screen. NOTE: The following screens are for the IQ 150S. If you are connected to an IQ 250S, see Section 5.2.3. The tabs at the top of the screen allow you to navigate between settings screens (see below).
  • Page 57 IQ 150S/250S 5: Communication 8. Valid Communication Settings are as follows: COM2 (RS485) Address (1-247) Protocol (Modbus RTU, Modbus ASCII or DNP) Baud Rate (9600 to 57600) Response Delay (0-750 msec) 9. When changes are complete, click the Update button to send the new profile to the meter.

  • Page 58: 2: Iq 150S Submeter Device Profile Settings

    IQ 150S/250S 5: Communication 5.2.2: IQ 150S Submeter Device Profile Settings NOTE: You can view this manual online by clicking Help>Contents from the Eaton Meter Config- uration Software’s Main screen. CT, PT Ratios and System Wiring (Scaling tab) The screen fields and acceptable entries are as follows:...
  • Page 59 IQ 150S/250S 5: Communication PT Multiplier: 1, 10, 100, or 1000 Voltage Full Scale: Calculations based on selections. Click Recalculate to see the result of changes. System Wiring 3 Element Wye; 2.5 Element Wye; 2 CT Delta Phases Displayed A, AB, or ABC...
  • Page 60 IQ 150S/250S 5: Communication 345,000/69 Volts: Pt-n value is 345, Pt-d value is 69, Pt-Multiplier value is 1000 NOTE: Settings are the same for Wye and Delta configurations. Energy and Display The settings on this screen determine the display configuration of the meter’s faceplate.
  • Page 61 IQ 150S/250S 5: Communication Demand Averaging Averaging Method: Block or Rolling Interval (Minutes): 5, 15, 30, or 60 Sub Interval (if Rolling is selected): 1-4 Auto Scroll Click to set On or Off. Display Configuration: Click Values to be displayed.
  • Page 62 IQ 150S/250S 5: Communication Settings The screen fields are as follows: Password NOTE: The meter is shipped with Password Disabled. There is NO DEFAULT PASSWORD. Enable Password for Reset: click to Enable. Enable Password for Configuration: click to Enable. Change Password: click to Change.

  • Page 63: 3: Iq 250S Submeter Device Profile Settings

    IQ 150S/250S 5: Communication 5.2.3: IQ 250S Submeter Device Profile Settings 1. When you are connected to an IQ 250S meter and click Profile, you see the following screen. The IQ 250S meter’s Profile screen features a Tree Menu on the left for Settings navigation, and Buttons and a Title Bar that allow you to perform tasks, for example, updating the Device Profile.
  • Page 64 IQ 150S/250S 5: Communication Performing Tasks You can perform tasks from either the Device Profile screen Buttons or from the Title Bar. The screen Buttons and their functions are as follows: •·Update Device: Click to send the current settings to the meter.
  • Page 65 IQ 150S/250S 5: Communication •·Load Profile: Click to load a previously saved Device Profile Settings file. You will see the Load Programmable Settings window, shown below. Select the saved Device Profile you want and click Open. The settings from that file will now appear in the Settings screens;...
  • Page 66 IQ 150S/250S 5: Communication 3. Valid Communication Settings are as follows: COM2 (RS485) Address (1-247) Protocol (Modbus RTU, Modbus ASCII or DNP) Baud Rate (9600 to 57600) Response Delay (0-750 msec) 4. When changes are complete, click the Update Device button to send the new profile to the meter.
  • Page 67 IQ 150S/250S 5: Communication Additional Settings for the IQ250S CT, PT Ratios and System Hookup The screen fields and acceptable entries are as follows: CT Ratios CT Numerator (Primary): 1 - 9999 CT Denominator (Secondary): 5 or 1 Amp NOTE: This field is display only.
  • Page 68 IQ 150S/250S 5: Communication PT Multiplier: 1, 10, 100, or 1000 Voltage Full Scale: Calculations based on selections. Click Recalculate to see the result of changes. System Wiring 3 Element Wye; 2.5 Element Wye; 2 CT Delta Phases Displayed A, AB, or ABC...
  • Page 69 IQ 150S/250S 5: Communication 345,000/69 Volts: Pt-n value is 345, Pt-d value is 69, Pt-Multiplier value is 1000 NOTE: Settings are the same for Wye and Delta configurations. Time Settings Use this setting to enable or disable Daylight Savings Time for the IQ 250S, and to set the begin- ning and ending times for Daylight Savings Time.
  • Page 70 IQ 150S/250S 5: Communication System Settings From the Tree Menu, click General Settings>System Settings. From this screen, you can do the following: • Enable or Disable Password for Resetting and/or Configuration: click the radio button next to Yes or No. Enabling Password protection prevents unauthorized tampering with devices.
  • Page 71 IQ 150S/250S 5: Communication 2. Retype the password. 3. Click Change. The new password is saved and the meter restarts. NOTE: If Password Protection has already been enabled for configuration and you attempt to change the password, you will see the Enter Password screen (shown below) after you click Change.
  • Page 72 IQ 150S/250S 5: Communication Display Configuration The settings on this screen determine the display configuration of the meter’s faceplate. The screen fields and acceptable entries are as follows: • Phases Displayed: A; A and B; A, B, and C. This field determines which phases display on the faceplate.
  • Page 73 IQ 150S/250S 5: Communication • Load Bar Custom Configuration: Click this bar to add Current scaling. Additional fields open on the screen - see the figure below. Enter the Current scale you want to use, The Primary Full Scale field will reflect your entry (as it says on the screen, Primary Full Scale Current for the Load Bar is equal to the Current scale multiplied by the CT multiplier.
  • Page 74 IQ 150S/250S 5: Communication To calculate the speed at which the energy will rollover, you must know the Energy Full Scale, which is computed from the CT and PT Full Scale values (see Section 9.2.4.1). The formula for calculating Energy Full Scale is:...
  • Page 75 IQ 150S/250S 5: Communication • Sliding demand functions like multiple, overlapping Fixed demand. You define the subintervals at which an average of demand is calculated. An example of Sliding demand would be a 15- minute Demand block using 5-minute subintervals, thus providing a new demand reading every 5 minutes, based on the last 15 minutes.
  • Page 76 IQ 150S/250S 5: Communication NOTE: Your selection in the Energy Settings fields determines the precision of energy stored for display and polling. Refer to the Functional Overview at the beginning of this section for more information. • Power Settings: Power Scale: Auto; unit; kilo (K); Mega (M) Apparent Power (VA) Calculation Method: Arithmetic Sum or Vector Sum •...
  • Page 77 1. Click TLC Calculator to find the values to enter into the Percent Loss fields. The TLC Calculator button launches an Excel Spreadsheet that makes the calculations for you once you enter the required data. WARNING! Eaton Meter Configuration Software automatically launches the Excel Spreadsheet IM02601006E www.eaton.com...
  • Page 78 IQ 150S/250S 5: Communication when you click the TLC Calculator button. If you do not have Excel software installed on your computer, a Warning message is displayed instead of the worksheet. EXCEL NOTE: For most Excel users, the spreadsheet does run until you give the application per- mission to run the Macros contained in the sheet.
  • Page 79 IQ 150S/250S 5: Communication Configuring Limits (IQ 250S) Use this screen to assign Limits for the meter. Functional Overview for Limits: Limits are transition points used to divide acceptable and unacceptable measurements. When a value goes above or below the limit, an out-of-limit condition occurs. You can set and configure up to eight Limits for the IQ 250S meter.
  • Page 80 IQ 150S/250S 5: Communication The bottom of the screen shows the Full Scale values for: • Voltage • Current • Frequency • Power • Power Total • Power Factor • Phase Angles 1. Select a limit by double-clicking on the Assigned Channel field.
  • Page 81 IQ 150S/250S 5: Communication Examples: Above Setpoint = 110%; Below Setpoint = 90% (Out of Limit above 132V);(Out of Limit below 108V) Above Return Hysteresis = 105%; Below Return Hysteresis = 95% (Stay out of Limit until below 126V)(Stay out of Limit until above 114V)
  • Page 82 IQ 150S/250S 5: Communication Configuring Historical Logs (IQ250S) Use this setting to select the parameters to be stored in each of the IQ 250S meter's three Histori- cal Logs. Functional Overview of Historical Logs: Having three historical logs affords you the flexibility of programming each log with unique param- eters.
  • Page 83 IQ 150S/250S 5: Communication From the Tree Menu, click Trending Profiles>Historical Log Profile (1-3). This screen lets you select items to be stored in the historical log you selected. The Group field determines the items that are available for selection.
  • Page 84 IQ 150S/250S 5: Communication you make selections on the screen. The total number of bytes available per log record is approxi- mately 234. Configuring Historical Log Sectors (IQ250S) Use this setting to increase or decrease the amount of records each of the IQ 250S meter's three Historical logs can store, and the duration each log can run, before becoming filled.
  • Page 85 IQ 150S/250S 5: Communication 2. You will see a line with arrows on each side. Drag the line in either direction to increase or decrease the log allocation. The display fields for the logs will reflect any changes you make to the allocation.
  • Page 86 • Only one person at a time can download a log. If someone else is downloading a log, it will be unavailable until the download is complete. • Retrieve logs as often as you want. Each time you retrieve a log file, Eaton Meter Configuration Software appends only the newest records and captures to the existing database.
  • Page 87 • Retrieve logs from a connected meter, as shown in the previous section. • Click the Open Log icon from the Eaton Meter Configuration Software’s Main screen. The Retrieved Logs directory opens, allowing you to pick a previously stored log file.
  • Page 88 IQ 150S/250S 5: Communication • If you want to view a previously retrieved log, click either Meter button (1 or 2). Log Viewer opens a window prompting you to select a log database (.db). See the example screen below. 2. Select the file you want and click Open.
  • Page 89 IQ 150S/250S 5: Communication 4. From the Available Data Points column, click on the data points you want to include when view- ing the log file. • To select multiple points, hold down the Ctrl key while clicking. • To select points in sequence, hold down the Shift key while clicking.
  • Page 90 IQ 150S/250S 5: Communication 7. Click OK. The time range you selected is displayed in the Log Viewer’s main screen. 8. Click on the Historical Trends button or View Data>Snapshots. Log Viewer displays trending data for the selected log file based on the time range and data points you chose. See the exam- ple screen shown below.
  • Page 91 IQ 150S/250S 5: Communication • To sort the data by Date/Time or data point, in either ascending or descending order, click the Sort button and use the pull-down menus to make your selection. See the screen shown below. 9. To display Trending data as either an XY, Circular, or Advanced graph, click the Graph button.
  • Page 92 IQ 150S/250S 5: Communication • To select multiple data points, hold down the Ctrl key while clicking. • To select data points in sequence, hold down the Shift key while clicking. NOTE: Only six data points in total can be graphed at one time. If there are two open log files, you can only select three data points per file.
  • Page 93 IQ 150S/250S 5: Communication XY Graph Advanced Graph IM02601006E www.eaton.com 5-43...
  • Page 94 IQ 150S/250S 5: Communication The following instructions pertain to all of the graphs: • To change the starting point of the graph, choose a new date/time segment from the Starting Date/Time to View pull-down menu. • To change the amount of time represented on the graph, enter a value in the Number of Days to View field and press Enter or click on the Redraw button.
  • Page 95 IQ 150S/250S 5: Communication NOTES: • The Advanced Graph also has a Color button which opens the Color Assignments screen. • The Color Assignments screen is slightly different for the Advanced Graph. • The small squares under the Color heading represent the color currently assigned to each component of the graph.
  • Page 96 IQ 150S/250S 5: Communication • Click the Out of Limit button to view the Limits log (you need to download this log or select an already downloaded log first. See the instructions beginning on page 5-35). • Click the System Events button to view the System Events log.

  • Page 97: 4: Polling The Iq 150S/250S Submeter

    5: Communication 5.2.4: Polling the IQ 150S/250S Submeter The Real Time Poll features of Eaton Meter Configuration software are used to continuously view instantaneous values within an IQ 150S/250S meter. The software provides tabular views of metered values, circuit measurements, interval data, and pulse data.
  • Page 98 Click Real-Time Poll>Real Time Readings>Instantaneous Polling. You will see the screen shown below. NOTE: This screen capture is for an IQ 150S meter. If you are connected to an IQ 250S meter you won’t see the THD% section of the screen.
  • Page 99 This screen displays the maximum and minimum values and the time of their occurrence for all of the IQ 150S/250S Real-Time readings. Use the scroll bar to view readings not displayed on the screen. • Click Copy to copy the readings to the clipboard. You can then paste them into another docu- ment, for example, an Excel file.
  • Page 100 IQ 150S/250S 5: Communication Uncompensated and Short Term Max and Min Readings Click Real-Time Poll>Real Time Readings>Uncompensated and Short Term Max and Min Read- ings. You will see the screen shown below. The initial display shows the uncompensated readings for the meter. Click the Short Term Maxi- mum and Minimum Voltages to see those readings.
  • Page 101 IQ 150S/250S 5: Communication Power and Energy Click Real-Time Poll>Revenue, Energy and Demand Readings>Power and Energy. You will see the screen shown below. This screen displays the power and energy for Total power and all three phases. 1. Click the tabs at the top of the screen to select the view you want: •...
  • Page 102 IQ 150S/250S 5: Communication Poll Phasors Click Real Time Poll>Power Quality>Phasors. You will see the screen shown below. The Phasors screen displays the Phase relationships of the currently connected meter. 1. To adjust the Phasor display, click Options at the bottom of the screen.You will see the screen shown below.
  • Page 103 IQ 150S/250S 5: Communication a. In the Display Angles Increasing and Phasor Rotation boxes, select either Clockwise or Counter Clockwise. b. From the pull-down menu at the bottom of the screen, select Vectors, Triangles, or Vectors and Triangles to change the graphic representation of the data.
  • Page 104 IQ 150S/250S 5: Communication Poll Limits (IQ 250S) Click Real-Time Poll>Power Quality and Alarms>Limits. You will see the screen shown below. This screen shows the current status of any Limits programmed in the Device Profile. NOTE: See instructions for configuring Limits, earlier in this chapter.

  • Page 105: 5: Using The Iq 150S/250S Tools Menu

    IQ 150S/250S 5: Communication 5.2.5: Using the IQ 150S/250S Tools Menu The Tools Menu allows you to access specific functions for the IQ 150S/250S meter. Click Tools from the Title Bar to display the Tools Menu. Accessing the Device Profile Screen Click the first option, Edit Current Device Profile, to open the Device Profile screen.
  • Page 106 IQ 150S/250S 5: Communication • Click Send to send the new date and/or time to the meter; click Cancel to close the screen. Retrieving Device Time Click Tools>Retrieve Device Time. You will see the screen shown below. This screen displays the meter’s internal time. If Daylight Savings Time is enabled, ‘DST’ displays in one of the fields to the right of the Time field.
  • Page 107 IQ 150S/250S 5: Communication Click this option to see the Device status screen for the meter. this is the same screen that dis- plays when you first connect to the meter. Flash Update Firmware Click this option to upgrade the meter’s firmware. You will see the screen shown below.

  • Page 108: 6: Performing Other Tasks With Eaton Meter Configuration

    5: Communication 5.2.6: Performing Other Tasks with Eaton Meter Configuration Software The following sections contain instructions for other tasks you can perform using the Eaton Meter Configuration software. Connection Manager Use Connection Manager to add or remove connection locations and/or devices at locations.
  • Page 109 IQ 150S/250S 5: Communication a. Click the Add button. You will see the Connection Manager Location Editor screen. On this screen, you program the Communication settings for each new location. b. Type a name for the new location. c. Click Serial Port or Network.
  • Page 110 IQ 150S/250S 5: Communication - Click Add Serial (to add a Serial Port connected device) or Add Net (to add a Network connected device) in the Devices at Location box. You can add up to 255 devices (Serial Port and/or Network connected) at one location.
  • Page 111 IQ 150S/250S 5: Communication • Address: 1 - 247 (Unique Address) • Name: Device Name • Description: (Type and Number, for example) • Protocol: Modbus RTU, ASCII, or Modbus TCP • Device Type: IQ Meter • Comm Port: 1 or 2 (Serial Port Only) •...
  • Page 112 RS232 cable is connected to the correct Com Port on the computer, and that the computer is set to use the same baud rate and protocol as the meter to which the computer is connected. Disconnecting from an IQ 150S/250S meter To disconnect from a meter or from a location, do one of the following: •...
  • Page 113 IQ 150S/250S 5: Communication Changing the Primary Device/Address Use this feature to select another meter as the primary device. 1. Click Connect>Change Primary Device/Address. You will see the screen shown below. 2. Enter the address of the device you want to designate as the new Primary Device.
  • Page 114 1. Click View>Options. You will see the screen shown below. Use this screen to access the follow- ing features: • Paths for Eaton Meter Configuration software files • Data Scan mode Use the tabs at the top of the screen to access these features.
  • Page 115 The Help menu, accessed by clicking Help in the Title Bar, allows you to: • View this manual online: click Help>this User Manual. • View information about the Eaton Meter Configuration software, including version number: click Help>About Eaton Meter Configuration Software.
  • Page 116 IQ 150S/250S 5: Communication This page intentionally left blank. IM02601006E www.eaton.com 5-66...

  • Page 117: 6: Ethernet Configuration

    PC using Telnet connections. Then you can access the submeter to perform meter functions directly through any computer on your LAN: the IQ 150S/250S meter does not need to be directly connected (wired) to these computers for it to be accessed.

  • Page 118: 1: Modbus/Tcp To Rtu Bridge Setup

    IQ 150S/250S 6: Ethernet Configuration 6.2.1: Modbus/TCP to RTU Bridge Setup 1) Network/IP Settings: Network Mode…………Wired Only IP Address .....10.0.0.1 Default Gateway ..--- not set --- Netmask ....255.255.255.0 2) Serial & Mode Settings: Protocol ....Modbus/RTU,Slave(s) attached Serial Interface ..57600,8,N,1,RS232,CH1 3) Modem/Configurable Pin Settings: CP0..! Defaults (In) CP1..! GPIO (In)

  • Page 119: Configure Network Module

    Select Command or parameter set (1..6) to change: 6.3: Configure Network Module These procedures detail how to set up the IQ 150S/250S meter on the Network Module. Only one person at a time can be logged into the network port. This eliminates the possibility of several people trying to configure the Ethernet interface simultaneously.

  • Page 120: 1: Configuration Requirements

    You will use this Ethernet adapter to access the IQ 150S/250S meter's Network Module. You may have to configure the Ethernet adapter in order to use it with the IQ 150S/250S meter's Network Module, using the instructions in Section 6.4.2.

  • Page 121: 2: Configuring The Ethernet Adapter

    Connections. You will see a screen like the one shown below. 2. Right click on the Local Area Network connection you will be using to connect to the IQ 150S/ 250S submeter, and select Properties from the pull-down menu. You will see the screen shown on the next page.
  • Page 122 IQ 150S/250S 6: Ethernet Configuration 3. Select Internet Protocol [TCP/IP] from the middle of the screen and click the Properties button. You will see the screen shown below. IM02601006E www.eaton.com...
  • Page 123 IQ 150S/250S 6: Ethernet Configuration 4. Click the Use the Following IP Address radio button. The screen changes to allow you to enter the IP Address and Subnet Mask. a. Enter 10.0.0.2 in the IP Address field. b. Enter 255.255.255.0 in the Subnet Mask field.

  • Page 124: 3: Detailed Configuration Parameters

    IQ 150S/250S 6: Ethernet Configuration 6.3.3: Detailed Configuration Parameters Certain parameters must be configured before the Ethernet interface can function on a network. The following procedure can be locally or remotely configured. Use a Telnet connection to configure the unit over the network. The Ethernet interface's configura- tion is stored in meter memory and is retained without power.

  • Page 125: 4: Setup Details

    IQ 150S/250S 6: Ethernet Configuration Serial Number 5415404 MAC Address 00:20:4A:54:3C:2C Software Version V01.2 (000719) Press Enter to go into Setup Mode 4. Press Enter again, quickly. 5. After entering Setup Mode (confirm by pressing Enter), you can configure the parameters for the software you are using by entering one of the numbers on the Change Setup Menu, or you can confirm default values by pressing Enter.
  • Page 126 IQ 150S/250S 6: Ethernet Configuration Use serial connector (1=CH1 2=CH2) (1) ? 1 Interface Type (1=RS232 2=RS422/RS485+4-wire 3=RS485+2-wire) (1) ? 1 Enter serial parameters (57600,8,N,1) 57600, 8, N, 1 Modem/Configurable Pin Settings (3) (Make sure these settings match those shown in Sec- tion 6.2.1.)

  • Page 127: 1: Encryption Key

    Swap 4x/0H to get 3x/1x (N) ? N Local slave address for GPIO (0 to disable, or 1..255) (0) ? 0 WLAN Settings Detail (6) (The settings shown are recommended by Eaton for use with IQ 150S/250S submeter.) Topology: 0=Infrastructure, 1=Ad-Hoc <1> ? 0 Network name <SSID>...
  • Page 128 IQ 150S/250S 6: Ethernet Configuration WEP Key Provider Steps 1. Input 26 alphanumeric characters as your Passphrase. PASSPHRASE TO HEXADECIMAL WEP KEYS Enter the passphrase below. 1009egbck001036ab Generate keys IMPORTANT! Remember your Passphrase. 2. Click the Generate Keys button. Your Hexadecimal WEP Keys appear.

  • Page 129: Network Module Hardware Initialization

    IQ 150S/250S 6: Ethernet Configuration 6.4: Network Module Hardware Initialization If you don't know your current Network Module settings, or if the settings are lost, you can use this method to initialize the hardware with known settings you can then work with.
  • Page 130 IQ 150S/250S 6: Ethernet Configuration This page intentionally left blank. IM02601006E www.eaton.com 6-14...

  • Page 131: 7: Using The Submeter

    7: Using the Submeter 7.1: Introduction The IQ 150S/250S submeter can be configured and a variety of functions can be accomplished by using the Elements and the Buttons on the submeter face. This chapter reviews front panel navigation. See Appendix A for complete Navigation maps.

  • Page 132: B: Understanding Submeter Face Buttons

    IQ 150S/250S 7: Using the Submeter 7.1.B: Understanding Submeter Face Buttons Menu Enter MENU ENTER VOLTS L-N VOLTS L-L AMPS WNARP VA/Hz 0000 VARh 120%- 90%- 60%- Wh Pulse 30%- KILO Down Right MEGA %LOAD Figure 7.2: Faceplate with Buttons...
  • Page 133 • Error screen (if an error exists) After startup, if auto-scrolling is enabled, the IQ 150S/250S meter scrolls the parameter readings on the right side of the front panel. The Kilo or Mega LED lights, showing the scale for the Wh, VARh and VAh readings.

  • Page 134: 2: Using The Main Menu

    %LOAD Figure 7.3: Display Showing Watt-hr Reading The IQ 150S/250S meter continues to provide scrolling readings until one of the buttons on the front panel is pressed, causing the meter to enter one of the other Modes. 7.2.2: Using the Main Menu 1.

  • Page 135: 3: Using Reset Mode

    IQ 150S/250S 7: Using the Submeter 2. Press the Enter button from the Main Menu to view the Parameters screen for the mode that is currently active. 7.2.3: Using Reset Mode Reset mode has two options: • Reset: Demand (rStd): resets the Max and Min values.

  • Page 136: 4: Entering A Password

    IQ 150S/250S 7: Using the Submeter 7.2.4: Entering a Password If Password protection has been enabled in the software for reset and/or configuration (see Chapter 5 for more information), a screen appears requesting a password when you try to reset the meter and/or configure settings through the front panel.

  • Page 137: 5: Using Configuration Mode

    IQ 150S/250S 7: Using the Submeter 7.2.5: Using Configuration Mode Configuration mode follows Reset: Energy on the Main Menu. To access Configuration mode 1. Press the Menu button while the meter is auto-scrolling parameters. 2. Press the Down button until the Configuration Mode option (CFG) is in the A window.
  • Page 138 IQ 150S/250S 7: Using the Submeter NOTE: When you try to change the current setting and Password protection is enabled for the meter, the Password screen appears. See Section 7.2.4 for instructions on entering a password. 7. Once you have entered the new setting, press the Menu button twice.

  • Page 139: 1: Configuring The Scroll Feature

    When in Auto Scroll mode, the meter performs a scrolling display, showing each parameter for 7 seconds, with a 1 second pause between parameters. The parameters that the meter displays have been selected through Eaton Meter Configuration software (refer to Chapter 5 for instructions).

  • Page 140: 2: Configuring Ct Setting

    IQ 150S/250S 7: Using the Submeter 7.2.5.2: Configuring CT Setting The CT Setting has three parts: Ct-n (numerator), Ct-d (denominator), and Ct-S (scaling). 1. Press the Enter button when Ct is in the A window. The Ct-n screen appears. You can either: •...

  • Page 141: 3: Configuring Pt Setting

    IQ 150S/250S 7: Using the Submeter NOTES: • The value for Amps is a product of the Ct-n value and the Ct-S value. • Ct-n and Ct-S are dictated by primary current; Ct-d is secondary current. MENU ENTER MENU ENTER...
  • Page 142 IQ 150S/250S 7: Using the Submeter b. To change the value for the PT scaling: From the Pt-S screen: Use the Right button or the Down button to choose the scaling you want. The Pt-S setting can be 1, 10, 100, or 1000.

  • Page 143: 4: Configuring Connection Setting

    IQ 150S/250S 7: Using the Submeter 7.2.5.4: Configuring Connection Setting 1. Press the Enter button when Cnct is in the A window. The Cnct screen appears. 2. Press the Right button or Down button to select a configuration. The choices are: •...
  • Page 144 IQ 150S/250S 7: Using the Submeter a. To enter the Address From the Adr screen: • Use the Down button to select the number value for a digit. • Use the Right button to move to the next digit. b. To select the Baud Rate: From the bAUd screen: Use the Right button or the Down button to select the setting you want.

  • Page 145: 6: Using Operating Mode

    IQ 150S/250S 7: Using the Submeter 7.2.6: Using Operating Mode Operating mode is the IQ150S/250S submeter’s default mode, that is, the standard front panel dis- play. After starting up, the meter automatically scrolls through the parameter screens, if scrolling is enabled.

  • Page 146: Understanding The % Of Load Bar

    7.3: Understanding the % of Load Bar The 10-segment LED bar graph at the bottom left of the IQ 150S/250S meter’s front panel pro- vides a graphic representation of Amps. The segments light according to the load, as shown in the table below.

  • Page 147: Performing Watt-Hour Accuracy Testing (Verification)

    Since the IQ 150S/250S submeter is a traceable revenue meter, it contains a utility grade test pulse that can be used to gate an accuracy standard. This is an essen- tial feature required of all billing grade meters.
  • Page 148 Table 7.1: Infrared & KYZ Pulse Constants for Accuracy Testing - Kh Watt-hour per pulse NOTES: • Minimum pulse width for the IQ 150S is 40 milliseconds; minimum pulse width for the IQ 250S is 90 milliseconds. • Refer to Chapter 2, Section 2.2, for Wh Pulse specifications.

  • Page 149: A: Iq 150S/250S Meter Navigation Maps

    A.2: Navigation Maps (Sheets 1 to 4) The IQ 150S/250S meter’s Navigation maps begin on the next page. The maps show in detail how to move from one screen to another and from one display mode to another using the buttons on the face of the meter.
  • Page 150 IQ 150S/250S A: Navigation Maps Main Menu Screens (Sheet 1) STARTUP sequence run once at meter startup: 2 lamp test screens, hardware information screen, firmware version screen, (conditional) error screens 10 minutes with no user activity sequence completed MENU MAIN MENU:...
  • Page 151 IQ 150S/250S A: Navigation Maps Operating Mode Screens (Sheet 2) See Notes 1 & 3 RIGHT RIGHT RIGHT VOLTS_LN VOLTS_LN_MAX VOLTS_LN_MIN DOWN DOWN (from any VOLTS_LN screen) See Note 1 RIGHT RIGHT RIGHT VOLTS_LL VOLTS_LL_MAX VOLTS_LL_MIN DOWN (from any VOLTS_LL screen)
  • Page 152 IQ 150S/250S A: Navigation Maps Reset Mode Screens (Sheet 3) from MAIN MENU from MAIN MENU (RSTD selected) (RSTE selected) ENTER RESET_ENERGY_NO: ENER no (blinking) RESET_MM_NO: RIGHT RIGHT no (blinking) RESET_ENERGY_YES: RIGHT RIGHT ENER yes (blinking) RESET_MM_YES: ENTER yes (blinking)
  • Page 153 IQ 150S/250S A: Navigation Maps Configuration Mode Screens (Sheet 4) See Note 1 ENTER CONFIG_MENU: SCROLL_EDIT: SCRL (blinking) SCRL DOWN or yes or no RIGHT toggle (choice blinking if edit) scroll setting DOWN ENTER MENU ENTER CONFIG_MENU: ENTER CT (blinking)
  • Page 154 IQ 150S/250S A: Navigation Maps This page intentionally left blank. IM02601006E www.eaton.com...

  • Page 155: B: Iq 150S/250S Meter Modbus Map

    The Modbus Map for the IQ 150S/250S Meter gives details and information about the possible readings of the meter and about the programming of the meter. The IQ 150S/250S can be programmed using the buttons on the face plate of the meter (Chapter 7). The meter can also be programmed using software.

  • Page 156: B.4: Floating Point Values

    IQ 150S/250S B: Modbus Map FLOAT: 32-bit IEEE floating point number spanning 2 registers. The lower-addressed register is the high order half (i.e., contains the exponent). B.4: Floating Point Values Floating Point Values are represented in the following format: Register...

  • Page 157: B.5: Retrieving Logs Using The Iq 250S Meter's Modbus Map

    IQ 150S/250S B: Modbus Map The Exponent is a value in excess 127. So, the Exponent value is 10. The Mantissa is 11000010001110110111001 binary. With the implied leading 1, the Mantissa is (1).611DB9 (hex). The Floating Point Representation is therefore -1.75871956 times 2 to the 10.

  • Page 158: B.5.1: Data Formats

    IQ 150S/250S B: Modbus Map B.5.1: Data Formats Time stamp: Stores a date from 2000 to 2099. Time stamp has a Minimum resolution of 1 second. Byte Value Year Month Hour Minute Second Range 0-99 (+2000) 1-12 1-31 0-23 0-59...

  • Page 159: B.5.3: Block Definitions

    IQ 150S/250S B: Modbus Map The limit # byte is broken into a type and an ID. Value type Limit ID 3. Historical Log 1 (2): The Historical Log records the values of its assigned registers at the pro- grammed interval.
  • Page 160 IQ 150S/250S B: Modbus Map ber of bytes for that item. By combining these two lists, the Historical Log record can be inter- preted. For example: Registers 0x03E7 and 0x03E8 are programmed to be recorded by the historical log. The matching descriptor gives the data type as float, and the size as 4 bytes. These registers pro- gram the log to record "Primary Readings Volts A-N."...
  • Page 161 IQ 150S/250S B: Modbus Map • Interval: The interval at which the Historical Log's Records are captured. This value is an enu- meration: 0x01 1 minute 0x02 3 minute 0x04 5 minute 0x08 10 minute 0x10 15 minute 0x20 30 minute...
  • Page 162 IQ 150S/250S B: Modbus Map While the Register List describes what to log, the Item Descriptor List describes how to interpret that information. Each descriptor describes a group of register items, and what they mean. Each descriptor is composed of 2 parts: •...
  • Page 163 IQ 150S/250S B: Modbus Map 0x03C8 0x1234 Signed Int, 2 byte NOTE: The sum of all descriptor sizes must equal the number of bytes in the data portion of the Historical Log record. Log Status Block: The Log Status Block describes the current status of the log in question. There is one header block for each of the logs.
  • Page 164 IQ 150S/250S B: Modbus Map • Records Used: The number of records stored in the log. This number will equal the Max Records when the log has filled. This value will be set to 1 when the log is reset. The data type is an unsigned integer from 1 - 2^32.
  • Page 165 IQ 150S/250S B: Modbus Map • Last Timestamp: Timestamp of the newest record. Log Retrieval Block: The Log Retrieval Block is the main interface for retrieving logs. It is comprised of 2 parts: the header and the window. The header is used to program the particular data the meter presents when a log window is requested.
  • Page 166 IQ 150S/250S B: Modbus Map Log Retrieval Header: The Log Retrieval Header is used to program the log to be retrieved, the record(s) of that log to be accessed, and other settings concerning the log retrieval. Registers: 0xC34F - 0xC350...
  • Page 167 IQ 150S/250S B: Modbus Map • Enable: This value sets if a log retrieval session is engaged (locked for retrieval) or disengaged (unlocked, read for another to engage). Write this value with 1(enable) to begin log retrieval. Write this value with 0(disable) to end log retrieval.
  • Page 168 IQ 150S/250S B: Modbus Map • Number of Repeats: Specifies the number of repeats to use for the Modbus Function Code 0x23 (35). Since the meter must pre-build the response to each log window request, this value must be set once, and each request must use the same repeat count. Upon reading the last register in the specified window, the record index will increment by the number of repeats, if auto-incre- ment is enabled.

  • Page 169: B.5.4: Log Retrieval

    3. Disengage the log. B.5.4.1: Auto-Increment In Eaton’s traditional Modbus retrieval system, you write the index of the block of data to retrieve, then read that data from a buffer (window). To improve the speed of retrieval, the index can be automatically incremented each time the buffer is read.

  • Page 170: B.5.4.2: Modbus Function Code 0X23

    IQ 150S/250S B: Modbus Map B.5.4.2: Modbus Function Code 0x23 QUERY Field Name Example (Hex) Slave Address Function Starting Address Hi Starting Address Lo # Points Hi # Points Lo Repeat Count RESPONSE Field Name Example (Hex) Slave Address Function...

  • Page 171: B.5.4.3: Log Retrieval Procedure

    IQ 150S/250S B: Modbus Map NOTES: • By itself this feature would not provide any advantage, as the same data will be returned RC times. However, when used with auto-incrementing, this function condenses up to 8 requests into 1 request, which decreases communication time, as fewer transactions are being made.
  • Page 172 IQ 150S/250S B: Modbus Map i.. Read the contents of the specific logs' status block [0xC737+, 16 reg] (see Log Headers). ii. Store the # of Records Used, the Record Size, and the Log Availability. iii. If the Log Availability is not 0, stop Log Retrieval; this log is not available at this time.
  • Page 173 IQ 150S/250S B: Modbus Map • If the meter Returns a Slave Busy Exception, repeat the request. • If the Window Status is 0xFF, repeat the request. • If the Window Status is 0, go to step 2b (Verify record index).

  • Page 174: B.5.4.4: Log Retrieval Example

    IQ 150S/250S B: Modbus Map B.5.4.4: Log Retrieval Example The following example illustrates a log retrieval session. The example makes the following assumptions: • Log Retrieved is Historical Log 1 (Log Index 2). • Auto-Incrementing is used. • Function Code 0x23 is not used (Repeat Count of 1).
  • Page 175 IQ 150S/250S B: Modbus Map 1. Read [0xC757, 16 reg], Historical Log 1 Header Block. 0103 C757 0010 Send: Command: Register Address: 0xC757 # Registers: --------------------------------------------------- 010320 00000100 00000064 0012 0000 Receive: 060717101511 060718101511 0000000000000000 Data: Max Records: 0x100 = 256 records maximum.
  • Page 176 IQ 150S/250S B: Modbus Map Enable: 1 (Engage log) Scope: 0 (Normal Mode) --------------------------------------------------- 0106C34F0280 (echo) Receive: NOTE: This engages the log for use on this COM Port, and latches the oldest record as record index 0. 3. Read [0xC757, 16 reg], Availability is 0.
  • Page 177 IQ 150S/250S B: Modbus Map 4. Compute #RecPerWin as (246\18)=13. Write 0x0D01 0000 0000 -> [0xC350, 3 reg] Write Retrieval Info. Set Current Index as 0. 0110 C350 0003 06 0D01 00 000000 Send: Command: Register Address: 0xC350 # Registers:...
  • Page 178 IQ 150S/250S B: Modbus Map 5. Read [0xC351, 125 reg], first 2 reg is status/index, last 123 reg is window data. Status OK. 0103 C351 007D Send: Command: Register Address: 0xC351 # Registers: 0x7D, 125 registers --------------------------------------------------- 0103FA 00000000 Receive: 060717101511FFFFFFFFFFFFFFFFFFFFFFFF 06071710160042FAAACF42FAAD1842FAA9A8 .
  • Page 179 IQ 150S/250S B: Modbus Map Volts CN: 0x42FAA9A8, float = 125.33~ . . . 13 records NOTES: • This retrieves the actual window. Repeat this command as many times as necessary to retrieve all of the records when auto-increment is enabled.
  • Page 180 IQ 150S/250S B: Modbus Map Window Status: 0 (ignore) Record Index: 0x0D = 13, start at the 14th record. ---------------------------------------------------- 0110C3510002 (command ok) Receive: NOTES: • This step manually sets the record index, and is primarily used when an out-of-order record index is returned on a read (step 6).
  • Page 181 IQ 150S/250S B: Modbus Map occurs when current index is 91 (the 8'th window). There are now 9 records available (100-91), so make Records per Window equal 9. 11. Repeat steps 5 through 10. NOTES: • Go back to step 5, where a couple of values have changed.

  • Page 182: B.6: Modbus Register Map

    • The log will automatically disengage if no log retrieval action is taken for 5 minutes. B.6: Modbus Register Map The IQ 150S and 250S meters' Modbus register maps begin on the following page. The first map is for the IQ 150S, and the second is for the IQ 250S.
  • Page 183 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments Fixed Data Section read-only Identification Block 0000 - 0007 1 - 8 Reserved none 0008 - 000F 9 - 16 Meter Serial Number ASCII 16 char...
  • Page 184 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments 0403 - 0404 1028 - 1029 Neutral Current FLOAT 0 to 9999 M amps Block Size: read-only Primary Energy Block 044B - 044C 1100 - 1101...
  • Page 185 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments 0BC1 - 0BC2 3010 - 3011 Volts C-A, Minimum FLOAT 0 to 9999 M volts 0BC3 - 0BC4 3012 - 3013 Amps A, Minimum Avg Demand...
  • Page 186 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments 0FA3 - 0FA3 4004 - 4004 Reserved 0FA4 - 0FA4 4005 - 4005 Reserved 0FA5 - 0FA5 4006 - 4006 Reserved 0FA6 - 0FA6 4007 - 4007...
  • Page 187 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments Commands Section write-only Resets Block 4E1F - 4E1F 20000 - 20000 Reset Max/Min Blocks UINT16 password 4E20 - 4E20 20001 - 20001 Reset Energy Accumulators...
  • Page 188 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments mmmmmmmm MMMMhhhh 7533 - 7533 30004 - 30004 PT multiplier & hookup UINT16 bit-mapped MMMMmmmmmmmm is PT multiplier (1, 10, 100, 1000), hhhh is hookup enumeration (0 = 3 element wye[9S], 1 = delta 2 CTs[5S], 3 = 2.5...
  • Page 189 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments 7548 - 7548 30025 - 30025 Reserved dddd = reply delay (* 50 msec) ppp = protocol (1-Modbus RTU, 2-Modbus 7549 - 7549 30026 - 30026...
  • Page 190 B: Modbus Map IQ 150S Modbus Address Units or Decimal Description Format Range Resolution Comments 9C4F - 9C4F 40016 - 40016 CT numerator UINT16 1 to 9999 none 9C50 - 9C50 40017 - 40017 CT multiplier UINT16 1, 10, 100...
  • Page 191 B: Modbus Map IQ 150S (continued) M denotes a 1,000,000 multiplier. Not used. Writing this register causes data to be saved permanently in EEPROM. If there is an error while saving, a slave device failure exception is returned and programmable settings mode automatically terminates via reset.
  • Page 192 B: Modbus Map IQ 150S This page intentionally left blank. IM02601006E www.eaton.com MM-10...
  • Page 193 Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg Meter Data Section (Note 2) Primary Readings Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-1...
  • Page 194 B: Modbus Map IQ 250S Primary Energy Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-2...
  • Page 195 B: Modbus Map IQ 250S Primary Demand Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-3...
  • Page 196 B: Modbus Map IQ 250S Uncompensated Readings Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-4...
  • Page 197 Status Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg Short term Primary Minimum Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-5...
  • Page 198 B: Modbus Map IQ 250S Primary Minimum Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-6...
  • Page 199 B: Modbus Map IQ 250S Primary Minimum Timestamp Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-7...
  • Page 200 Short term Primary Maximum Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg Primary Maximum Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-8...
  • Page 201 B: Modbus Map IQ 250S Primary Maximum Timestamp Block read-only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-9...
  • Page 202 # Reg Privileged Commands Block conditional write Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg Encryption Block read/write Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-10...
  • Page 203 B: Modbus Map IQ 250S Programmable Settings Section Basic Setups Block write only in PS update mode Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-11...
  • Page 204 Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg Log Setups Block write only in PS update mode Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-12...
  • Page 205 B: Modbus Map IQ 250S 12-Bit Readings Section 12-Bit Block read-only except as noted Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg IM02601006E www.eaton.com MM-13...
  • Page 206 Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg Log Status Block read only Decimal Description (Note 1) Format Range (Note 6) Units or Resolution Comments # Reg Alarm Log Status Block End of Map IM02601006E www.eaton.com MM-14...
  • Page 207 B: Modbus Map IQ 250S Data Formats Notes IM02601006E www.eaton.com MM-15...
  • Page 208 B: Modbus Map IQ 250S This page intentionally left blank. IM02601006E www.eaton.com MM-16...

  • Page 209: C: Iq 150S Meter Dnp Map

    Protocol. C.2: DNP Implementation PHYSICAL LAYER The IQ 150S meter can use RS485 as the physical layer. This is accomplished by connecting a PC to the meter using the meter’s RS485 connection (see Chapter 5). RS485 RS485 provides multi-drop network communication capabilities. Multiple meters can be placed on the same bus, allowing for a Master device to communicate with any of the other devices.

  • Page 210: C.3: Data Link Layer

    DNP 3.0 allows for addresses from 0 - 65534 (0x0000 - 0xFFFE) for individual device identifica- tion, with the address 65535 (0xFFFF) defined as an all stations address. IQ 150S/250S meters' addresses are programmable from 0 - 247 (0x0000 - 0x00F7), and address 65535 (0xFFFF) is recognized as the all stations address.

  • Page 211: C.4: Transport Layer

    IQ 150S C: DNP Map C.4: Transport Layer The Transport Layer as implemented on IQ 150S meters is subject to the following considerations: Transport Header Multiple-frame messages are not allowed for IQ 150S meters. Each Transport Header should indicate it is both the first frame (FIR = 1) as well as the final frame (FIN = 1).

  • Page 212: C.5.1: Object And Variation

    Application Data contains information about the Object and Variation, as well as the Qualifier and Range. C.5.1: Object and Variation The following Objects (Obj.) and Variations (Var.) are supported by IQ 150S meters: • Binary Output Status (Object 10, Variation 2) † • Control Relay Output Block (Object 12, Variation 1) •...
  • Page 213 Change to Modbus RTU Protocol State (Point 1) IQ 150S meters can of change from DNP Protocol to Modbus RTU Protocol. This enables the user to update the Device Profile of the meter (this does not change the meter’s Protocol setting). A meter reset brings communication back to DNP.
  • Page 214 Change to MODBUS RTU Protocol Energy Reset (Point 0) As stated previously, IQ 150S meters accumulate power generated or consumed over time as Hour Readings, which measure positive VA Hours and positive and negative W Hours and VAR Hours. These readings may be reset using Point 0.
  • Page 215 Analog Inputs support the following functions: Read (Function 1) A READ request for Variation 0 is responded to with Variation 4. Analog Inputs are used to communicate the following data measured by IQ 150S meters: • Health Check • Phase-to-Neutral Voltage •...
  • Page 216 • PT Numerator, Multiplier, Denominator Health Check (Point 0) The Health Check point is used to indicate problems detected by the IQ 150S meter. A value of zero (0x0000) indicates the meter does not detect a problem. Non-zero values indicate a detected anomaly.
  • Page 217 IQ 150S C: DNP Map Phase-to-Neutral Voltage (Points 1 - 3) Point Reading Phase AN Voltage Phase BN Voltage Phase CN Voltage These points are formatted as 2's complement fractions. They represent a fraction of a 150V Sec- ondary input. Inputs of above 150V Secondary are pinned at 150V Secondary.
  • Page 218 IQ 150S C: DNP Map Point Reading Total VAR These points are formatted as 2's complement fractions. They represent a fraction of 4500W Sec- ondary in normal operation, or 3000W Secondary in Open Delta operation. Inputs above/below +/- 4500 or +/-3000W Secondary are pinned at +/-4500 or +/-3000W Secondary, respectively.
  • Page 219 IQ 150S C: DNP Map Maximum Demands of Total Power (Points 15 - 19) Point Reading Maximum Positive Demand Total Watts Maximum Positive Demand Total VARs Maximum Negative Demand Total Watts Maximum Negative Demand Total VARs Maximum Average Demand VAs These points are formatted as 2's complement fractions.
  • Page 220 Numerator divided by Denominator is the ratio of Primary to Secondary. IQ 150S meters typically use Full Scales relating Primary Current to 5A and Primary Voltage to 120V. However, these Full scales can range from mAs to thousands of kAs, and from mVs, to thousands of kVs.
  • Page 221 Class 0 Data supports the following functions: Read (Function 1) A request for Class 0 Data from a IQ 150S meter returns three Object Headers. Specifically, it returns 16-Bit Analog Input Without Flags (Object 30, Variation 4), Points 0 - 31, followed by 32-Bit Counters Without Flags (Object 20, Variation 5), Points 0 - 4, followed by Binary Output Status (Object 10, Variation 2), Points 0 - 1.
  • Page 222 IQ 150S C: DNP Map This page intentionally left blank. IM02601006E www.eaton.com C-14...
  • Page 223 IQ 150S Object Point Var Description Format Range Multiplier Units Comments Binary Output States Read via Class 0 only 2 Reset Energy Counters BYTE Always 1 none 2 Change to Modbus RTU BYTE Always 1 Protocol none Control Relay Outputs...
  • Page 224 IQ 150S Object Point Var Description Format Range Multiplier Units Comments 5 Watts, 3-Ph total SINT16 -32768 to +32767 (4500 / 32768) 5 VARs, 3-Ph total SINT16 -32768 to +32767 (4500 / 32768) 5 VAs, 3-Ph total SINT16 0 to +32767...
  • Page 225 Link Status Table D.1: Supported Link Functions [dst] and [src] are the device address of the IQ 250S meter and Master device, respectively. Refer to Section D.7 for more detail on supported frames for the data link layer. IM02601006E www.eaton.com...
  • Page 226 Modbus RTU frames only. To make this port go back to DNP protocol, the unit must be powered down and up. Section D.7 shows the con- structed frame to perform DNP to Modbus RTU protocol change. IM02601006E www.eaton.com...
  • Page 227 Count 0, On 0 msec, Off 1 msec ONLY. Reset Demand none Responds to Function 5 Counters (Max (Direct Operate), Quali- / Min) fier Code 17x or 28x, Control Code 3, Count 0, On 0 msec, Off 1 msec ONLY. IM02601006E www.eaton.com...
  • Page 228 Values above 300V secondary read 32767. Volts B-C sint16 0 to 32767 (300 / 32768) Volts C-A sint16 0 to 32767 (300 / 32768) Amps A sint16 0 to 32767 (10 / 32768) Values above secondary read 32767. IM02601006E www.eaton.com...
  • Page 229 Angle, Phase B sint16 -1800 to degree Current +1800 Angle, Phase C sint16 -1800 to degree Current +1800 Angle, Volts sint16 -1800 to degree +1800 Angle, Volts sint16 -1800 to degree +1800 Angle, Volts sint16 -1800 to degree +1800 IM02601006E www.eaton.com...
  • Page 230 All numbers are in hexadecimal base. In addition the following symbols are used. 16 bit frame destination address 16 bit frame source address DNP Cyclic redundant checksum (polynomial transport layer data sequence number application layer data sequence number IM02601006E www.eaton.com...
  • Page 231 16 pt 17 pt 18 pt 19 pt 20 pt 21 pt 23 pt 24 pt 25 pt 26 pt 27 pt 28 pt 29 pt 31 pt 32 0A 02 00 02 pt0 pt1 pt2 crc IM02601006E www.eaton.com...
  • Page 232 05 64 1C 44 Cx Cy 81 int. ind. 0C 01 28 01 02 00 00 03 00 00 crc 00 00 01 00 00 00 Error Reply Reply 05 64 0A 44 src Cx Cy 81 int. ind. crc IM02601006E www.eaton.com...
  • Page 233 The largest acceptable request has a length field of 26, i.e. link header plus 21 bytes more, not counting checksums. The largest possible response has 7 blocks plus the link header. Restart All Stations These 2 bits are reported in accordance with standard practice. IM02601006E www.eaton.com...
  • Page 234 IQ 250S D: DNP Map This page intentionally left blank. IM02601006E www.eaton.com D-10...

This manual is also suitable for:

Iq 250s

Table of Contents
