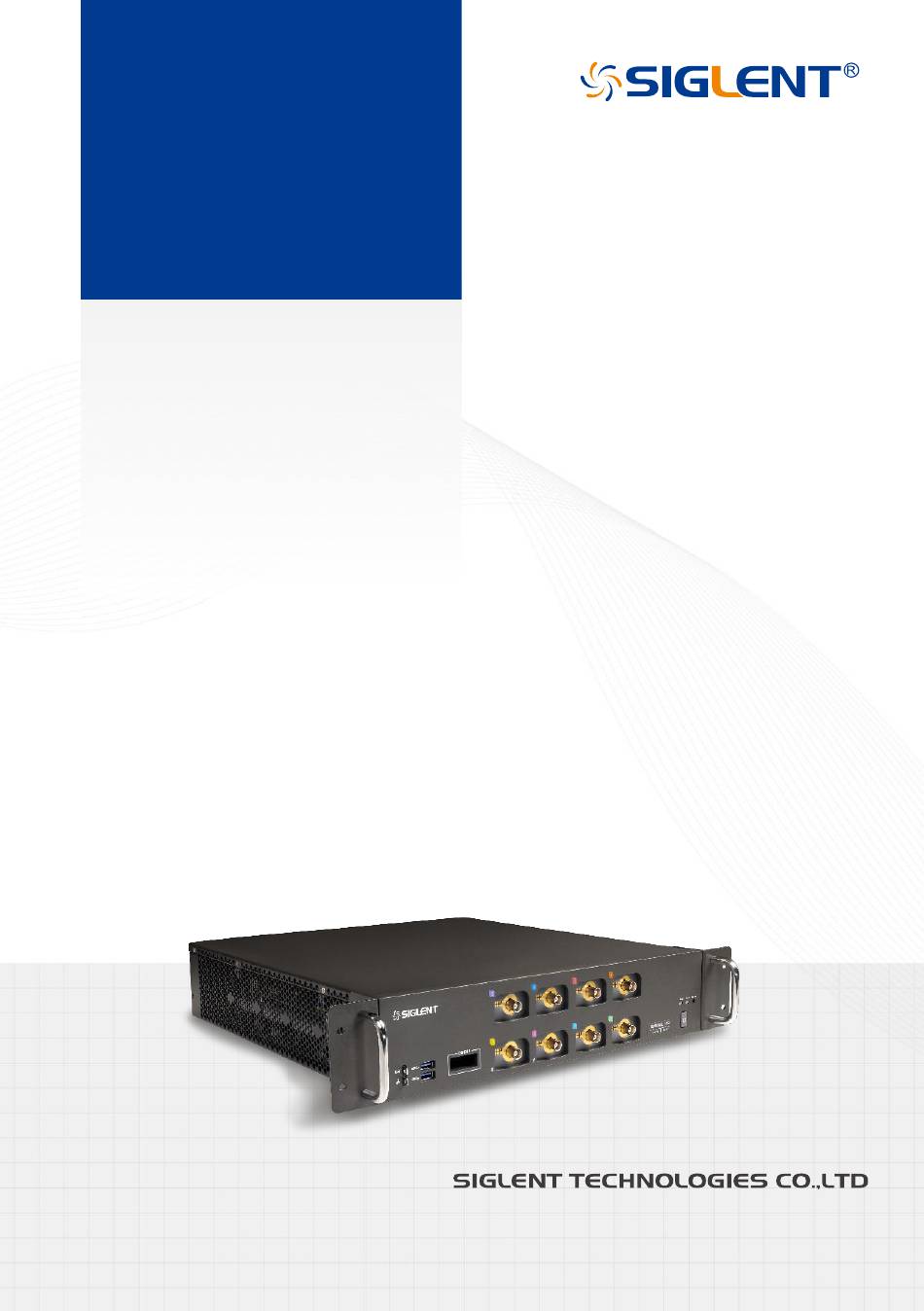

- Page 1 SDS6000L Series Low Profile Digital Storage Oscilloscope Quick Start EN01B...
-
Page 3: Copyright Information
Declaration SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at the company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 4: Table Of Contents
Contents COPYRIGHT INFORMATION ................1 GENERAL SAFETY SUMMARY ................3 GENERAL CARE AND CLEANING ..............5 GENERAL INSPECTION ..................6 MECHANICAL DIMENSIONS ................7 FRONT PANEL ....................8 BACK PANEL ...................... 9 PROBE COMPENSATION ................. 10 QUICK START ....................11 USER INTERFACE .................... -
Page 5: General Safety Summary
General Safety Summary Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified. Use the Proper Power Cord Only the power cord designed for the instrument and authorized by local government regulations should be used. - Page 6 the cable to release a static charge before connecting. Maintain Adequate Ventilation Inadequate ventilation may cause an increase in temperature, which may eventually damage the instrument. Maintain suitable ventilation and inspect the fan and intake regularly. Avoid Exposed Circuits and Components Do not touch exposed contacts or components when the instrument's power is on.
-
Page 7: General Care And Cleaning
General Care and Cleaning Care Do not store or leave the instrument in direct sunshine for extended periods. To avoid damage to the instrument or probes, please do not expose them to fog, liquid, or solvents. Cleaning Please perform the following steps to clean the instrument and probes. Disconnect the instrument from all power sources and then clean it with a soft damp cloth. -
Page 8: General Inspection
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement if the instrument has been damaged in shipment. Inspect the instrument If there are instruments found damaged, defective, or have failed any electrical and / or mechanical tests, please contact SIGLENT. -
Page 9: Mechanical Dimensions
Mechanical Dimensions 4-channel model 8-channel model Front View Top View SDS6000L Quick Start... -
Page 10: Front Panel
Front Panel Analog Input Connectors 1 MΩ: ≤ 400 Vpk(DC + AC), DC~10kHz; 50 Ω: ≤ 5 Vrms, ±10V Peak Digital Input Connector USB 3.0 Host Ports Connect to USB storage devices for data transfer or USB mouse / keyboard for control Probe Compensation / Ground Terminal Power Standby Button Acquisition status and LAN status LEDs... -
Page 11: Back Panel
Back Panel AC Power Input and Power Switch SD Card Slot HDMI Video Output Connect the port to an external monitor. The resolution is 1280 * 800 1000M LAN Port Connect the port to the network for remote control USB 2.0 Hosts Connect with a USB storage device or USB mouse / keyboard USB 2.0 Device Connects with a PC for remote control Auxiliary Out Outputs the trigger indicator. -
Page 12: Probe Compensation
Probe Compensation All oscilloscope probes should be properly compensated before their first use with the oscilloscope. A non-compensated or inadequately compensated probe may cause inaccurate measurement. The following steps illustrate the proper probe compensation procedure. Use the probe to connect the CH1 Input Terminal and the Compensation Signal Output Terminal on the front panel. -
Page 13: Quick Start
Quick Start To Install the Rackmount Flange Kit Install the handles to the left and right rack flange using four M4×8 screws. Install the rack flanges to the instrument using six M3×6 screws. Connecting to Power Supply The standard power supply for the instrument is 100 ~ 240 V, 50 / 60 Hz, or 100 ~ 120 V, 400 Hz. - Page 14 Connecting to a Display and Mouse To view the displayed waveforms and interact with the oscilloscope, you can easily connect an external HDMI monitor to the HDMI output on the rear panel of the instrument using an HDMI cable. Connect a mouse to the instrument and it can then be used as a stand-alone oscilloscope.
- Page 15 Connecting to a LAN Connect the 1000M LAN port to the LAN using a cable. Perform Utility > Menu > I/O > LAN Config , or click the icon in the lower right corner of the display to set the LAN. The LAN Config dialog box is as below.
- Page 16 WebServer A built-in web server provides an approach to interact with the oscilloscope by a web browser. It doesn’t require any additional software to be installed on the computer. Set the IP address of the oscilloscope in the browser address bar, and then the user can browse and control the oscilloscope on the web.
- Page 17 Below is the instrument control interface over WebServer: Display and control area of the instrument. The display in this area is a copy of the instrument display. Using the mouse to operate in the area is equivalent to directly operating on the display of the instrument. Click here to perform a screenshot Click here to save the waveform data as a bin file and download it to the local computer...
-
Page 18: User Interface
User Interface Menu Bar Grid Area displays the waveform traces. Traces can be moved by dragging them Channel descriptor boxes include analog channels (C1 ~ C8) , zoom traces (Z1~Z8) , math traces (F1-F4) , Memory traces (M1~M4) , reference (RefA~RefG) and digital channels (D). - Page 19 Channel Descriptor Box Channel Index Coupling and Input Impedance Vertical Scale Vertical Offset Bandwidth Information Probe Attenuation Factor Timebase and Trigger Descriptor Boxes Trigger delay Horizontal scale (timebase) # Samples Sample Rate Trigger source Trigger coupling Trigger mode Trigger level Trigger type Trigger slope SDS6000L Quick Start...
- Page 20 Dialog Box The dialog box on the right side of the screen is the main area for setting the parameters of the selected function. Title bar. Clicking the bar can hide the dialog box, and clicking again can open the dialog box Parameter setting area Scroll bar.
- Page 21 To Set Parameters Several different ways are provided to set parameters: Switch – Sets parameters with two states, such as to enable or disable a function. Click the switch region to change from one state to the other. List – Sets parameters with more than two options, such as the coupling mode of channels.
- Page 22 Mouse Control Waveforms, cursors, and trigger levels can be adjusted by the mouse quickly. Drag the waveform left and right to move it on the horizontal axis Drag the waveform up and down to move it on the vertical axis Click and drag the cursor to move it Click and drag the cursor information region to move the pair of cursors...
-
Page 23: Basic Operations
Basic Operations Turn On / Disable a Channel Click the + button and then select the expected channel to turn it on, and its channel descriptor box and the dialog box will appear on the display. Click the channel descriptor box and then click the Off button to disable it. Vertical System Channel Setup Click the channel descriptor box, a quick dialog will pop up. - Page 24 Activating a channel in the quick dialog of the channel recalls the channel dialog box, displaying more parameters: Turn channel on/off Coupling (DC, AC, or GND) Bandwidth limit (Full, 200 MHz, or 20 MHz) Probe attenuation (1X, 10X, 100X or custom) Set the label text.
- Page 25 Horizontal System Click the timebase descriptor box to display a quick dialog box. Timebase and Trigger Delay can also be set in this dialog box. Set the horizontal scale (timebase) by the virtual keypad ▲ to increase and ▼ to decrease the horizontal scale Set the trigger delay by the virtual keypad...
- Page 26 Acquisition System Click on the quick menu of the timebase settings, or click the menu bar Acquire > Menu to recall the Acquire dialog box on the right side. Select the interpolation mode Select the Acq mode Select the acquisition mode (Normal / Peak / Average / Hi-Res) Select the Memory Management mode (Auto, Fixed Sample Rate, and Fixed...
- Page 27 Zoom Zoom mode can be enabled by Acquire > Zoom , or by adding a Zx trace as an active channel. In Zoom mode the grid area is divided into two areas. The main window appears on the top and the zoom window on the bottom. The region without the gray background in the main window is the portion of the trace that is magnified in the zoom window.
- Page 28 Indicators Relative to Trigger Trigger level Indicator Horizontal 0 position Horizontal position Indicator (offscreen) Indicator Select trigger type Select the trigger source Select the trigger slope (When the trigger type is "Edge", "Slope" and other specific types) Set holdoff (None / Time / Events) Set trigger coupling mode (DC / AC / LF Reject / HF Reject) Enable / disable Noise Rejection.
- Page 29 Math Click + > Math > Fx to create a math trace and open math setup dialog box Math trace Math setup dialog box Selects the trace (F1 ~ F4) Selects the operator and source (C1~C8, Z1~Z8, F1~F4, M1~M4) SDS6000L Quick Start...
- Page 30 Measure & Statistics Click Measure > Menu to open the measure setup dialog box Measurement parameters and statistics display area. If select the mode as “Simple”, the “Simple” parameter area is displayed. Click the icon in the lower-right corner of this area to reset the statistics Measure dialog box SDS6000L Quick Start...
- Page 31 Cursors Cursors set measurement points on the Vertical or Horizontal axis of a trace (or both). For more information please refer to the User Manual. The display mode of cursors Following mode Fixed mode SDS6000L Quick Start...
- Page 32 Reference Waveforms Reference waveforms (REFA ~ REFH) are displayed data stored in the non- volatile memory. They can be recalled to the display for comparison with other traces. Perform + > Ref > REFx to open or set a reference waveform. Select the location of the reference (REFA ~ REFH) Select the source (C1~C8, F1~F4)
- Page 33 Memory Traces Analog channels, zoom, math, memory waveforms, and waveforms in files can be imported to available memory waveforms (M1 / M2 / M3 / M4) and displayed on the screen for comparison with the current waveforms. Differing from reference traces which are displayed data, the memory traces are in the format of raw data, which can be used as the source of Math and Decoding functions and can provide more accurate measurements than a reference waveform.
- Page 34 Save/Recall Click Utility > Save / Recall to save / recall a setup, picture, waveform data or reference waveform. Choose Save or Recall operation Select the object type Recall the File Manager for further operations File Manager Quick Screenshot Utility > Print SDS6000L Quick Start...
- Page 35 Calibration The oscilloscope is calibrated at the factory before being shipped. The calibration is run at 23°C (± 2°C) and is valid for temperatures 23 ± 5°C. Within this temperature range, the oscilloscope will meet all specifications once warmed up. Warm up the oscilloscope for at least 20 minutes before each use or before performing self-calibration.
- Page 36 Since its first oscilloscope was launched in 2005, SIGLENT has become the fastest growing manufacturer of digital oscilloscopes. We firmly believe that today SIGLENT is the best value in electronic test Headquarters: & measurement. SIGLENT Technologies Co., Ltd Add: Bldg No.4 &...
