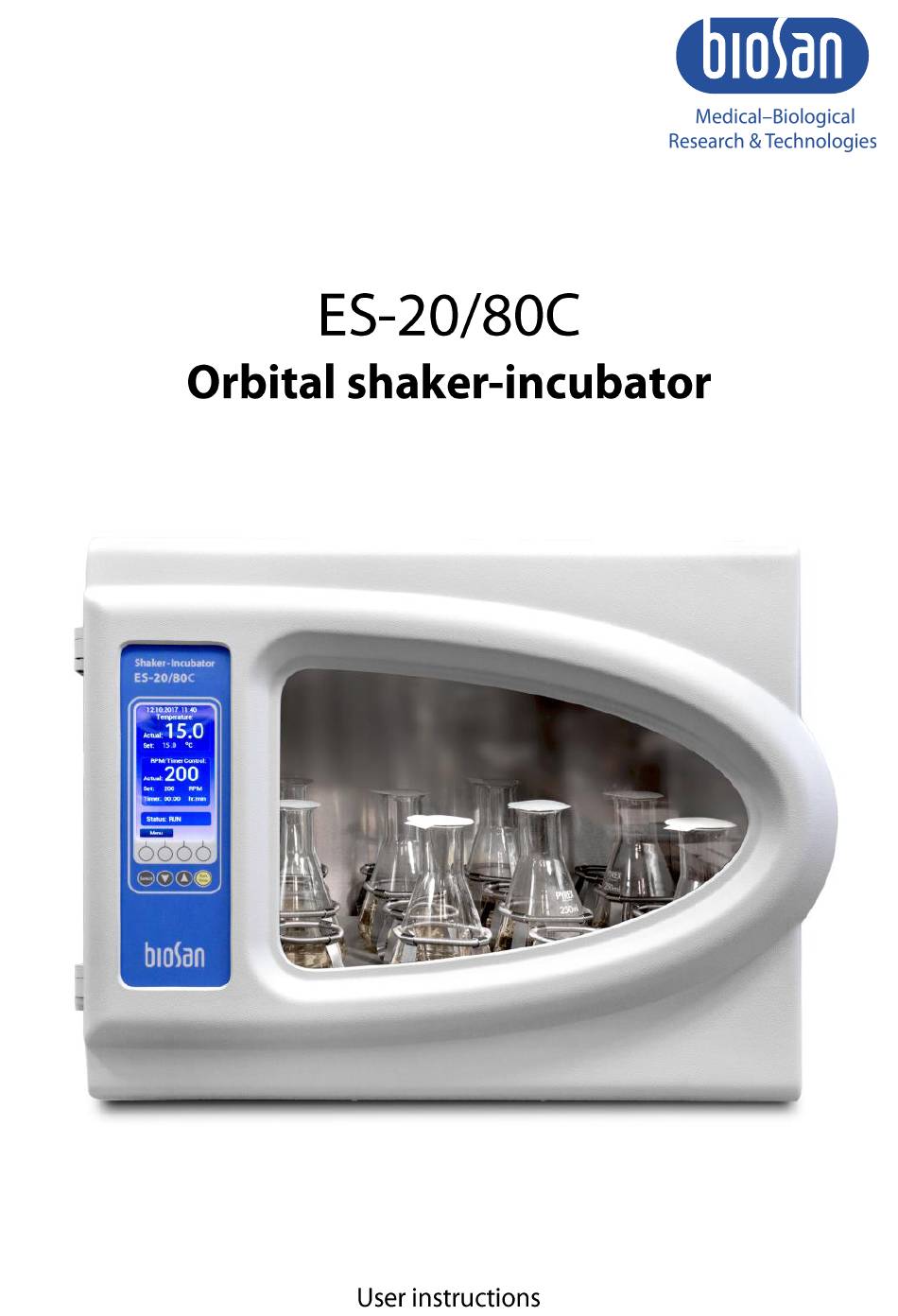

  • Page 2 If you have any feedback on our products or services, we would like to hear from you. Please send all feedback to: Manufacturer: SIA Biosan Ratsupites iela 7 k-2, Riga, LV-1067, Latvia Phone: +371 674 261 37 Fax: +371 674 281 01 www.biosan.lv...

  • Page 3: Table Of Contents

    EU Declaration of conformity .................. 19 About this edition of user instructions The current edition of the user instructions applies to the following models: Model and name Version ES-20/80C, orbital shaker-incubator V.1AD Edition 1.04 – September of 2022. Edition 1.04...

  • Page 4: Safety Precautions

    Safety precautions Symbols used in the user instructions: Caution! Make sure you have fully read and understood the present instructions before using the equipment. Please pay special attention to sections marked by this symbol. Caution! Hot surface! Incubator surface and inner camera may become hot dur- ing use.

  • Page 5: General Information

    General information ES-20/80C shaker-incubator for biotechnological and pharmaceutical laboratories is a professional category equipment. The typical applications include – microbial and cell cul- ture cultivation, protein expression, solubility studies, general mixing, as well as other various applications in the fields of biology and chemistry.

  • Page 6: Getting Started

    The warranty does not cover in-transit damage. Warranty covers only the units transported in the original package. Caution! Due to the high weight of the ES-20/80C model, its unpacking and in- stalling must be carried out by two persons.
  • Page 7 SPML TR-21/50 TR-44/15 Figure 1. Select optional accessories Setup. Note. Ensure that the unit is placed on level horizontal surface, which is able to support its weight. Note. To stack two or three units, see the section Stacking. Place the unit upon even horizontal firm and stable non-flammable surface 30 cm away from any flammable materials, and clear 20 cm around the device on all sides for ventilation.

  • Page 8: Stacking

    Washer Lock washer Hex driver Acquiring a kit. To purchase the kit, contact Biosan or your local Biosan representa- tive, with information from the section Ordering information. Getting started. 5.3.1 Unpack the kit. Unpower the units and disconnect the power cables.
  • Page 9 Figure 2. Stacking two units Figure 3. Washers on the screw Figure 6. Stacking three Figure 4. Stacking three Figure 5. Stacking three units, top level units, base level units, middle level Edition 1.04...

  • Page 10: Operation

    Operation Caution! After transportation, storage or in the case of condensation formation, and before connecting it to the electric circuit, keep the unit under room tem- perature for 2-3 hrs to dry out the unit. Without drying out, the operation of the unit may not comply with all safety requirements.
  • Page 11 After finishing the program (after the set time elapses), the platform motion stops, and the status bar shows STOP accompanied by the repetitive sound signal. Press any key to stop the signal. Caution! The chamber heating can only be stopped manually by reducing the tem- perature.
  • Page 12 6.9.4 Active Alarms. This option allows user to view and reset the list of active alarms. 6.9.5 Data Logger. Data logger features following options: View Plot T(t), View Plot RPM(t), View Plot T(t)+RPM(t), Clear log, Logger on/off. 6.9.5.1 All View Plot options use the same interface. Use Left and Right buttons to move the plot along the x axis.

  • Page 13: Specifications

    50% relative humidity at 40°C, transient overvoltages up to the II category and pollution de- gree 2. Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice.
  • Page 14 General specifications Speed control range ............50–400 RPM (increment 10 RPM) Digital time setting ..........1 min - 96 hrs (increment 1 min) / non-stop Maximum load ......................10.6 kg Orbit ........................... 20 mm Display ........................TFT LCD Data transfer ......................Bluetooth Maximum number of holders that can be fitted onto UP-168 platform: Holder FC-50...

  • Page 15: Ordering Information

    Model Version Description Catalogue number ES-20/80C V.1AD 220–240 V, 50/60 Hz, no platforms BS-010173-A01 To inquire about or order the optional accessories, contact Biosan or your local Bio- san representative. Optional accessories for ES-20/80C: Catalogue Model Description number HSP-30/100 Platform with clamps for 30 flasks of 100 ml...

  • Page 16: Care And Maintenance

    Service and maintenance. 9.1.1 If the unit is disabled (e.g., not incubating, no reaction on key and switch presses) or requires maintenance, disconnect the unit from the mains and contact Biosan or your local Biosan representative. 9.1.2 All maintenance and repair operations (except listed below) must be performed only by qualified and specially trained personnel.

  • Page 17: Storage And Transportation

    (figure 9). Check and replace with a correct fuse, if necessary, see table below: Model & version Fuse ES-20/80C V.1AD (230 V) M 4 A Figure 9. Fuse holder Disposal. Disposal of the appliance requires special precautions and must be carried out at an appropriate disposal site, separate from normal household waste.

  • Page 18: Warranty

    To obtain the claim form, visit Technical support page on our website at link below. 11.5 Extended warranty. For ES-20/80C, the Smart class model, extended warranty is a paid service. Contact your local Biosan representative or our service department through the Technical support section on our website at the link below.

  • Page 19: Eu Declaration Of Conformity

    12. EU Declaration of conformity 12.1 Orbital shaker-incubator ES-20/80C is in conformity with the following relevant Union legislations: LVS EN 61010-1:2011 Safety requirements for electrical equipment for measurement, control, and laboratory use. General requirements. LVS EN 61010-2-010:2015 Particular requirements for laboratory equip- LVD 2014/35/EU ment for heating of materials.
  • Page 20 Biosan SIA Ratsupites 7 k-2, Riga, LV-1067, Latvia Phone: +371 67426137 Fax: +371 67428101 Edition 1.04 – September of 2022...
