1 ANI-1F1

Module for process control in CO
1.1

Front view

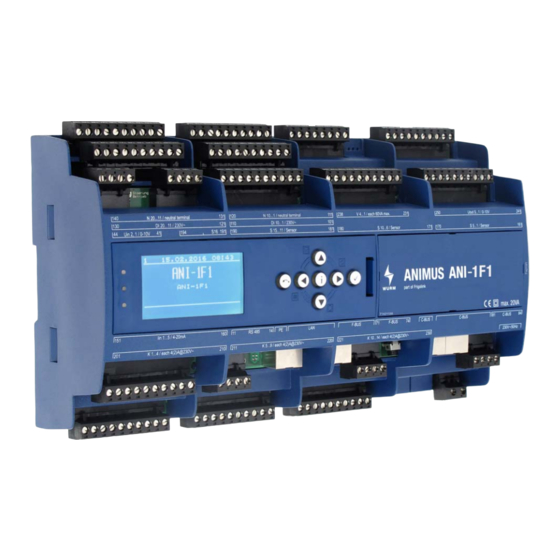

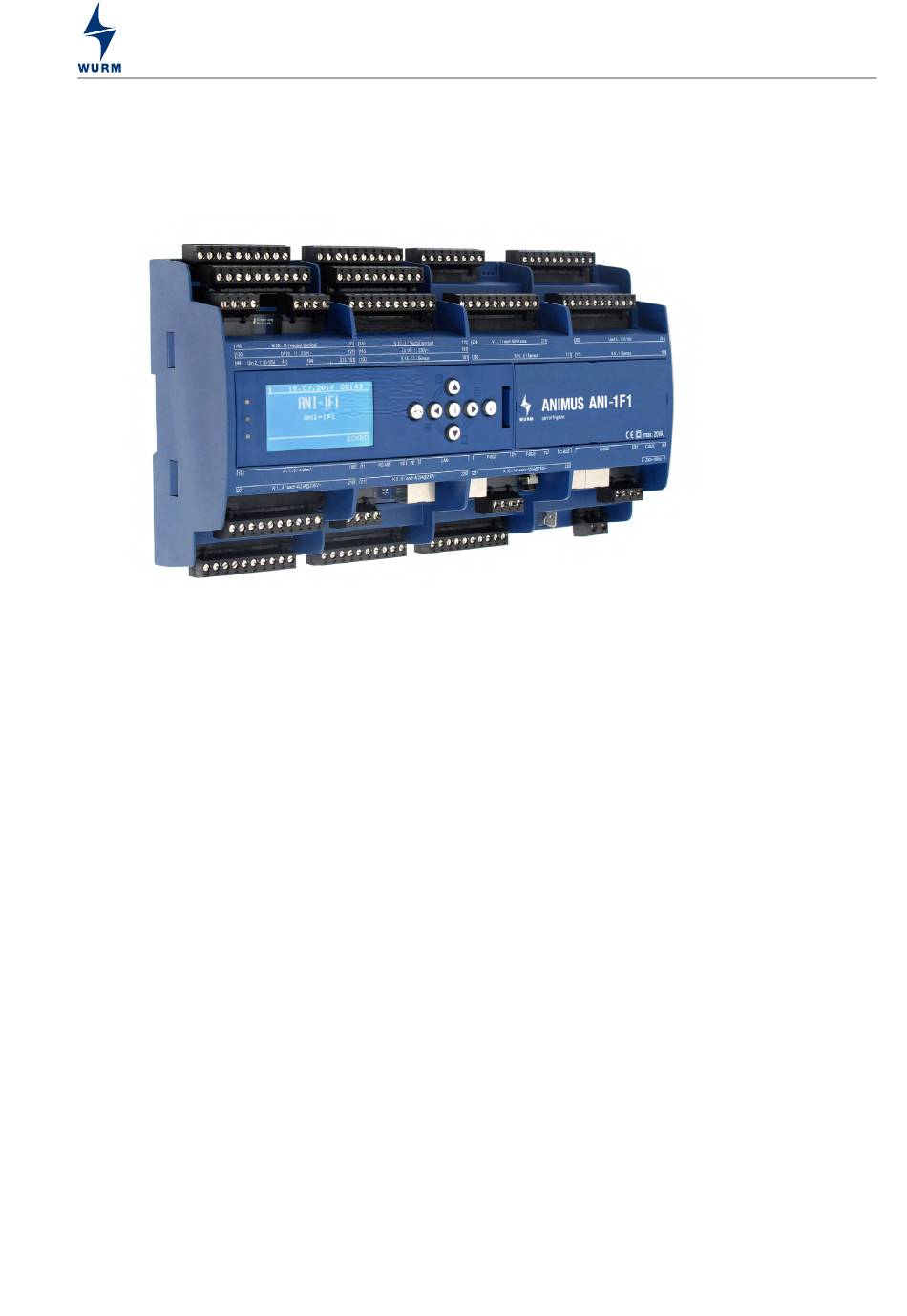

Fig. 1: Front view of ANI-1F1 with ANI-C control panel
1.2

Features

Standard rack controller with 2 or 3 compressors controlled by evaporation temperature
-
Compressor 1 constant (FC), compressors 2 and 3 controlled directly
or stepped (PC 50/100%)
-
Frigotakt +
-
base load change
-
Monitoring of suction gas temperature and hot gas temperature
-
Oscillation protection function
-
Blocking time after compressor fault
-
3-step load shedding including Fastreturn
-
Operating hours counter and cycle counter for each compressor
-
Proactive oil return
High pressure and medium pressure control
Gas cooler fan control also via Modbus
Gas cooler monitoring
Additional control circuits for:
-
LT single machine
-
Desuperheater LT
-
Liquid post-injection
-
Refrigerant monitoring
-
4-step heat recovery
-
Control cabinet monitoring
Integrated relay outputs
CAN bus connection via patch cable and screw terminals
Fastening by top-hat rail
Can be locked to prevent unwanted parameter adjustment (SAC - Security Access Control)
Connection to the Wurm system via Wurm CAN communication bus (C-BUS) and
FRIGODATA XP
Accessories
Control panel (ANI-C)
ANI-1F1_V2.5.0_PI_2021-04_EN
refrigeration plants with rack and gas cooler control
2
Subject to technical changes
FRIGOLINK
ANI-1F1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRIGOLINK ANI-1F1 and is the answer not in the manual?

Questions and answers

Summary of Contents for WURM FRIGOLINK ANI-1F1

  • Page 1: Ani-1F1

    • Fastening by top-hat rail • Can be locked to prevent unwanted parameter adjustment (SAC - Security Access Control) • Connection to the Wurm system via Wurm CAN communication bus (C-BUS) and FRIGODATA XP Accessories • Control panel (ANI-C) ANI-1F1_V2.5.0_PI_2021-04_EN...
  • Page 2: Table Of Contents

    FRIGOLINK ANI-1F1 Contents ANI-1F1 ..........1 1.1 Front view .
  • Page 3: Safety Instructions

    Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
  • Page 4: Circuit Diagram

    Any versions not listed are special solutions for individual projects and are not described in detail in this document. This document automatically ceases to be valid if a new technical description is issued. Manufacturer: Wurm GmbH & Co. KG Elektronische Systeme, Morsbachtalstraße 30, D-42857 Remscheid For further information, see our website at www.wurm.de...
  • Page 5: Input Circuit Diagram

    FRIGOLINK ANI-1F1 1.4.1 Input circuit diagram 140 139 138 137 136 135 134 133 132 131 140 139 138 137 136 135 134 133 132 131 120 119 118 117 116 115 114 113 112 111 120 119 118 117 116 115 114 113 112 111 238 237 236 235 234 233 232 231 250 249 248 247 246 245 244 243 242 241 130 129 128 127 126 125 124 123 122 121...
  • Page 6: Analogue Inputs Uin 1, 2

    FRIGOLINK ANI-1F1 Terminal Digital input Potential Assignment DI 14 230V~ Min. refrigerant fault DI 15 230V~ Max. refrigerant fault DI 16 230V~ LP rack fault DI 17 230V~ Rack HP fault DI 18 230V~ GC fan fault DI 19 230V~ Alarm input 1 (NC) DI 20 230V~...
  • Page 7: Analogue Inputs S 1 - S 16

    FRIGOLINK ANI-1F1 Analogue inputs S 1 - S 16 Terminal Sensor input Sensor type Assignment 161/162 MT Ts 163/164 MT T.hg 165/166 LT T.dsh 167/168 T.out 169/170 T.gc 1 171/172 T.gc 2 173/174 HR CO2 T.outlet 175/176 HR medium T.outlet 177/178 HR medium T.inlet 179/180...
  • Page 8: Output Circuit Diagram

    FRIGOLINK ANI-1F1 1.4.2 Output circuit diagram 120 119 118 117 116 115 114 113 112 111 238 237 236 235 234 233 232 231 238 237 236 235 234 233 232 231 250 249 248 247 246 245 244 243 242 241 250 249 248 247 246 245 244 243 242 241 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121...
  • Page 9: Digital Outputs (Ssr) V 1 - V 4

    FRIGOLINK ANI-1F1 Contact arrange- Terminal Digital output Assignment ment NO contact K 13 / Valve PC CP 3 4(2)A@230V~ NO contact K 14 / Control cabinet fan 4(2)A@230V~ Digital outputs (SSR) V 1 - V 4 Contact arrange- Terminal Digital output (SSR) Assignment ment Semiconductor V 1...
  • Page 10: Communication Circuit Diagram

    FRIGOLINK ANI-1F1 1.4.3 Communication circuit diagram 140 139 138 137 136 135 134 133 132 131 120 119 118 117 116 115 114 113 112 111 238 237 236 235 234 233 232 231 250 249 248 247 246 245 244 243 242 241 130 129 128 127 126 125 124 123 122 121 110 109 108 107 106 105 104 103 102 101 44 43 42 41...
  • Page 11: Installing

    FRIGOLINK ANI-1F1 Installing The module is designed for top-hat rail installation. The housing is also suitable for installation in fuse boxes or distribution switch cabinets. Modules can be positioned side by side without gaps. DANGER TO LIFE FROM ELECTRIC SHOCK AND/OR FIRE! WARNING •...
  • Page 12: Dismantling

    FRIGOLINK ANI-1F1 Dismantling 1. Insert a flat-tip screwdriver in the openings in the fastening safety catches. 2. Pull the two fastening safety catches away from the housing until they are heard to click. 3. Swivel the bottom of the module gently away from the top-hat rail and towards yourself. 4.
