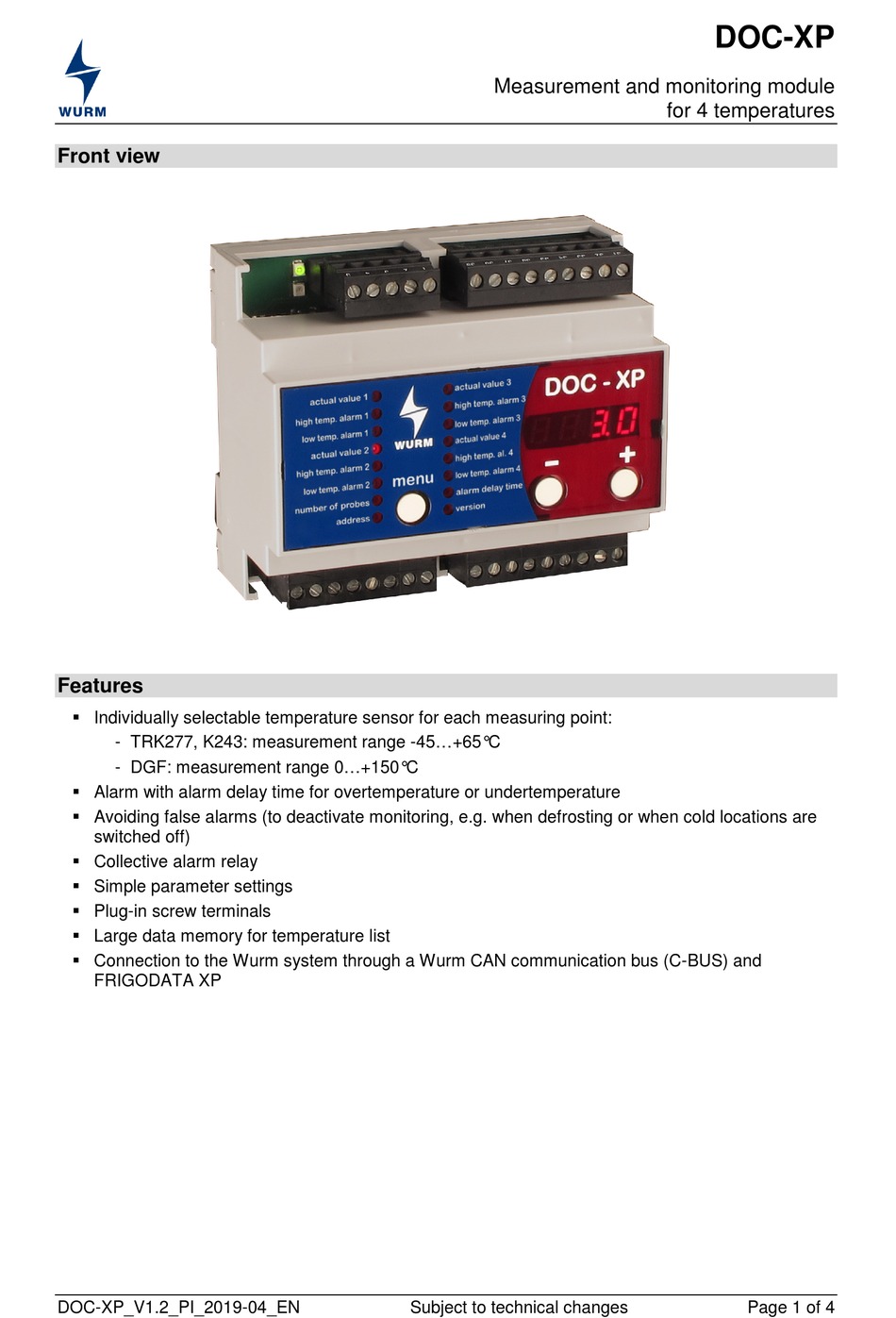

WURM DOC-XP Quick Start Manual

Front view
Features
 Individually selectable temperature sensor for each measuring point:
- TRK277, K243: measurement range -45...+65°C
- DGF: measurement range 0...+150°C
 Alarm with alarm delay time for overtemperature or undertemperature
 Avoiding false alarms (to deactivate monitoring, e.g. when defrosting or when cold locations are
switched off)
 Collective alarm relay
 Simple parameter settings
 Plug-in screw terminals
 Large data memory for temperature list
 Connection to the Wurm system through a Wurm CAN communication bus (C-BUS) and
FRIGODATA XP
DOC-XP_V1.2_PI_2019-04_EN
Measurement and monitoring module
Subject to technical changes
DOC-XP
for 4 temperatures
Page 1 of 4
