1 FIO 24V PAT
Universal input / output module for building technology
1.1

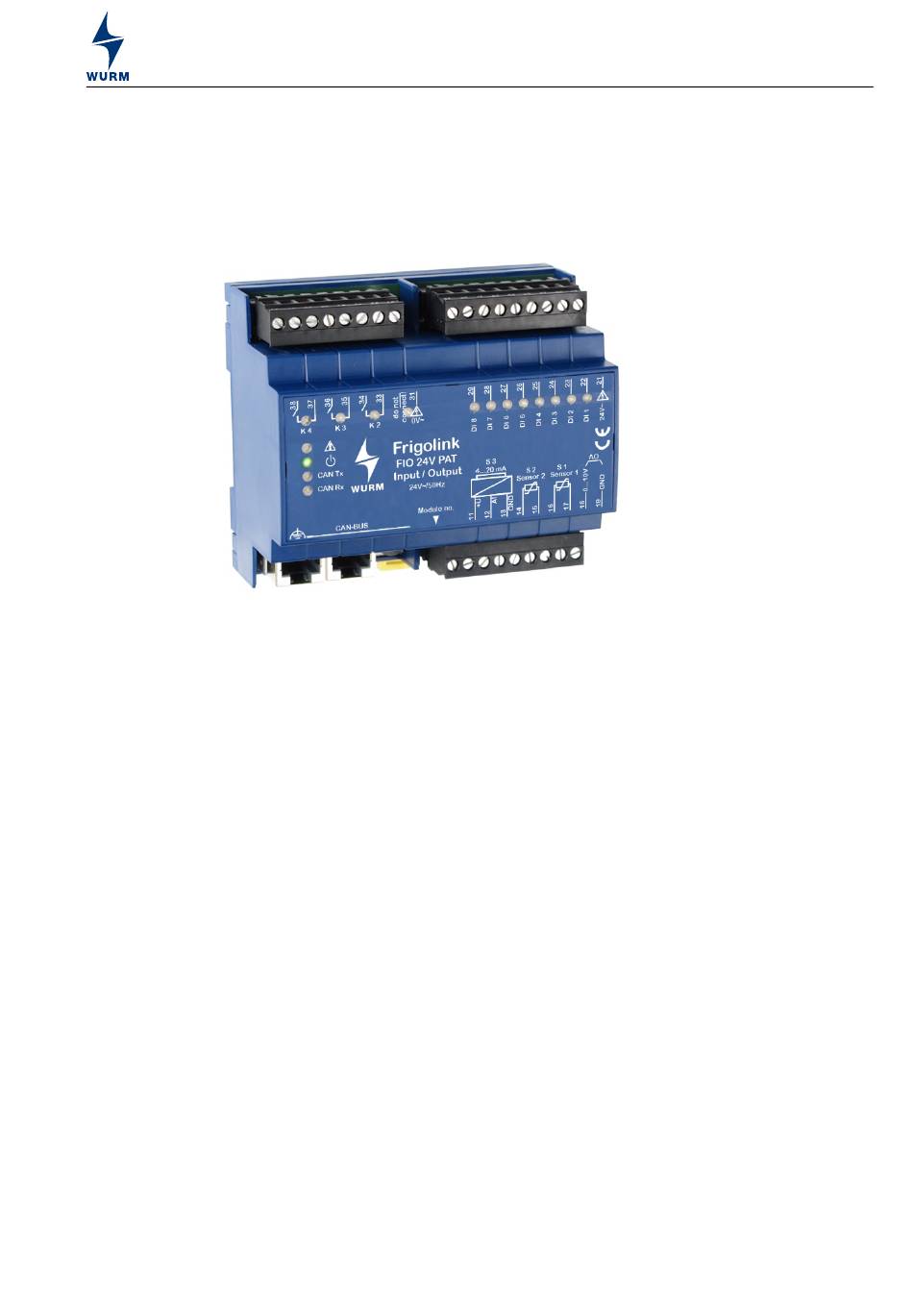

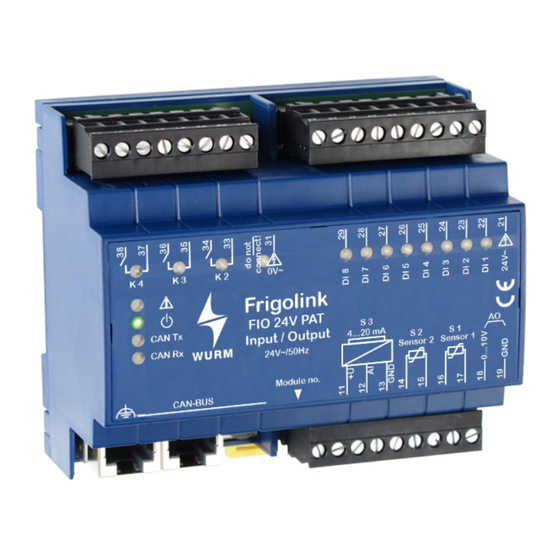

Front view
Fig. 1: Front view
1.2
Features
•
8 inputs for operating messages or fault messages 24V~/=
•
3 output relays with 230V~ normally open contacts, floating
•
24V~ supply
•
Integrated power supply for CAN bus and relay
•
No parameters to be set on the device
•
Module number setting with user-friendly coding switch
•
The functions of the inputs and outputs depend on the particular application!
•
Connection to master module via Wurm CAN field bus (F-BUS)
FIO-24V-PAT_V2.4_PI_2024-03_EN
Universal input / output module for building technology
Subject to technical changes
FIO 24V PAT
1
Advertisement
Related Manuals for WURM Frigolink FIO 24V PAT
Summary of Contents for WURM Frigolink FIO 24V PAT
- Page 1 No parameters to be set on the device • Module number setting with user-friendly coding switch • The functions of the inputs and outputs depend on the particular application! • Connection to master module via Wurm CAN field bus (F-BUS) FIO-24V-PAT_V2.4_PI_2024-03_EN Subject to technical changes...
- Page 2 Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
- Page 3 Any versions not listed are special solutions for individual projects and are not described in detail in this document. This document will automatically cease to be valid if a new technical description is issued. Manufacturer: Wurm GmbH & Co. KG Elektronische Systeme, Morsbachtalstraße 30, D-42857 Remscheid. You can find more information on our website at www.wurm.de.
- Page 4 FIO 24V PAT Universal input / output module for building technology Technical data Power supply 24V~, +10% / -15%, 7VA approx. Display 1 x red LED, flashes in case of fault 1 x green LED, operating voltage 2 x green LED, CAN bus data traffic (CAN Tx, CAN Rx) 8 x yellow LED, for signal at the input 4 x green LED, for controlling the relays Communication...
