1 ANI-2F1-A

Module for process control in CO
1.1

Front view

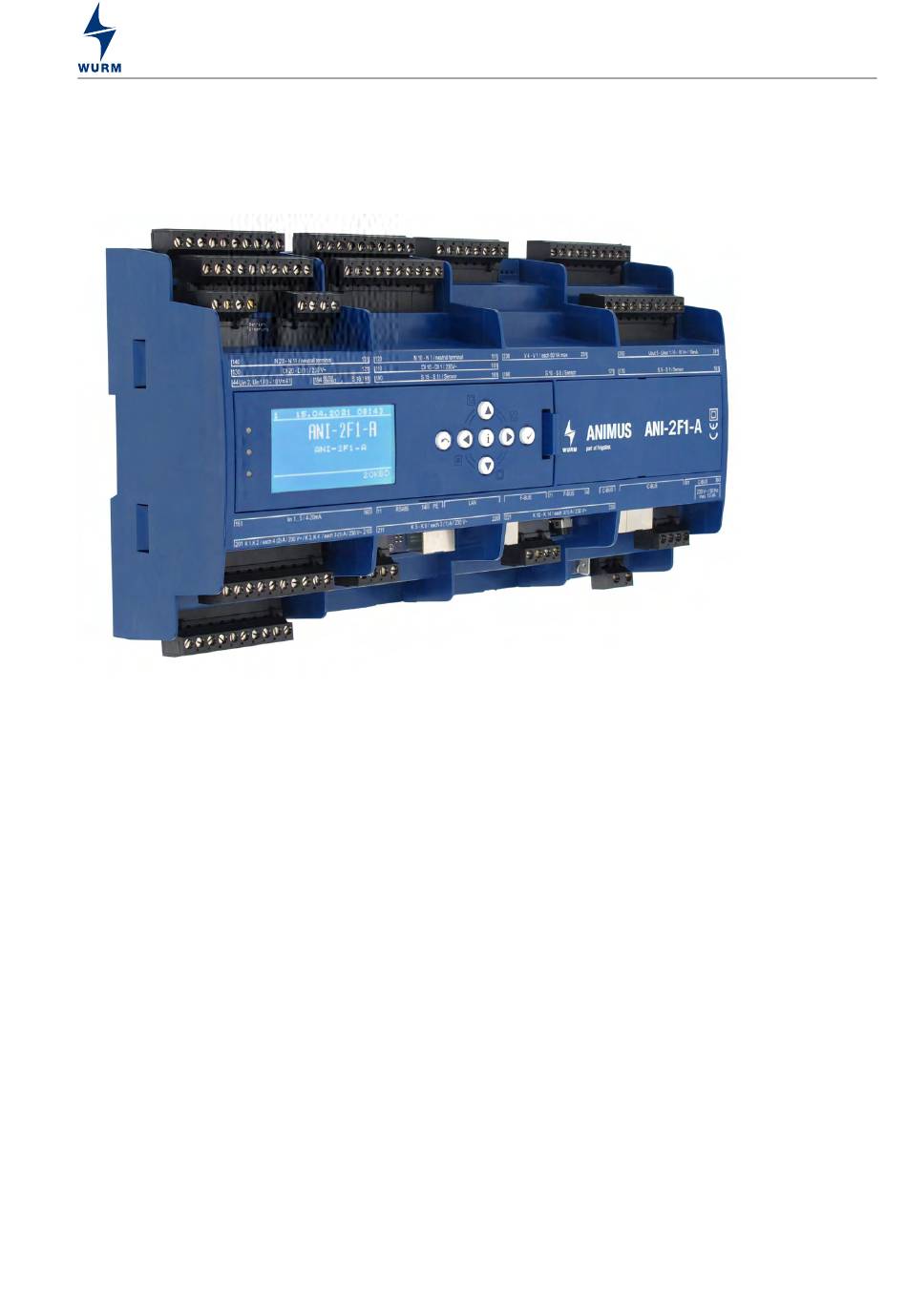

Fig. 1: Front view with ANI-C control panel
1.2

Features

•
Standard rack controller with up to 2 compressors controlled by evaporation temperature
-
Compressor 1 constant (FC), compressor 2 directly controlled
-
Frigotakt+
-
Monitoring of suction gas temperature
-
Oscillation protection function
-
Blocking time after compressor fault
-
3-step load shedding including Fastreturn
-
Operating hours counter and cycle counter for each compressor
•
High pressure and medium pressure control
•
Gas cooler fan control
•
Gas cooler monitoring
•
Refrigerant monitoring
•
CAN bus connection via patch cable and screw terminals
•
Fastening by top-hat rail
•
Can be locked to prevent unwanted parameter adjustment (SAC - Security Access Control)
•
Connection to the Wurm system via Wurm CAN communication bus (C-BUS) and
FRIGODATA XP
Accessories
•
Control panel (ANI-C)
ANI-2F1-A_V1.0.0._PI_2021-08_EN
refrigeration plants with rack and gas cooler control
2
Subject to technical changes
FRIGOLINK
ANI-2F1-A
1
