WURM DSC-XP Quick Start Manual

Rack control for plants with digital scroll compressors and integrated condensation pressure control
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

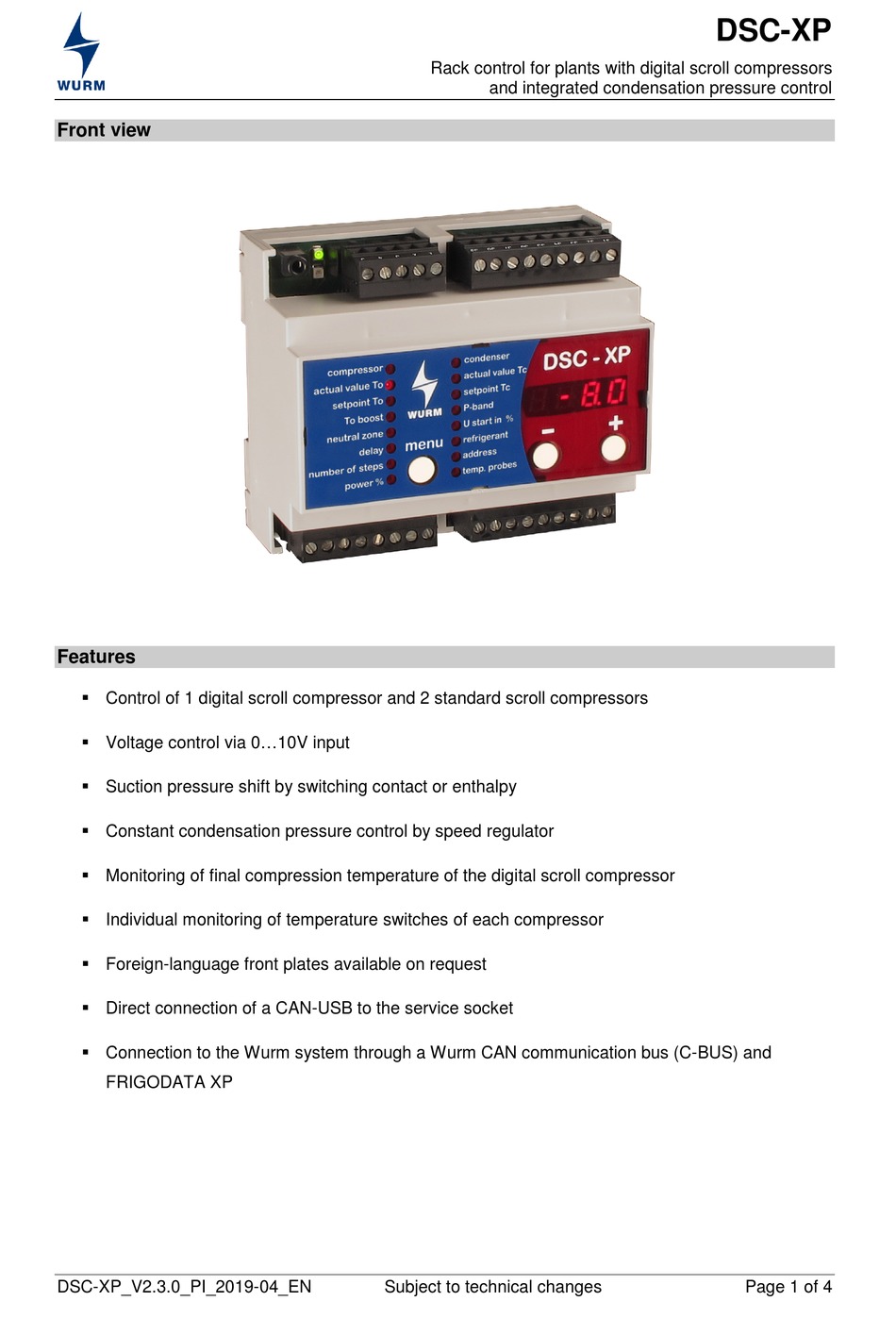

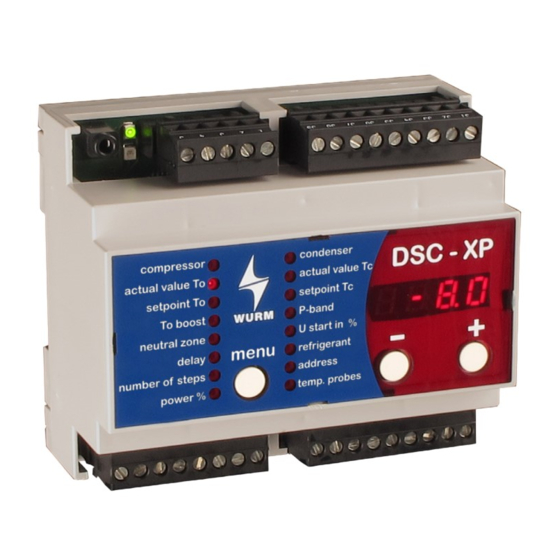

Front view

Features

 Control of 1 digital scroll compressor and 2 standard scroll compressors
 Voltage control via 0...10V input
 Suction pressure shift by switching contact or enthalpy
 Constant condensation pressure control by speed regulator
 Monitoring of final compression temperature of the digital scroll compressor
 Individual monitoring of temperature switches of each compressor
 Foreign-language front plates available on request
 Direct connection of a CAN-USB to the service socket
 Connection to the Wurm system through a Wurm CAN communication bus (C-BUS) and
FRIGODATA XP
DSC-XP_V2.3.0_PI_2019-04_EN
Rack control for plants with digital scroll compressors
and integrated condensation pressure control
Subject to technical changes
DSC-XP
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC-XP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WURM DSC-XP

Summary of Contents for WURM DSC-XP

  • Page 1  Individual monitoring of temperature switches of each compressor  Foreign-language front plates available on request  Direct connection of a CAN-USB to the service socket  Connection to the Wurm system through a Wurm CAN communication bus (C-BUS) and FRIGODATA XP DSC-XP_V2.3.0_PI_2019-04_EN...
  • Page 2 Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
  • Page 3 DSC-XP Rack control for plants with digital scroll compressors and integrated condensation pressure control Circuit diagram Installing and connecting WARNING Danger to life from electric shock and/or fire!  Switch off the power to the entire plant when carrying out installation, wiring or removal work.
  • Page 4 DSC-XP Rack control for plants with digital scroll compressors and integrated condensation pressure control Place the device with the upper guide edge on the top-hat rail. Then press the device gently downward until it engages with the fastening safety catch on the top-hat rail.
