1 ANI-1F3

Module for process control in CO
1.1

Front view

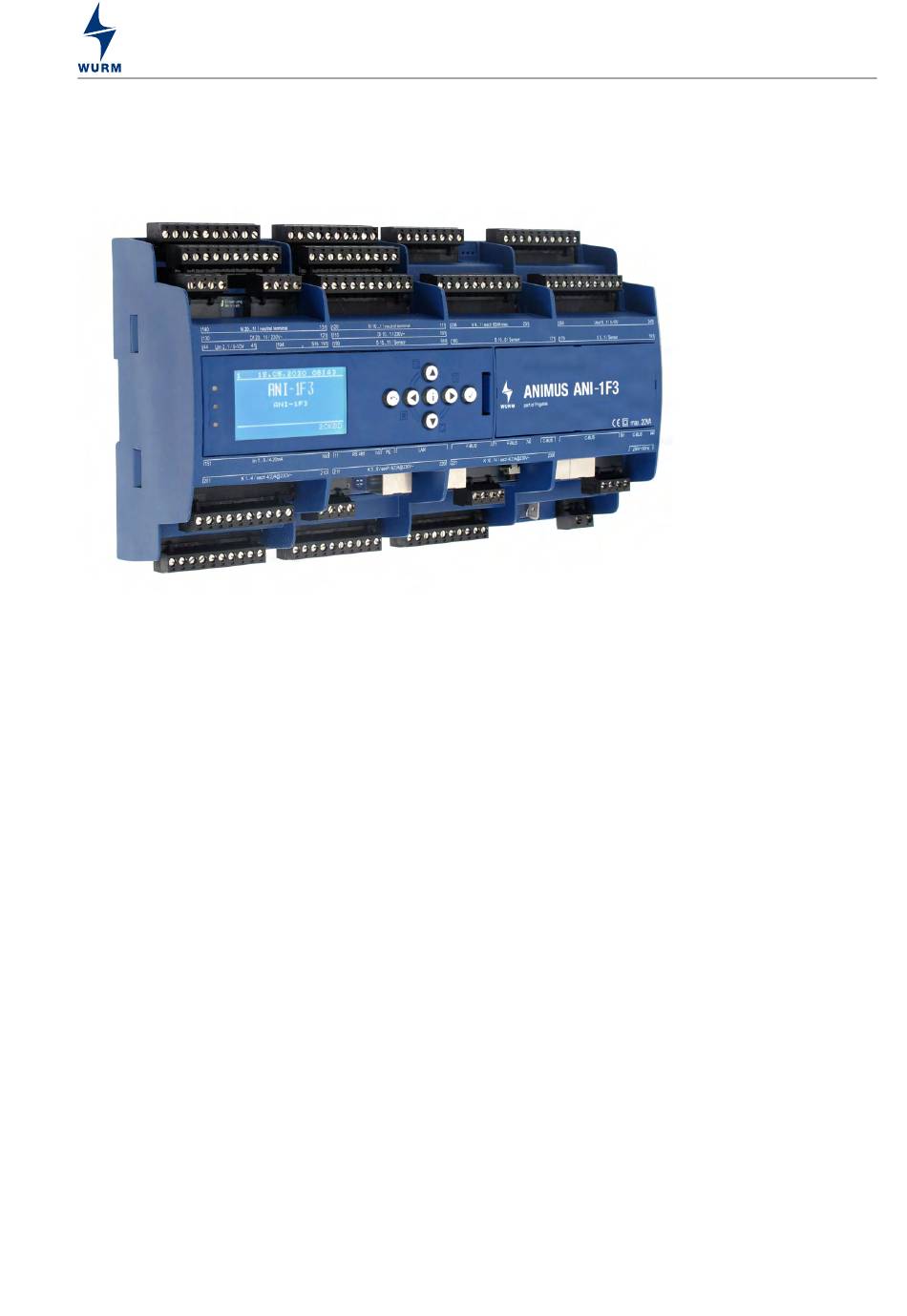

Fig. 1: Front view of ANI-1F3 with ANI-C control panel
1.2

Features

Standard rack controller with 2 or 3 compressors controlled by evaporation temperature
-
Compressor 1 constant (FC), compressors 2 and 3 controlled directly
or stepped (PC 50/100%)
-
Frigotakt +
-
Base load change
-
Monitoring of suction gas temperature and hot gas temperature
-
Oscillation protection function
-
Blocking time after compressor fault
-
3-step load shedding including Fastreturn
-
Operating hours counter and cycle counter for each compressor
-
Proactive oil return
High pressure and medium pressure control
Gas cooler fan control also via Modbus
Additional control circuits for:
-
LT single machine and LT single machine 2
-
Desuperheater LT
-
Liquid post-injection
-
Refrigerant monitoring
-
6-step heat recovery
-
Air conditioning
-
Bypass valve for the inner heat exchanger
-
Control cabinet monitoring
Integrated relay outputs
CAN bus connection via patch cable and screw terminals
Fastening by top-hat rail
Can be locked to prevent unwanted parameter adjustment (SAC - Security Access Control)
Connection to the Wurm system via Wurm CAN communication bus (C-BUS) and
FRIGODATA XP
Accessories
Control panel (ANI-C)
ANI-1F3_V2.0.0_PI_2021-04_EN
refrigeration plants with rack and gas cooler control
2
Subject to technical changes
FRIGOLINK
ANI-1F3
1
