1 FGT004
Field module for building technology solutions
1.1

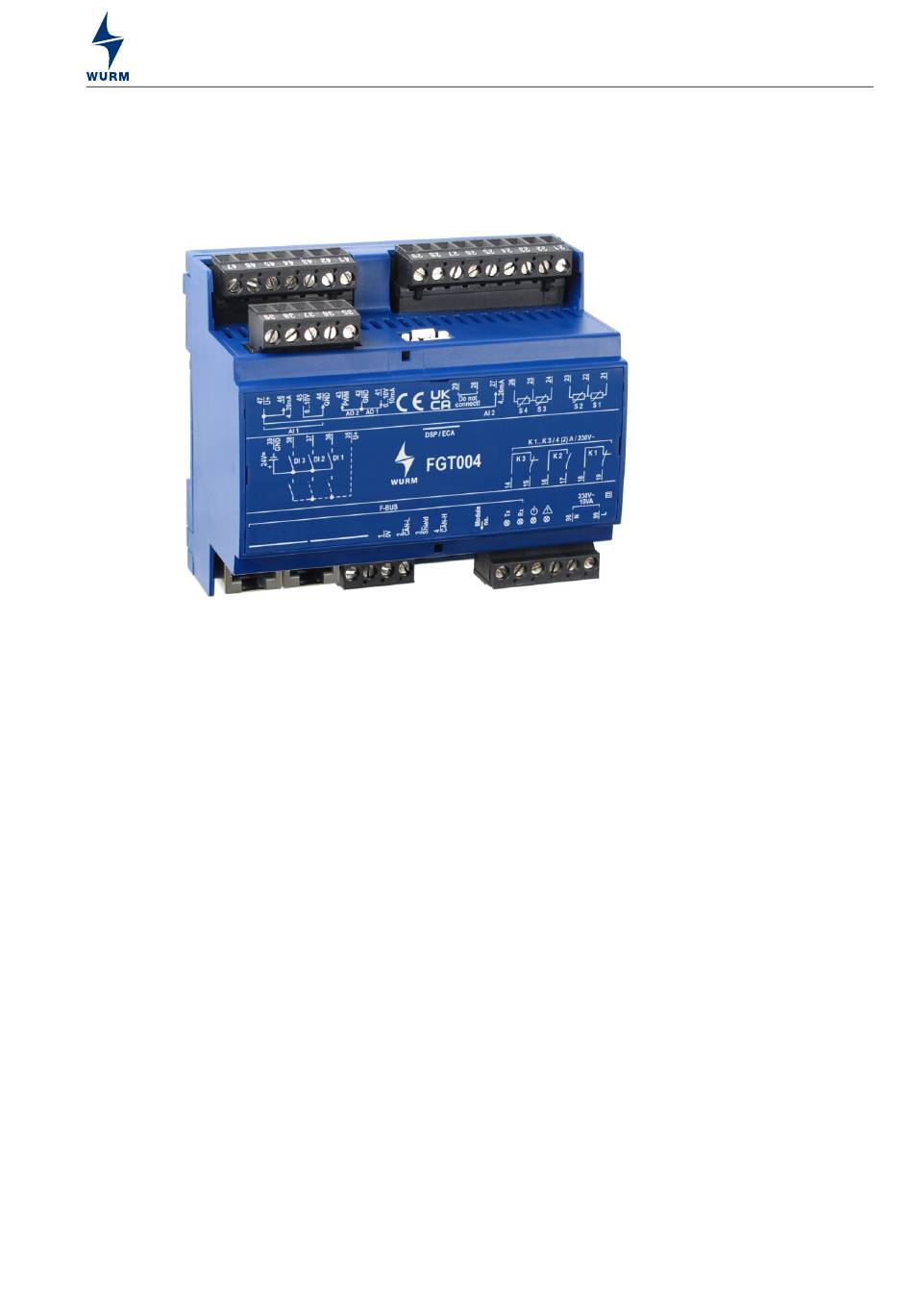

Front view

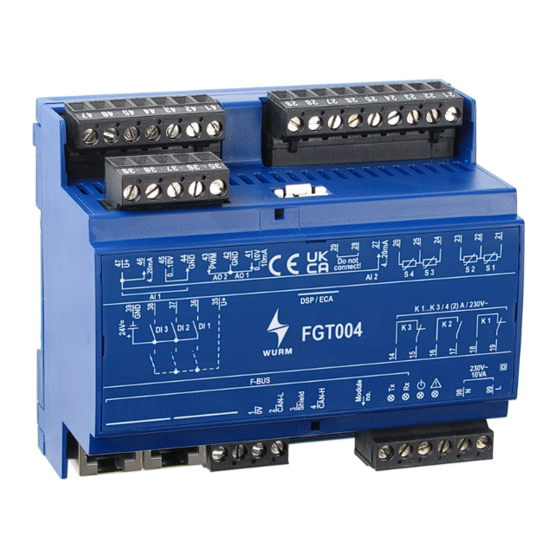

Fig. 1: Front view
1.2
Features
•
Inputs and outputs
-
Constant output 0...10V
-
PWM output 0...10V
-
1 x Analogue input 0...10V / 4...20mA
-
1 x Analogue input 4...20mA
-
3 x digital input 24V=
-
4 x temperature sensor (TRK277, DGF980)
-
3 x relay (2 x NC contact, 1 x NO contact)
•
Connection of an external display
•
Emergency program in case of bus errors
•
No parameters to be set on the device
•
Bus connection by patch cable and screw terminals (4-pin)
•
Connection to master module via Wurm CAN field bus (F-bus)
FGT004_V4.2.0_PI_2023-02_EN
Field module for building technology solutions
Subject to technical changes
FGT004
1
Advertisement
Related Manuals for WURM FGT004
Summary of Contents for WURM FGT004
- Page 1 Emergency program in case of bus errors • No parameters to be set on the device • Bus connection by patch cable and screw terminals (4-pin) • Connection to master module via Wurm CAN field bus (F-bus) FGT004_V4.2.0_PI_2023-02_EN Subject to technical changes...
- Page 2 Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
- Page 3 FGT004 Field module for building technology solutions Connection diagram Fig. 2: Connection diagram Installing the device This device is designed for top-hat rail installation. The housing has standard DIN 43880 dimensions and is suitable for installation in fuse boxes, distribution cabinets, or the load sections of refrigeration units.
- Page 4 Field module for building technology solutions CAN bus address setting To correctly register the FGT004 on the CAN bus, you must assign it a unique CAN bus address using a coding switch. This is a requirement for functioning communication with the master module.
