Field module with semiconductor relay for EEV for advanced functions
1.1
Front view

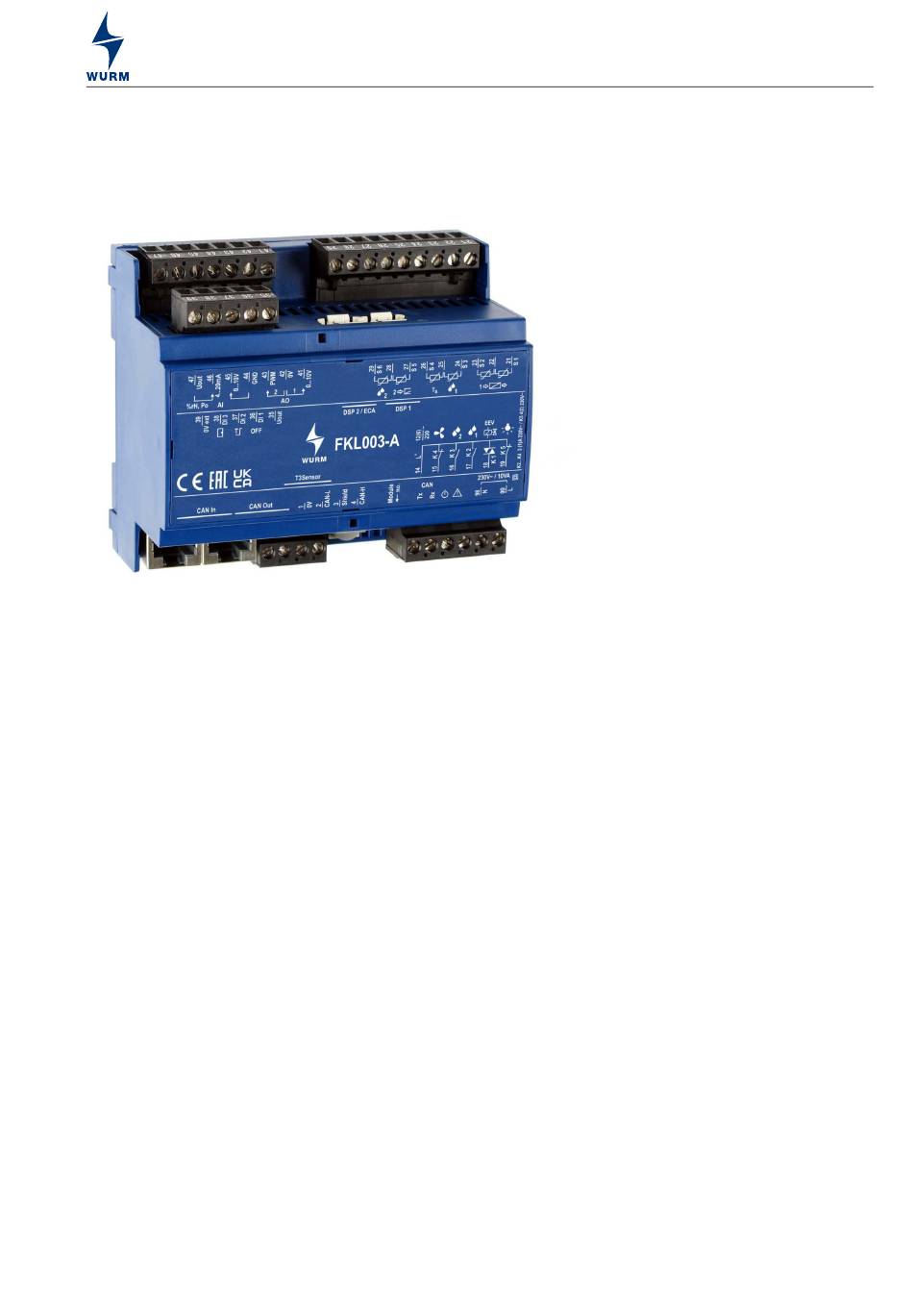

Fig. 1: Front view
1.2
Features
•
Control of 2 evaporators and 1 expansion valve per module, such as double islands
•
Operation of an electronic expansion valve:
-
230V~, pulsed direct
-
Modulated via output 0...10V
-
Pulsed, 230V~ / 230V= with ATV230
•
Connection of 2 external displays
•
Connection of glass and handrail heaters on a free display output through ECA970
•
Connection of refrigeration unit lighting
•
Connection of T3Sensor temperature sensors
•
Fixed input/output allocation for sensors, control inputs and relays
•
Emergency program in case of CAN bus errors
•
No parameters to be set on the device
•
CAN bus connection via patch cable and screw terminals (4-pin)
•
Replaces FKL002B
•
Connection to master module via Wurm CAN field bus (F-BUS)
FKL003-A_V3.60_PI_2022-11_EN
Field module with semiconductor relay for EEV for advanced functions
Subject to technical changes
FKL003-A
1
Advertisement
Table of Contents
Related Manuals for WURM FKL003-A
Summary of Contents for WURM FKL003-A
- Page 1 Emergency program in case of CAN bus errors • No parameters to be set on the device • CAN bus connection via patch cable and screw terminals (4-pin) • Replaces FKL002B • Connection to master module via Wurm CAN field bus (F-BUS) FKL003-A_V3.60_PI_2022-11_EN Subject to technical changes...
- Page 2 Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
- Page 3 You must also observe the detailed description of the ECA970. NOTICE • The control of a glass and handrail heater via the free display output of the FKL003-A is only pos- sible with HKS-G3 V7.62 or later. FKL003-A_V3.60_PI_2022-11_EN Subject to technical changes...
- Page 4 Field module with semiconductor relay for EEV for advanced functions CAN bus address setting To register the FKL003-A correctly on the CAN bus, you have to assign a unique CAN bus address to it with the coding switch. This is a requirement for functioning communication with the master module.
