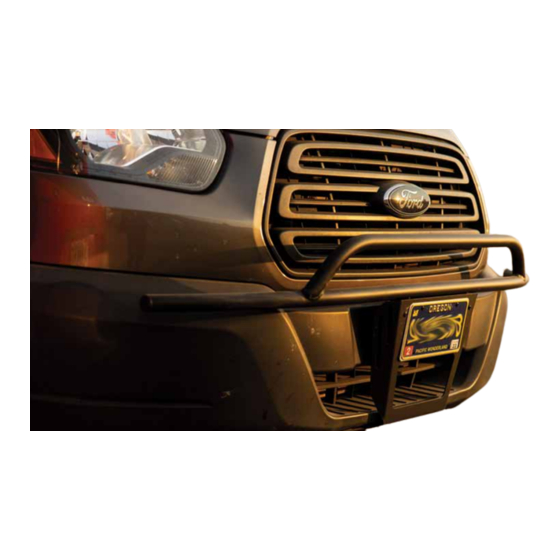

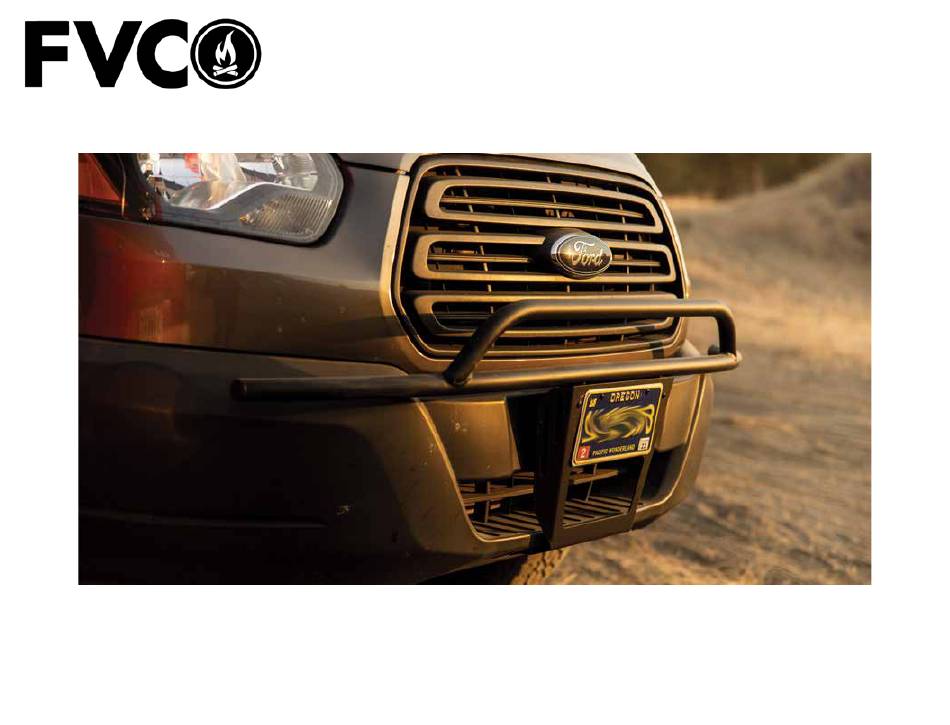

- Page 1 Installation Guide Transit Nudge Bar TR1103B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW NUDGE BAR? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS NUDGE BAR QTY - 1 FRONT PLATE PLATE SPACER QTY - 1 QTY - 2 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... - Page 5 HARDWARE 1/4-20 X 0.75 M8-1.25 X 40 M8 SCREW X 24 O.D. FLANGED BUTTON FLANGED HEX HEAD OVERSIZED FLAT HEAD HEX DRIVE SCREW WASHER SCREW QTY - 2 QTY - 2 QTY - 6 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
-
Page 6: Let's Get Started
LET’S GET STARTED! FIRST STEP IS TO REMOVE THE LICENSE PLATE MOUNT AS SHOWN ON THE RIGHT. MOST OFTEN THIS WILL BE ATTACHED WITH PHILIPS DRIVE SCREWS, BUT OCCASIONALLY THEY WILL BE HELD WITH RIVETS THAT WILL NEED TO BE DRILLED OUT. AFTER REMOVING THE LICENSE PLATE MOUNT YOU WILL SEE TWO BOLTS. - Page 7 PLACE HARDWARE AND HOLD WHILE INSTALLING NUDGE BAR TO BUMPER NEXT, GRAB THE NUDGE BAR, M8-1.25 X 40 FLANGED HEX HEAD SCREWS, M8 FLAT WASHERS, AND PLATE SPACERS AND INSERT THE HARDWARE INTO THE NUDGE BAR AS SHOWN ON THE RIGHT. YOU’LL HAVE TO HOLD THE HARDWARE IN PLACE AS YOU POSITION THE NUDGE BAR IN PLACE ON THE BUMPER.
- Page 8 TO PREPARE FOR INSTALLING THE FRONT PLATE, YOU MUST FIRST REMOVE THE TWO FACTORY BOLTS ON THE UNDERSIDE OF THE BUMPER THAT HOLD THE SPLASH GUARD ON. THESE BOLTS REQUIRE A 10MM SOCKET. SET THESE ASIDE, AS WE WILL REINSTALL THEM. NOW, GRAB THE FRONT PLATE AND LOOSELY THREAD IN THE FOUR 1/4-20 X 0.75 FLANGED BUTTON HEAD HEX DRIVE SCREWS INTO THE FOUR HOLES AS SHOWN BELOW.
- Page 9 GRAB THE BOLTS YOU REMOVED FROM THE SPLASH GUARD AND REINSTALL THEM IN THE LOWER SLOTS OF THE FRONT PLATE AS SHOWN. YOU MAY NEED TO WIGGLE THEM A BIT TO GET THEM TO BITE. LEAVE THEM LOOSE, THEN TIGHTEN THE FOUR 1/4-20 SCREWS ON THE FRONT PLATE BEFORE TIGHTENING THE LOWER BOLTS DOWN.
- Page 10 IF YOUR VAN IS EQUIPPED WITH THE FRONT VIEW OR 360 CAMERA PACKAGES; BELOW IS AN IMAGE OF WHAT YOUR FRONT VIEW CAMERA WILL SHOW AFTER INSTALLING THE NUDGE BAR. FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 11 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
