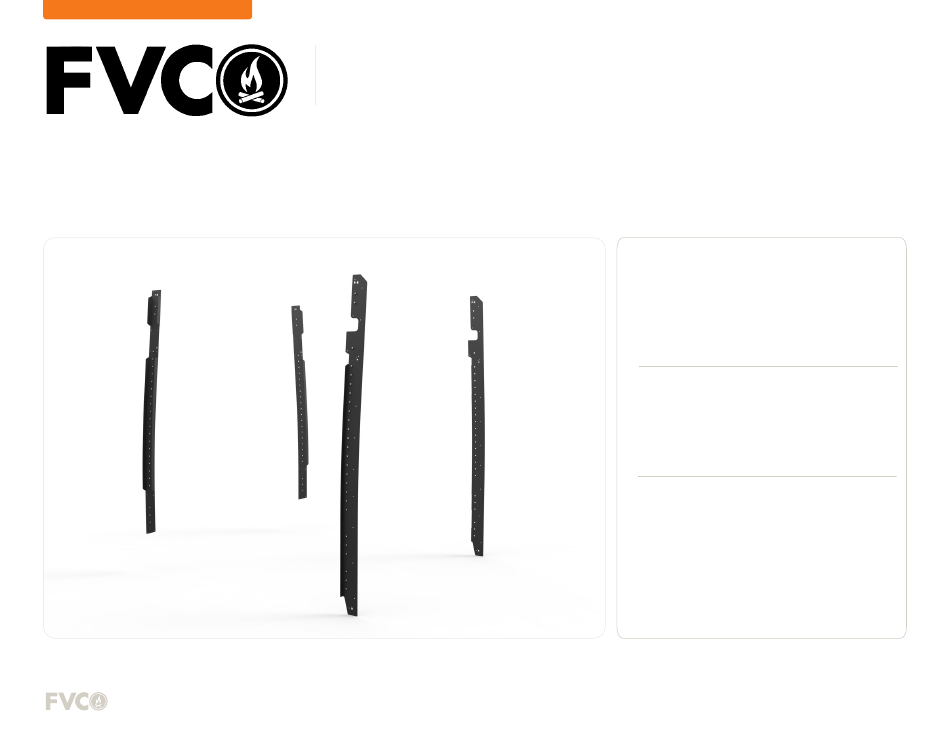

TRANSI T B ED BR ACKETS - 14 8" H I GH RO OF E XT
TR030 6B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
POWER DRILL
+
POP RIVET TOOL
+
TAPE MEASURE
+
MARKER
+
CLAMP OR SELF DRILLING SCREWS
+
RUST PREVENTATIVE PAINT
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 2 HOURS
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR0306B and is the answer not in the manual?

Questions and answers

Related Manuals for FVC TR0306B

Summary of Contents for FVC TR0306B

  • Page 1 INSTALLATION GUIDE TRANSI T B ED BR ACKETS - 14 8” H I GH RO OF E XT TR030 6B TOOLS REQUIRED (NOT INCLUDED) POWER DRILL POP RIVET TOOL TAPE MEASURE MARKER CLAMP OR SELF DRILLING SCREWS RUST PREVENTATIVE PAINT INSTALL INFO TIME TO INSTALL THIS PRODUCT: 2 HOURS Additional help is suggested for a few of the install...

  • Page 2: Before You Start

    BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.

  • Page 3: Package Contents

    PACKAGE CONTENTS QTY: 1 QTY: 1 QTY: 1 QTY: 1 DRIVER FRONT DRIVER REAR PASSENGER FRONT PASSENGER REAR BRACKET BRACKET BRACKET BRACKET QTY: 1 QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
  • Page 4 HARDWARE 3/16 X .125-.250 THK DOMED HEAD BLIND 0.196 SHORT STEEL DRILL BIT ALUMINUM RIVET QTY: 2 QTY: 54 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
  • Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: STEP | 01 LAYOUT AND INSTALL PREP 1.1 Driver Side Alignment Locations: See FIG 1 for alignment hole locations for Driver Side Bracket installation. 1.2 Passenger Side Alignment Locations: See FIG 2 for alignment hole locations for Passenger Side Bracket installation DRIVER SIDE ALIGNMENT HOLE LOCATIONS...
  • Page 6 INSTALL TOOLS REQUIRED FOR THIS STEP: STEP | 01 LAYOUT AND INSTALL PREP THREADED HOLES 1.3 Front Bracket Info: See the images to the right for information regarding which holes in your Bed Brackets are RIVET LOCATIONS used for installing to the van, attaching your Bed System, or are supplemental.
  • Page 7 POWER DRILL TOOLS REQUIRED FOR THIS STEP: QUICK CLAMP SELF TAPPING SCREW STEP | 02 DRIVER SIDE BRACKETS 2.1 Align Driver Side Front Bracket: Align the Driver Side Front Bracket to the Alignment Point as shown in FIG 3. 2.2 Set Driver Side Front Bracket Into Place: Set the Driver Side Front Bracket into place by driving two sheet metal screws through two Rivet Holes to hold it in place.
  • Page 8 POWER DRILL TOOLS REQUIRED FOR THIS STEP: QUICK CLAMP SELF TAPPING SCREW STEP | 03 PASSENGER SIDE BRACKETS 3.1 Align Driver Side Front Bracket: Align the Driver Side Front Bracket to the Alignment Point as shown in FIG 5. There should also be a Body Seam that you can use as a visual guide.
  • Page 9 TAPE MEASURE TOOLS REQUIRED FOR THIS STEP: MARKER POWER DRILL POP RIVET TOOL RUST PREVENTATIVE PAINT STEP | 04 SECURING DRIVER SIDE 4.1 Measure Bracket Spacing: Once you have the Bed Brackets held in place, you’ll need to confirm that the distance between rail mounting points are square at 63.5”...
  • Page 10 TAPE MEASURE TOOLS REQUIRED FOR THIS STEP: MARKER POWER DRILL POP RIVET TOOL RUST PREVENTATIVE PAINT STEP | 05 SECURING PASSENGER SIDE 5.1 Measure Bracket Spacing: Once you have the Bed Brackets held in place, you’ll need to confirm that the distance between rail mounting points are square at 63.5”...
  • Page 11 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
