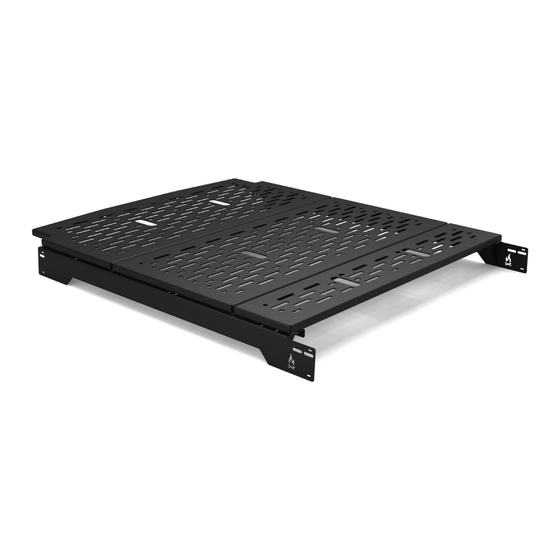

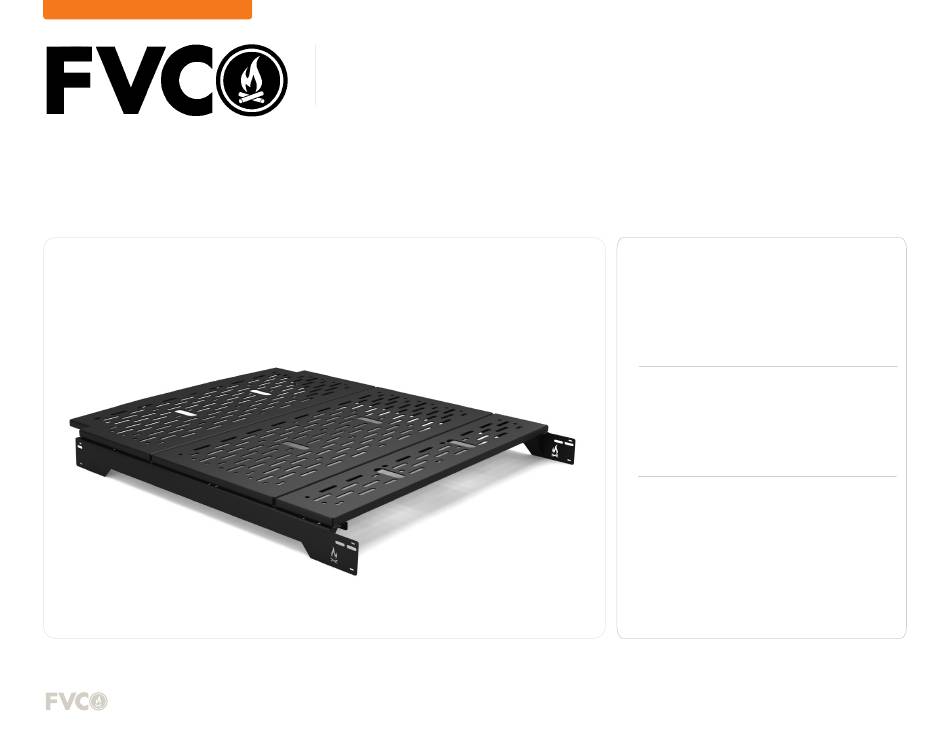

TRANSI T VAN BED SYSTE M - AD WAG COMPATI BL E SYSTEM
TR030 1B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
7/32" ALLEN WRENCH
+
5/8" SOCKET OR WRENCH (ADWAG INSTALL)
+
TAPE MEASURE
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 2 HOURS
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC TR0301B
Summary of Contents for FVC TR0301B
- Page 1 INSTALLATION GUIDE TRANSI T VAN BED SYSTE M - AD WAG COMPATI BL E SYSTEM TR030 1B TOOLS REQUIRED (NOT INCLUDED) 7/32” ALLEN WRENCH 5/8” SOCKET OR WRENCH (ADWAG INSTALL) TAPE MEASURE INSTALL INFO TIME TO INSTALL THIS PRODUCT: 2 HOURS Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS QTY: 1 QTY: 1 QTY: 1 PASSENGER SIDE BED RAIL DRIVER SIDE BED RAIL QTY: 1 QTY: 1 QTY: 1 12” BED PANEL 24” BED PANEL REAR BED PANEL QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 3/8-16 X 1 SOCKET HEAD 3/8 SCREW FLAT WASHER 3/8 SCREW CUSHION WASHER L-TRACK STUD HEX DRIVE SCREW QTY: 6 QTY: 6 QTY: 6 QTY: 4 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 TOOLS REQUIRED FOR THIS STEP: L-TRACK INSTALL FVC BRACKET INSTALL STEP | 01 LAYOUT AND INSTALL PREP The FVC Bed System is designed for install with the FVC Bed Bracket System, but is also DIY-mount and Adventure Wagon compatible. ADWAG/PANEL KIT WITH L-TRACK INSTALL 1.1 L-Track Studs are included for installing bed rails to the...
- Page 6 2.1a See mounting slots highlighted in FIG 1. These are designed to accomodate L-Track Studs for use when attaching FVC Bed Rails to L-Track. 2.2a Raise bed rails up to L-Track, align mounting slots to desired location (one per side) and insert L-Track Studs to corresponding L-Track Key Ways (FIG 2).
- Page 7 FVC BED BRACKETS 2.1b See mounting slots highlighted in FIG 4. These are designed to accomodate 1/4-20 screws for use when attaching FVC Bed Rails to your FVC Bed Bracket System. 2.2b Select desired height of bed. REAR PASSENGER SIDE RAIL NOTE - The width range for rail install is roughly 63-67.75”...
- Page 8 TOOLS REQUIRED FOR THIS STEP: 7/32” ALLEN WRENCH STEP | 03 PLACING BED PANELS 62.75” PANEL 3.1 Once you have the bed rails up and fully mounted, you can simply place the bed panels on and fasten them to the rails using the 3/8-16”...
- Page 9 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
