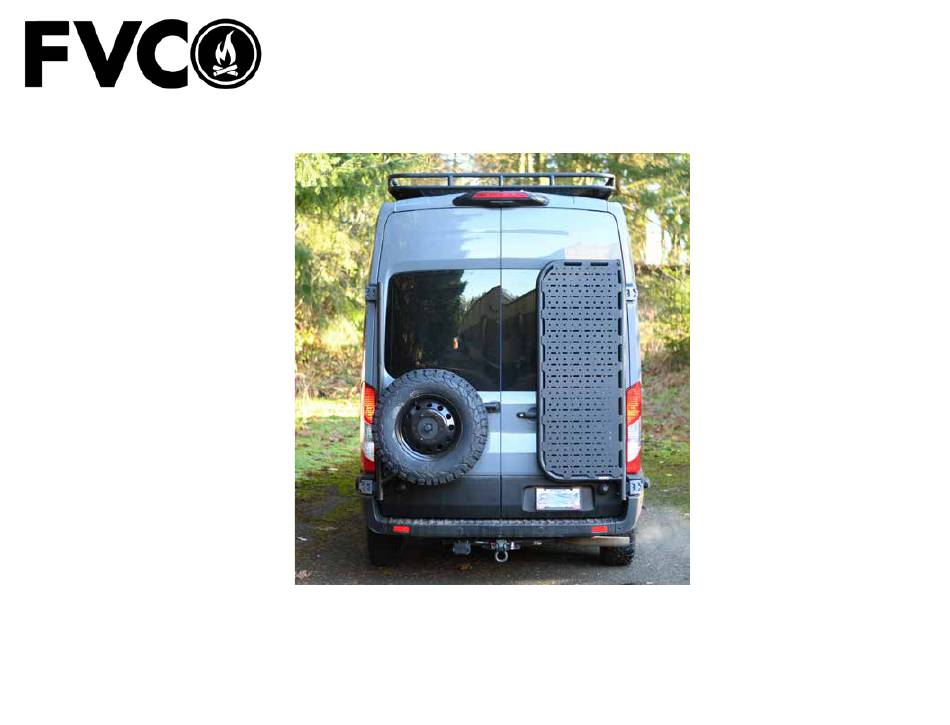

- Page 1 Installation Guide Transit Rear Tire Carrier TR1104B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW REAR TIRE CARRIER? HERE ARE A FEW THINGS TOOLS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS LOWER FRAME BRACE D2 HINGE BRACKET D1 HINGE BRACKET QTY - 1 QTY - 1 QTY - 1 BACKER PLATE WHEEL REST DRILL TEMPLATE QTY - 2 QTY - 1 QTY - 1 REAR TIRE CARRIER INTERNAL DOOR BRACE WHEEL BRACKET QTY - 1 QTY - 1... - Page 5 HARDWARE 1/2-13 X 1.5 SQUARE NECK 1/2 SCREW FLAT WASHER 1/2-13 NYLON INSERT 3/8-16 X 1 FLANGED HEX 3/8 SCREW FLAT WASHER 3/8-16 NYLON INSERT CARRIAGE BOLT LOCKNUT HEAD SCREW LOCKNUT QTY - 4 QTY - 4 QTY - 4 QTY - 8 QTY - 9 QTY - 7...
-
Page 6: Let's Get Started
FIGURE 1 LET’S GET STARTED! WE SUGGEST HAVING A HELPING HAND WITH THESE FIRST FEW STEPS TO HELP SUPPORT THE DOOR! STARTING WITH THE BOTTOM HINGE ON YOUR DRIVER SIDE DOOR; MAKE SOME ALIGNMENT MARKS WITH A SHARPIE OR MARKER, AND THEN REMOVE THE 3 FACTORY BOLTS WITH A 13MM SOCKET. - Page 7 FIGURE 4 NEXT, YOU WILL NEED TO REMOVE THE INTERIOR DOOR PANEL. WE RECOMMEND USING SOME PLASTIC PANEL REMOVAL TOOLS (EASILY FOUND AT HARBOR FREIGHT OR SIMILAR) BE GENTLE WHEN PRYING AS TO NOT BREAK THE FACTORY PANEL CLIPS. ONCE YOU GET THE FIRST FEW POPPED YOU SHOULD BE ABLE TO PULL IT THE REST OF THE WAY WITH YOUR HANDS.
- Page 8 FIGURE 6 NOW GRAB YOUR EXTERIOR DRILL TEMPLATE AND LINE IT UP WITH THE EDGE OF THE DOOR AND EDGE OF SHEET METAL UNDER THE WINDOW (OR WINDOW SPACE) AND MARK YOUR HOLE TO DRILL. GRAB YOUR DRILL AND START BY DRILLING A HOLE WITH YOUR PILOT BIT, THEN FINISH THE HOLE WITH THE 27/64”...
- Page 9 FIGURE 9 NEXT WE NEED TO ATTACH THE WHEEL BRACKET TO THE REAR TIRE CARRIER. USING THE HARDWARE SHOWN BELOW, BOLT THE WHEEL BRACKET TO THE TIRE CARRIER. ENSURE THAT THE BACKER PLATES ARE INSTALLED AS SHOWN BELOW IN FIGURE 10. THEN TIGHTEN ALL HARDWARE DOWN WITH A 3/4”...
- Page 10 FIGURE 11 NOW IT’S TIME TO GET THE TIRE CARRIER ASSEMBLY BOLTED UP. HAVE SOMEONE HELP YOU BY INSERTING THE HARDWARE AS SHOWN WHILE HOLDING THE TIRE CARRIER IN PLACE. LEAVE THE HARDWARE LOOSE FOR NOW AND CONTINUE TO SUPPORT IT THROUGH THE NEXT STEP. NOTE- THE TIRE CARRIER ASSEMBLY RESTS ON THE INSIDE OF THE HINGE BRACKETS...
- Page 11 FIGURE 15 NEXT WE INSTALL THE INTERNAL DOOR BRACE. SLIDE THE BRACE OVER THE BOLT YOU HAVE INSERTED THROUGH THE DOOR AND PLACE THE 3/8 SCREW FLAT WASHER AND 3/8-16 NYLON INSERT LOCK NUT ON LOOSELY. AT THIS POINT THE PERSON SUPPORTING THE DOOR CAN BE RELIEVED. THEN ALIGN THE BRACE WITH THE HOLE ON THE INSIDE OF THE DOOR FRAME AND INSERT THE 1/4-20 X 1.0 FLANGED BUTTON HEAD HEX DRIVE SCREW THROUGH THE SLOT AS SHOWN IN FIGURE 15.
- Page 12 FIGURE 17 TIGHTEN THE 4 BOLTS ON THE HINGE BRACKETS. MAKE SURE THE 3RD MOUNT IS TIGHT, THEN OPERATE THE DOOR AND MAKE SURE THAT THERE IS NO INTERFERENCE WITH ANY OF THE MOUNT BRACKETS. FIGURE 16 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 13 FIGURE 18 GRAB THE LOWER FRAME BRACE, AND ATTACH IT USING THE 3/8-16 X 1 FLANGED HEX HEAD SCREWS, 3/8 SCREW FLAT WASHER, AND 3/8-16 NYLON INSERT LOCKNUTS. ENSURE THAT THE BRACE IS BUTTED TIGHT TO THE DOOR AND TIGHTEN DOWN. FIGURE 19 3/8-16 X 1 FLANGED HEX 3/8 SCREW FLAT WASHER...
- Page 14 FIGURE 21 NEXT WE WILL INSERT THE WHEEL STUDS. GRAB THE THREE M14-1.5 WHEEL STUDS, APPLY SOME BLUE LOCTITE ON THE SHORT END AS SHOWN BELOW, AND THREAD IN TO THE HOLES MARKED WITH NOTCHES ON THE MOUNTING PLATE. TIGHTEN THEM DOWN WITH A 5MM ALLEN WRENCH. THEY DO NOT NEED TO BE TORQUED HARD, JUST TIGHT.
- Page 15 FIGURE 23 IF YOU INTEND ON USING THE WHEEL REST, WE RECOMMEND SETTING YOUR SPARE WHEEL IN POSITION ON THE CARRIER AND INSERTING THE WHEEL REST TO SET THE CORRECT INSERTION DEPTH. AFTERMARKET WHEELS VARY IN DEPTH FROM THE MOUNTING SURFACE, SO THEY MAY NEED A DIFFERENT INSERTION DEPTH THAN A STOCK WHEEL.
- Page 16 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
