Analog Devices AD9152-FMC-EBZ Quick Start Manual page 6

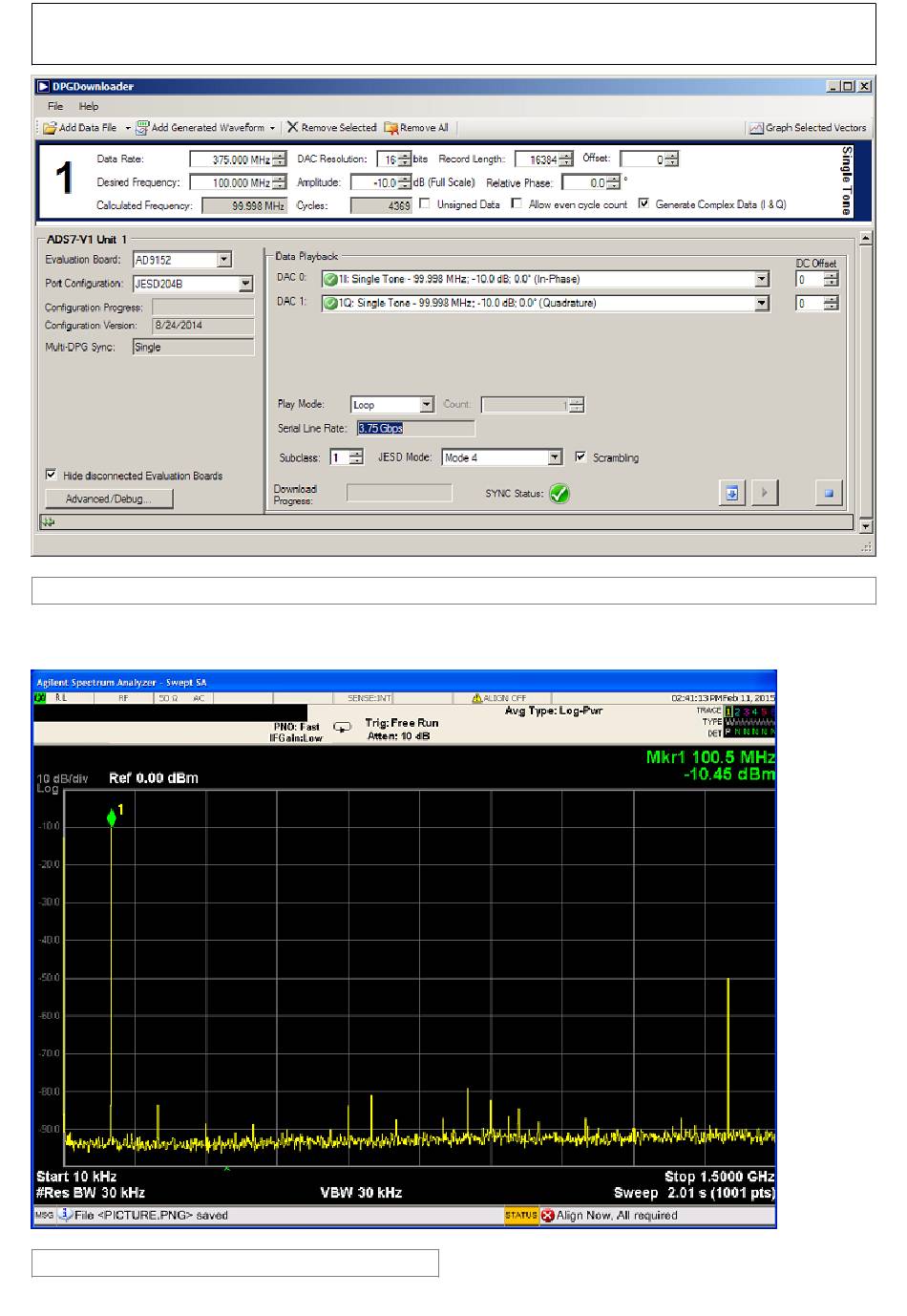

Figure 5. AD9144-FMC-EBZ Fully Configured DPG Downloader Display
6. Here is what you will see at the output of DAC0 on the Spectrum Analyzer.
Figure 6. DAC Output Spectrum Analyzer Display
Rev 05 May 2015 22:48 | Page 6
