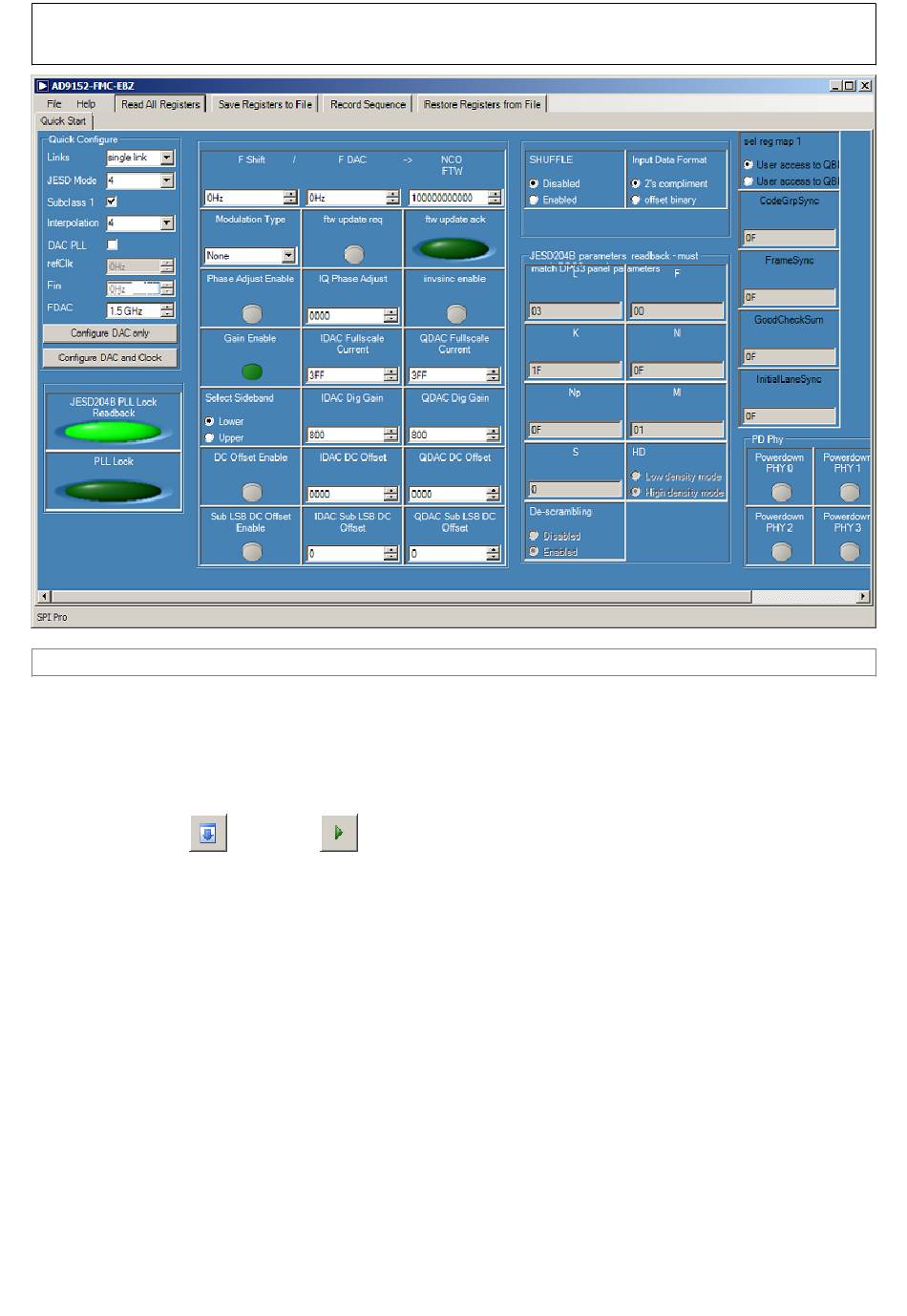

Figure 4. Fully Configured SPIPro Display
4. Select Single Tone under the Add Generated Waveforms Tab. Set Data Rate: 375Mhz, Desired
Frequency: 100Mhz, Amplitude: -10dbFS, Uncheck Unsigned Data, Check Generate Complex Data (I
and Q)
5. Click Download (
) and Play (
) in the DPG Downloader screen. The spectrum in figure 6 will
appear on all 2 DAC outputs (J17, J4, ), Serial Line Rate will be 3.75Gsps.
Rev 05 May 2015 22:48 | Page 5
