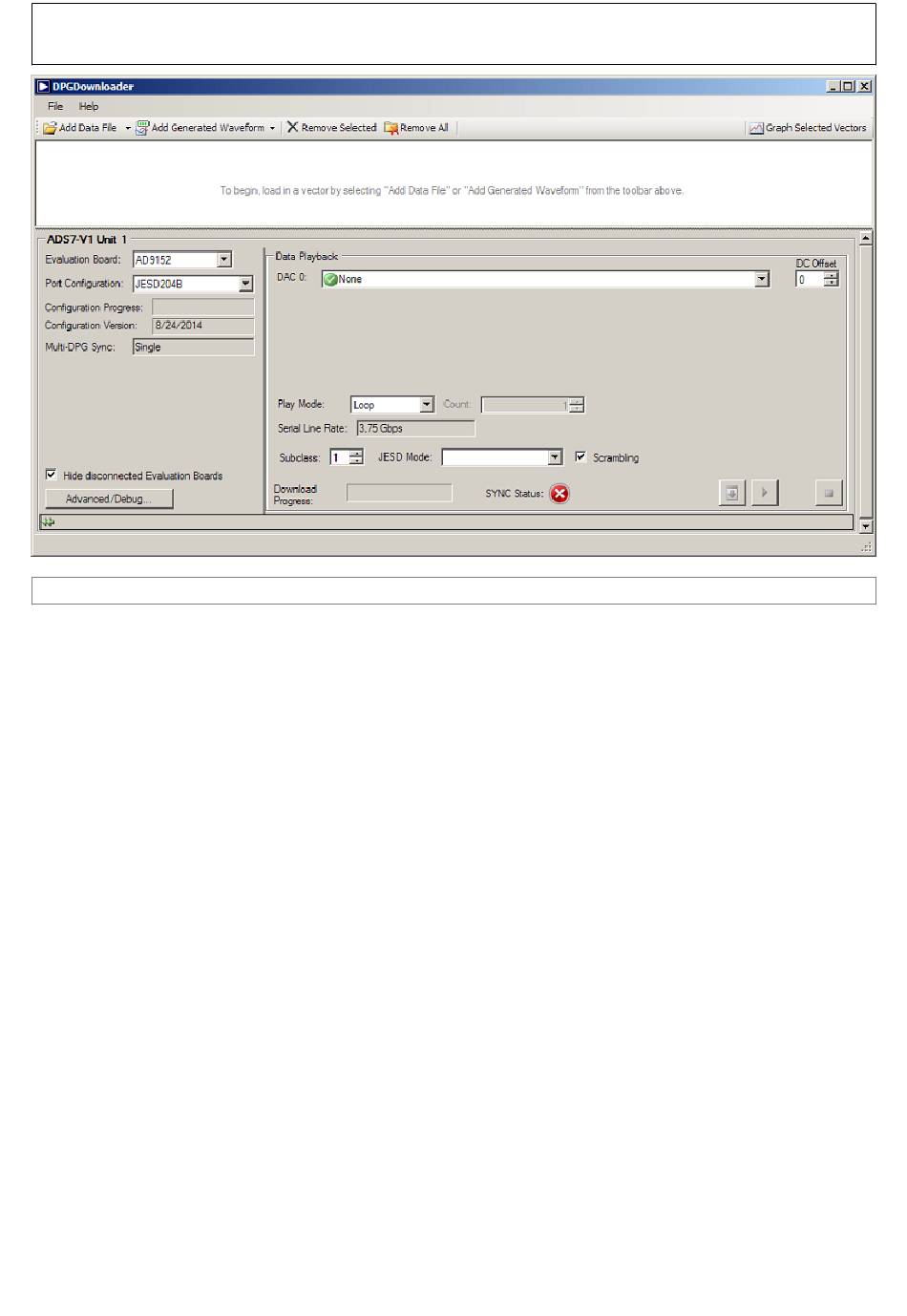

Figure 3. Initial DPG Downloader Panel
2. Open SPIPro. It will show AD9152-FMC-EBZ in the upper left hand corner.
3. Select single link, JESD mode 4, Interpolation 4. Press 'Configure DAC and Clock' button. JESD204B
PLL lock will turn green.
Rev 05 May 2015 22:48 | Page 4
