2.4 Corn bin with feeder

• Burn hazard! Hot air may comes out from the machine through the corn
supply tube (pos.1 Fig.4). DO NOT touch or reach into the corn supply
tube. KEEP OFF this area.

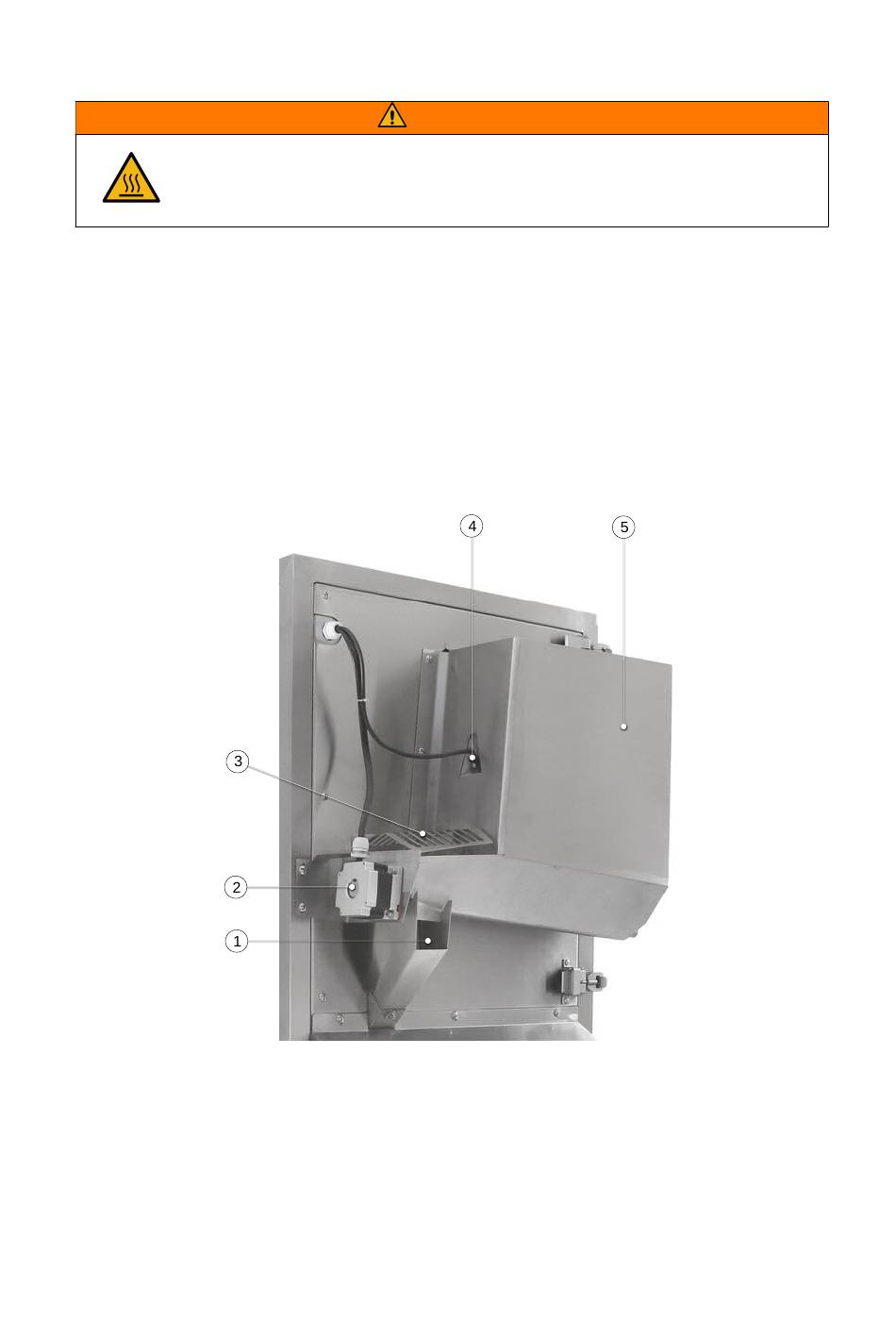

Corn bin with feeder is shown on Fig.4.
Corn kernels is loaded in the corn bin (5). Inside there is a feeding auger, that is driven by
the motor (2). When the motor (2) operates, corn kernels are being pushed to the corn supply
tube (1) that directs corn kernels into the working chamber.
Protective fixed guard (3) prevents direct access to the exposed part of feeding auger.
Photoelectric sensor (4) trips whenever the bin becomes empty. Once the sensor is tripped,
the machine notifies the operator that the bin must be refilled.
WARNING
Figure 4: Corn bin with feeder
