2.3 Control panel

• Using Emergency stop switch during normal operation might lead to
chamber clogging with popcorn, smoke formation, or machine failure.
USE EMERGENCY STOP SWITCH ONLY in case of emergency!
There are following items on control panel, see Fig.3:
1 – Turn o button; 2 – Pause button; 3 – Start button; 4 – Temperature regulator; 5 –
Clogging indicator; 6 – Low corn indicator; 7 – Feeding switch; 8 – Turbine switch; 9 – Heating
indicator; 10 – Popping indicator; 11 – Cooling indicator; 12 – Emergency stop button.
Temperature regulator
Temperature regulator is used to control temperature
in the chamber.
Light indicators
CLOGGING – chamber is clogged
LOW CORN – corn is low or no corn.
HEATING – machine is in heating mode.
POPPING (glows) – machine is in operation mode.
POPPING (blinks) – machine is in pause mode.
COOLING – machine is in cooling mode.
Switches
FEEDING – weight of a single load.
TURBINE SPD – turbine speed increment.
Push buttons
START – turns machine on.
PAUSE – turns on pause mode and resume popping
mode.
TURN OFF – turns machine in cooling mode.
EMERGENCY STOP – immediately shuts the machine
o .
WARNING
4
3
2
1
7
5
6

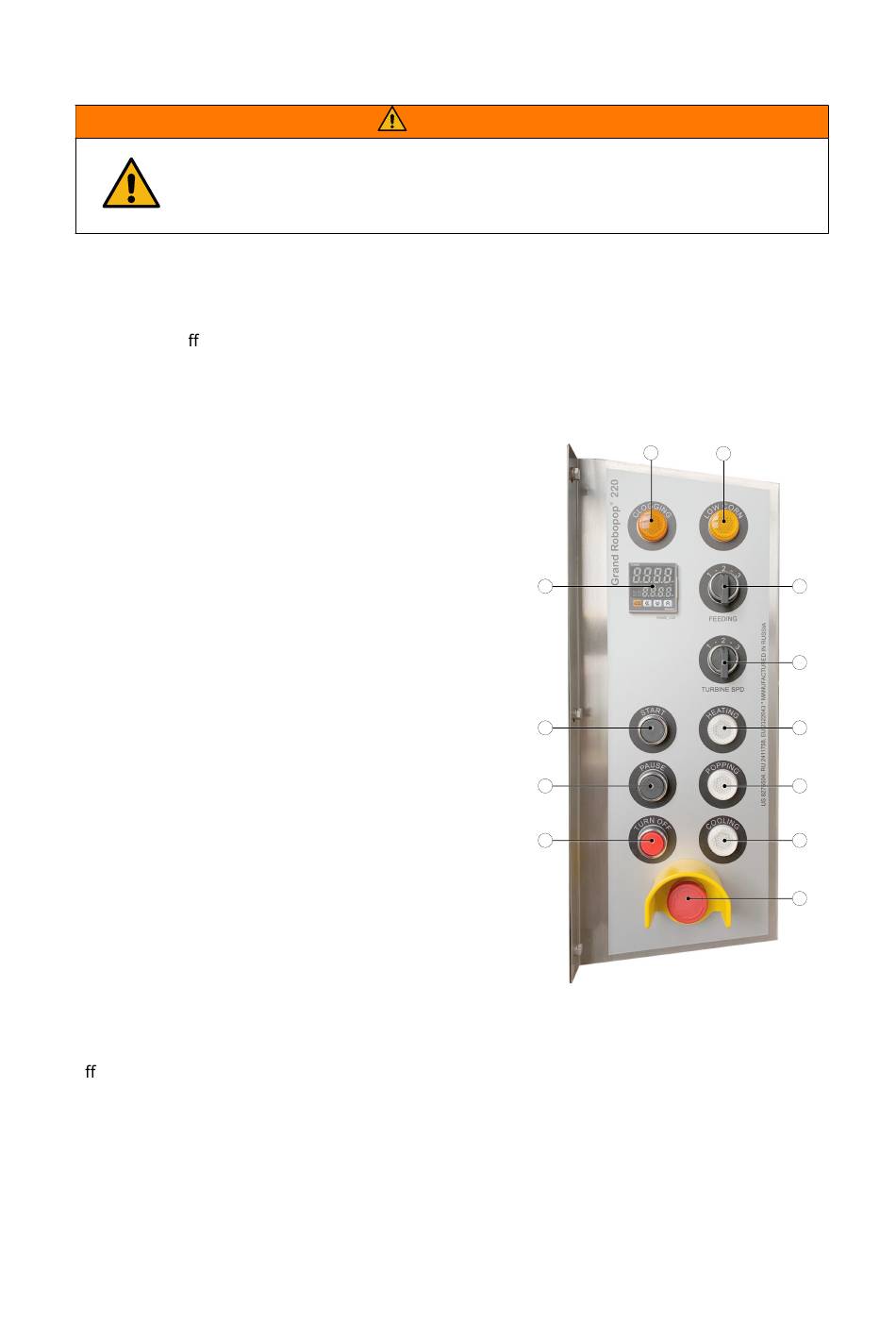

Figure 3: Control panel
7
8
9
10
11
12
