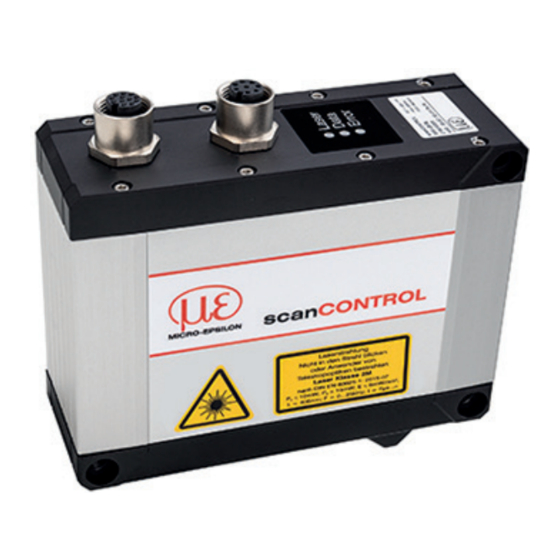

MICRO-EPSILON scanCONTROL 3010 Assembly Instructions Manual

1. Warnings
Connect the power supply and the display-/output device according to the safety
regulations for electrical equipment. The supply voltage must not exceed the specified
limits.
> Risk of injury, damage to or destruction of the sensor
Avoid shocks and impacts to the sensor. Avoid constant exposure of the sensor to dust
and splashes of water. Avoid exposure of sensor to aggressive materials (detergents,
cooling emulsions).
> Damage to or destruction of the sensor
Read the detailed operating instructions before operating the sensor.
These instructions are available online at www.micro-epsilon.com.
2. Notes on CE Marking
The following apply to the scanCONTROL 30xx:
- EU Directive 2014/30/EU
- EU Directive 2011/65/EU
The sensor is designed for use in industrial applications.
The sensor fulfills the specifications of the EMC requirements, if the instructions in the
operating instructions are followed.
3. Proper Environment
- Protection class:
- Temperature range:
ƒ Operation:
ƒ Storage:
- Humidity:
scanCONTROL 3010 / 3012
Assembly Instructions
scanCONTROL
IP67
0 ... +45 °C (+32 ... +113 °F), for free circulation of air
-20 ... +70 °C ( -4 ... +158 °F)
5 - 95 % (non-condensing)
3010 / 3012
