(H3) X 6; (H7) X; (H4) X - designer's image 211-4598 Assembly Instructions Manual

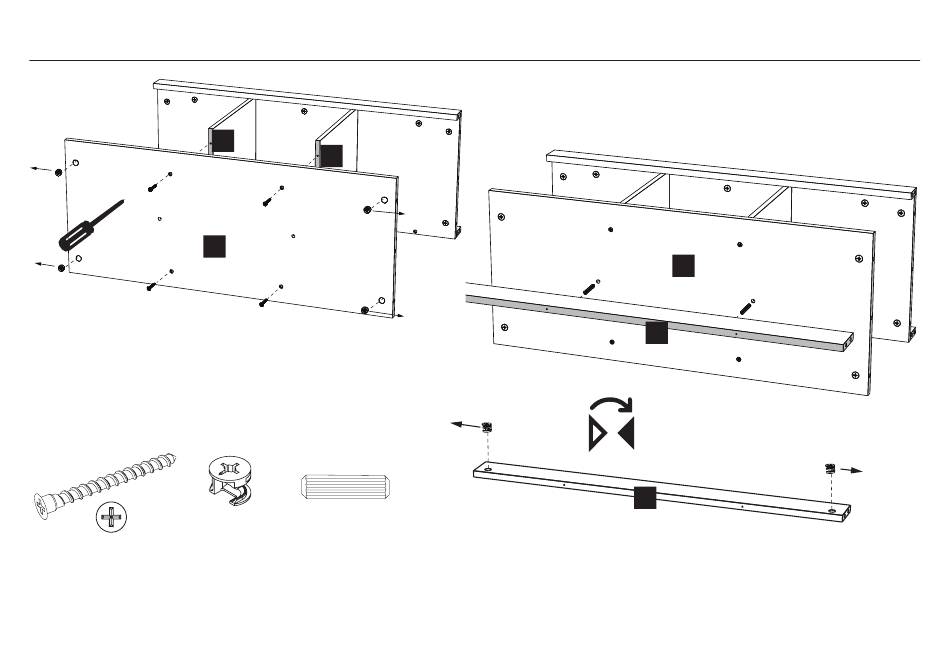

STEP 4
x4
(H1)
(H1) x 4
assembly screw
#5 mm x 38 mm
1. Insert cam lock (H3) and press to bottom of holes in bottom shelf (G). Ensure arrow on cam locks are pointing towards outer edge as shown.
2. Align bottom shelf (G) with appropriate holes in middle dividers (F) and use assembly screws (H1) to secure.
3. Insert cam lock (H3) and press to bottom of holes in bottom cleat (H). Ensure arrow on cam locks are pointing towards outer edge as shown.
4. Insert dowels (H5) into holes in bottom shelf (G) as shown. Flip bottom cleat (H) and align with appropriate holes.
8
F
F
(H3)
G

(H3) x 6

(H5) x 2
cam lock wide dowel
8 mm x 30 mm
(H5)
H
(H3)
H
G
(H5)
