(H1) X; (H5) X 16; Mm X 30 Mm; (H2) X 13 - designer's image 211-4598 Assembly Instructions Manual

A

(H2) x 13

(H3) x 7
cam post cam lock

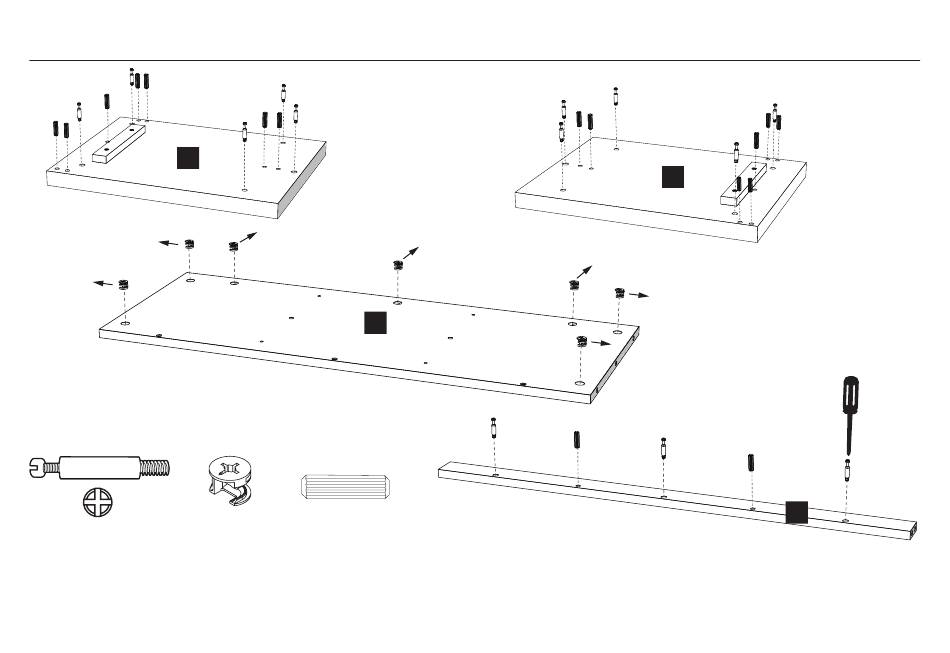

1. Secure cam posts (H2) into holes as shown. PLEASE NOTE: Cam post is secure when threads on screw are not showing.
2. Insert cam lock (H3) and press to bottom of hole. Ensure arrow on cam lock is pointing towards outer edge as shown.
3. Insert dowels (H5) into holes as shown.
(H5)
(H3)
C

(H5) x 16

wide dowel

8 mm x 30 mm

(H2)
B
(H2)
(H5)
E
STEP 1
5
