FISCHER DE46 R Series Operating Manual

Digital differential pressure switch / transmitter with colour-change lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
II 3G Ex nA IIC T4 Gc
II 3D Ex tc IIIB T125°C Dc

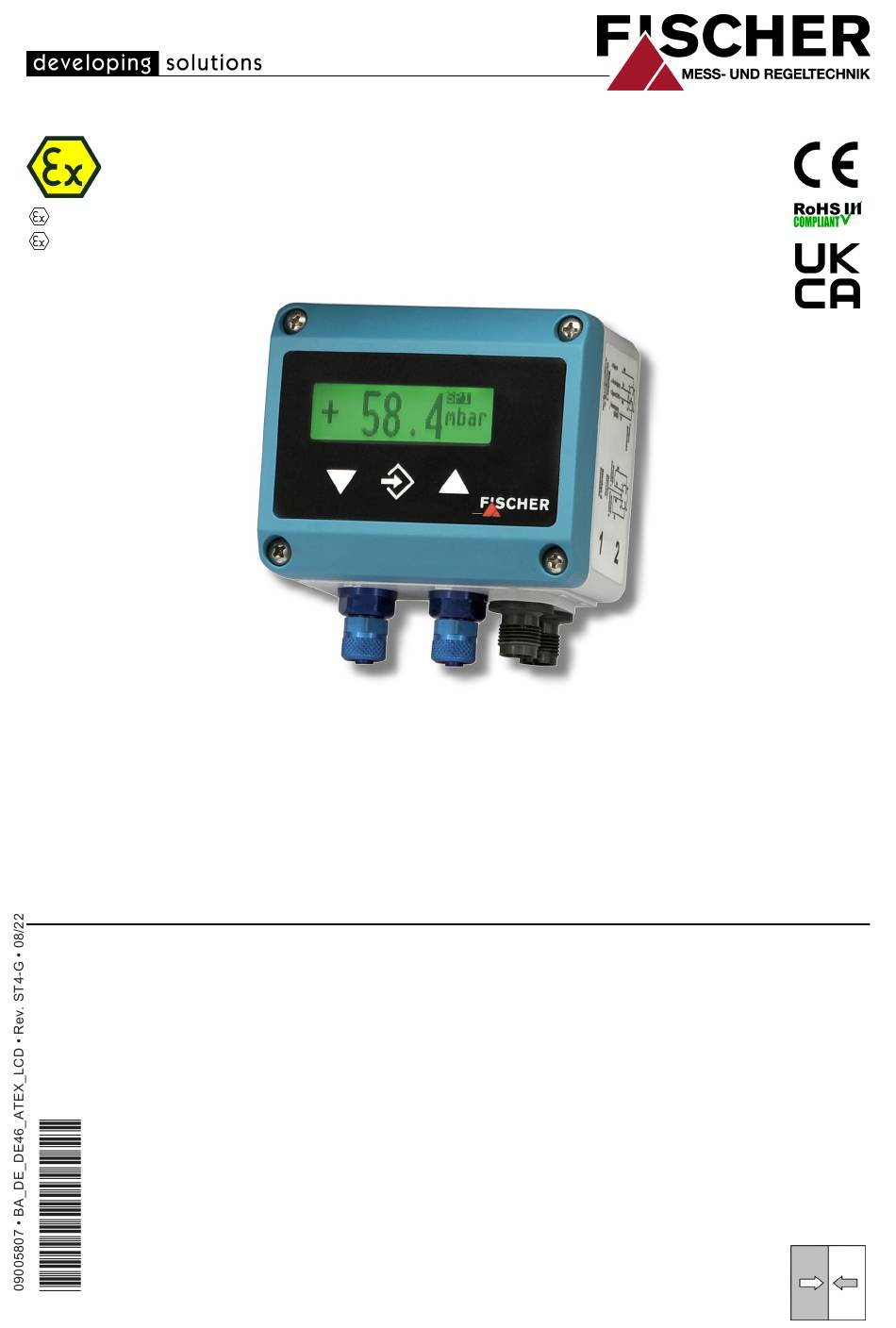

Operating manual
DE46 ... R/S
Digital differential pressure switch / transmitter
with colour-change LCD
for explosive areas
Dust explosion protection zone 22, dry dusts
Gas explosion protection zone 2, gases and vapors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE46 R Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FISCHER DE46 R Series

Summary of Contents for FISCHER DE46 R Series

  • Page 1 II 3G Ex nA IIC T4 Gc II 3D Ex tc IIIB T125°C Dc Operating manual DE46 ... R/S Digital differential pressure switch / transmitter with colour-change LCD for explosive areas Dust explosion protection zone 22, dry dusts Gas explosion protection zone 2, gases and vapors...
  • Page 2 Great care was taken when compiling the texts and illustrations; nevertheless, errors cannot be ruled out. The company FISCHER Mess- und Regeltechnik GmbH will not accept any legal responsibility or liability for this.

  • Page 3: Table Of Contents

    FISCHER Mess- und Regeltechnik GmbH Table of Content Table of Content 1 Safety instructions......................4 1.1 General........................... 1.2 Personnel Qualification ......................1.3 Risks due to Non-Observance of Safety Instructions............. 1.4 Safety Instructions for the Operating Company and the Operator .........

  • Page 4: Safety Instructions

    1 | Safety instructions FISCHER Mess- und Regeltechnik GmbH 1 Safety instructions 1.1 General This operating manual contains basic instructions for the installation, operation and maintenance of the device that must be followed without fail. It must be read by the installer, the operator and the responsible specialist personnel be- fore installing and commissioning the device.

  • Page 5: Unauthorised Modification

    FISCHER Mess- und Regeltechnik GmbH Safety instructions | 1 The instrument must be decommissioned and secured against inadvertent re- operation if a situation arises in which it must be assumed that safe operation is no longer possible. Reasons for this assumption could be: •...

  • Page 6: Pictogram Explanation

    1 | Safety instructions FISCHER Mess- und Regeltechnik GmbH 1.8 Pictogram explanation DANGER Type and source of danger This indicates a direct dangerous situation that could lead to death or serious injury (highest danger level). 1. Avoid danger by observing the valid safety regulations.

  • Page 7: Product And Functional Description

    FISCHER Mess- und Regeltechnik GmbH Product and functional description | 2 2 Product and functional description 2.1 Use as intended The DE46 is a multi-functional switching unit with an optional transmitter output. It is suitable for measuring overpressure, under-pressure and differential pres- sure in gaseous media.

  • Page 8: Part Designations

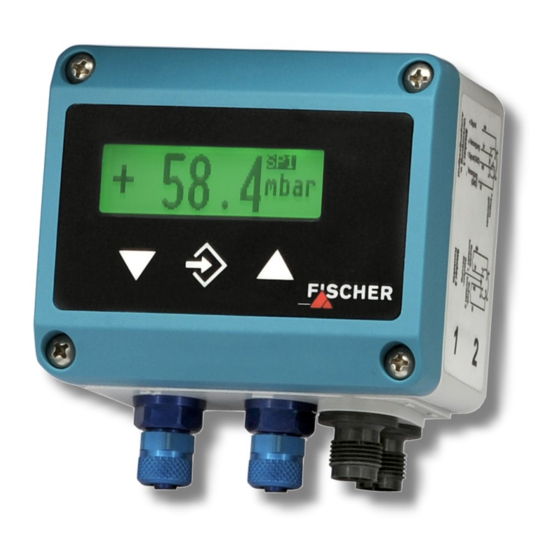

    2 | Product and functional description FISCHER Mess- und Regeltechnik GmbH 2.2 Part designations Fig. 1: DE46 with LCD ATEX 1 Foil keypad 2 LC display 3 Casing lid 4 Lower part of casing 5 M12 plug connector (connector 2) 6 M12 plug connector (connector 1)
