FISCHER DA12 Instruction Manual

Instruction Manual

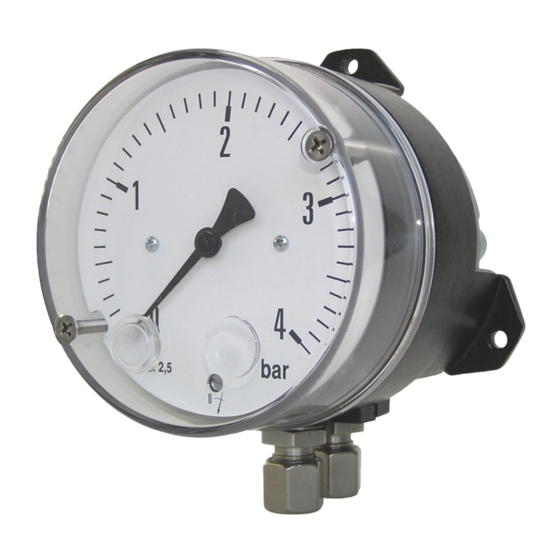

DA12 Differential Pressure Gauge

Table of Contents

1. Safety Instructions
2. Intended Applications
3. Product Description and Functions
4. Installation
5. Commissioning
6. Maintenance
7. Transport
8. Service
9. Accessories
10. Disposal
11. Specifications
12. Dimensions
13. Ordering Code
14. Supplier Declaration
1. Safety Instructions
1.1. General
personnel responsible for the equipment must
read this thoroughly before attempting to install or
operate this equipment. A copy of this manual
must always be kept accessible at the place of
work for reference by concerned personnel.
Chapter 1 (sections 1.2 through 1.7) contains ge-
neral as well as specific safety instructions. Chap-
ters 2 through 10, covering topics ranging from
intended purpose of the equipment to its final dis-
posal, also include important points relating to
safety. Overlooking or ignoring any of these safety
points can endanger humans and animals, and
possibly cause damage to other equipment.
1.2. Personnel Qualification
Personnel responsible for installation, operation,
maintenance and inspection of this product must
have the qualifications, training and experience
necessary to carry out such work on this type of
equipment.
This manual contains detailed
information about the product,
and instructions for its installati-
on, operation and maintenance.
Operators and other technical
1.3. Risks of Disregarding Safety Instruc-
tions
Disregarding safety instructions, use of this pro-
duct for purposes for which it is not intended, and/
or operation of this product outside the limits spe-
cified for any of its technical parameters, can result
in harm to persons, the environment, or the plant
on which it is installed. Fischer Mess- und Regel-
technik GmbH will not be responsible for conse-
quences in such circumstances.
1.4. Safety Instructions for Operators
Safety instructions for the proper use of this pro-
duct must be followed. This information must be
available at all times to by personnel responsible
for installation, operation, maintenance and in-
spection of this product. Adequate steps must be
taken to prevent the occurrence of hazardous con-
ditions that can be caused by electric energy and
the convertible energy of the process media. Such
conditions can, for example, be the result of impro-
per electrical or process connections. Detailed in-
formation is available in relevant published norms
(DIN EN, UVW in Germany; and equivalents in
other countries), industrial standards
such as DVWG, Ex-, GL-, VDE guide-
lines, as well as regulations of the local
authorities (e.g., EVUs in Germany).
