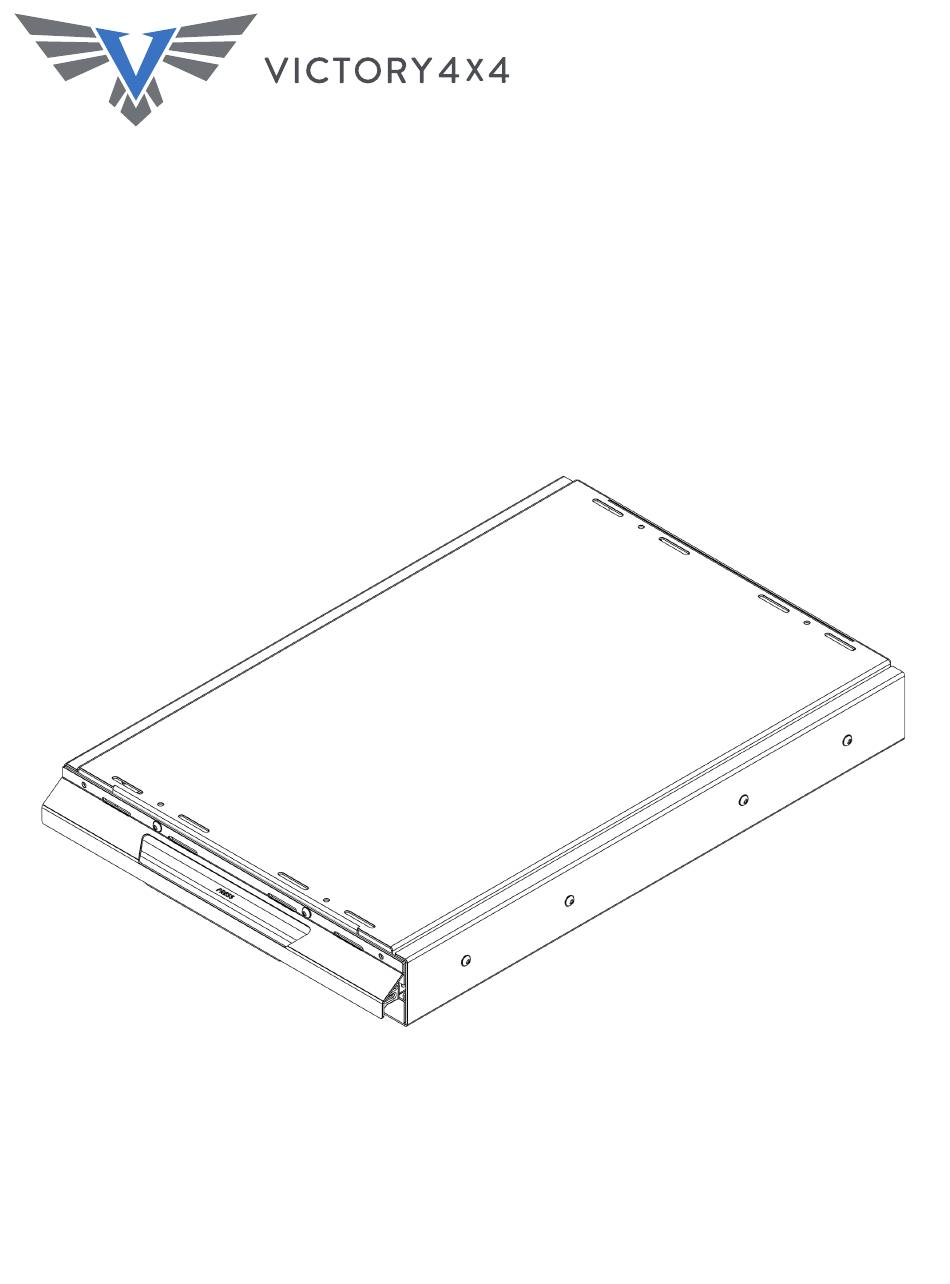

O FF-G R ID FR I DGE SL I DE
INS TAL L ATION IN S TR UC T ION S
Please read the mounting instructions below carefully before attempting to install.
Check out the install video on the product page for more detailed information.
Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road
products. Be sure to rate and review our product online. If you have any questions or are missing parts, please
don't hesitate to call us at 269-459-8447!
Advertisement
Related Manuals for Victory 4x4 OFF-GRID FRIDGE SLIDE
Summary of Contents for Victory 4x4 OFF-GRID FRIDGE SLIDE
- Page 1 Check out the install video on the product page for more detailed information. Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
-
Page 2: I Nclu D E D Hardware
I NCLU D E D HARDWARE 1/4"-20 X 1/2" 1/4"-20 X 3/8" Button Head Button Head 1/4” ID Black 1/4"-20 Washer Serr. Flange Nut Loctite Packet 1/4" Flat Nuts... -
Page 3: Included Parts
INCLUDE D PARTS 1L/1R... - Page 4 A SSE MBLY Start by taking the (2) provided slides and bolt each one to the insides of the provided floor mounts, making sure the red handles are pointing out, as shown in the orientation below. Make sure to use (4) each per side of the provided shorter 1/4”...
- Page 5 AS SE M BLY Once you have that assembled, you can now bolt the cabinet assembly to your floor through the bottom mounting holes on each side using the longer 1/4” button heads and washers to secure into nutstrips. For more details on our vehicle specific floor systems, be sure to check out our product page on our website and watch our install video.
- Page 6 A SSE MBLY...
- Page 7 AS SE M B LY Once you have your bracket installed to the slides in the orientation of your choice, you can now bolt the back piece to your bracket. To do so use the provided 1/4” button heads, washers and nuts as shown in the orientation below.
- Page 8 A SS EM BLY Once the back piece to the slide platform is attatched, you can now bolt the front piece to your fridge slide on. Take the provided front bracket and (2) 1/4” button heads, washers and flange nuts and assemble in the orientation shown below.
- Page 9 A SSE MBLY You are now ready to assemble the handle system around the red latches on the slides. To do so, use (4) of the provided button heads and secure them through the “PRESS” bracket into the pem nut bracket and sandwhich them around the red grab handles so they are grabbing them, as shown in the orientation below.
- Page 10 AS SE M B LY Once the handle is assembled, you now need to place the cover over the assembly using (6) each of the provided button heads, washers and flange nuts. This is also the step you need to remove the hardware from step 5 if your tray is facing upright, and then place back over the cover piece.
- Page 11 This installation guide shows how to assemble one fridge slide assembly, but the possibilities are endless! Check out the product page for inspiration on how to maximize your space by using a combination of Off-Grid Drawers and our Off-Grid Fridge Slide!
