USING THE ADL5580-EVALZ EVALUATION BOARD

LOSSES AND SIGNAL-TO-NOISE RATIO (SNR)
DEGRADATION
The ADL5580 provides a nominal 10 dB of voltage gain defined
between the input and output pins, which translates to a power
gain of 13 dB because the input impedance is twice the output
impedance. The resistive impedance matching converts the
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
10dB
VOLTAGE GAIN
100Ω
IN
DIFFERENTIAL

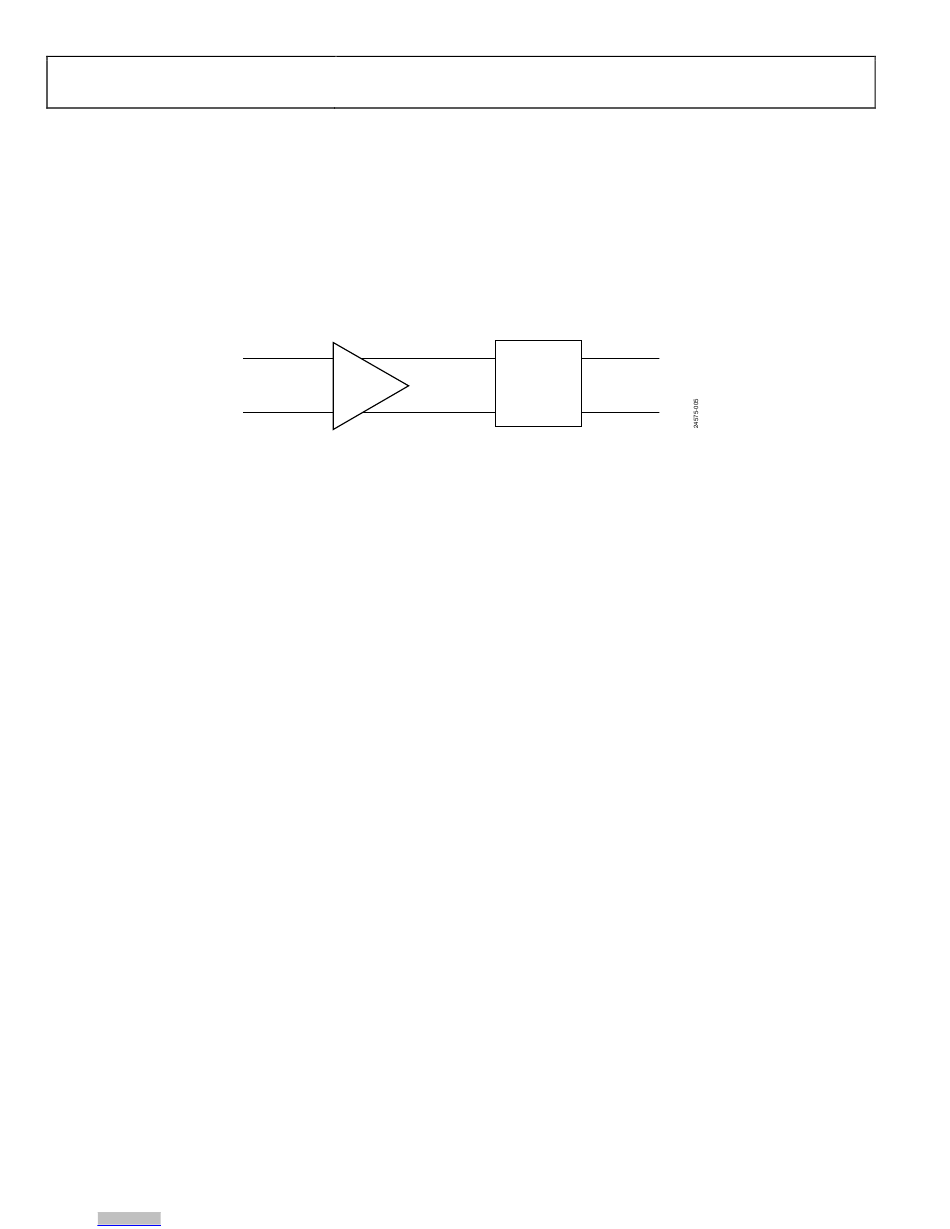

Figure 9. Losses and SNR Degradation
ADL5580-EVALZ
50 Ω differential output to a more common 100 Ω. However,
this resistive impedance matching adds 7.7 dB of attenuation
that must be considered. The miscellaneous components of the
ADL5580-EVALZ can add to the signal losses and degrade the SNR
as well.
7.7dB
POWER ATTENUATION
50Ω
IMPEDANCE
MATCH
DIFFERENTIAL DIFFERENTIAL
