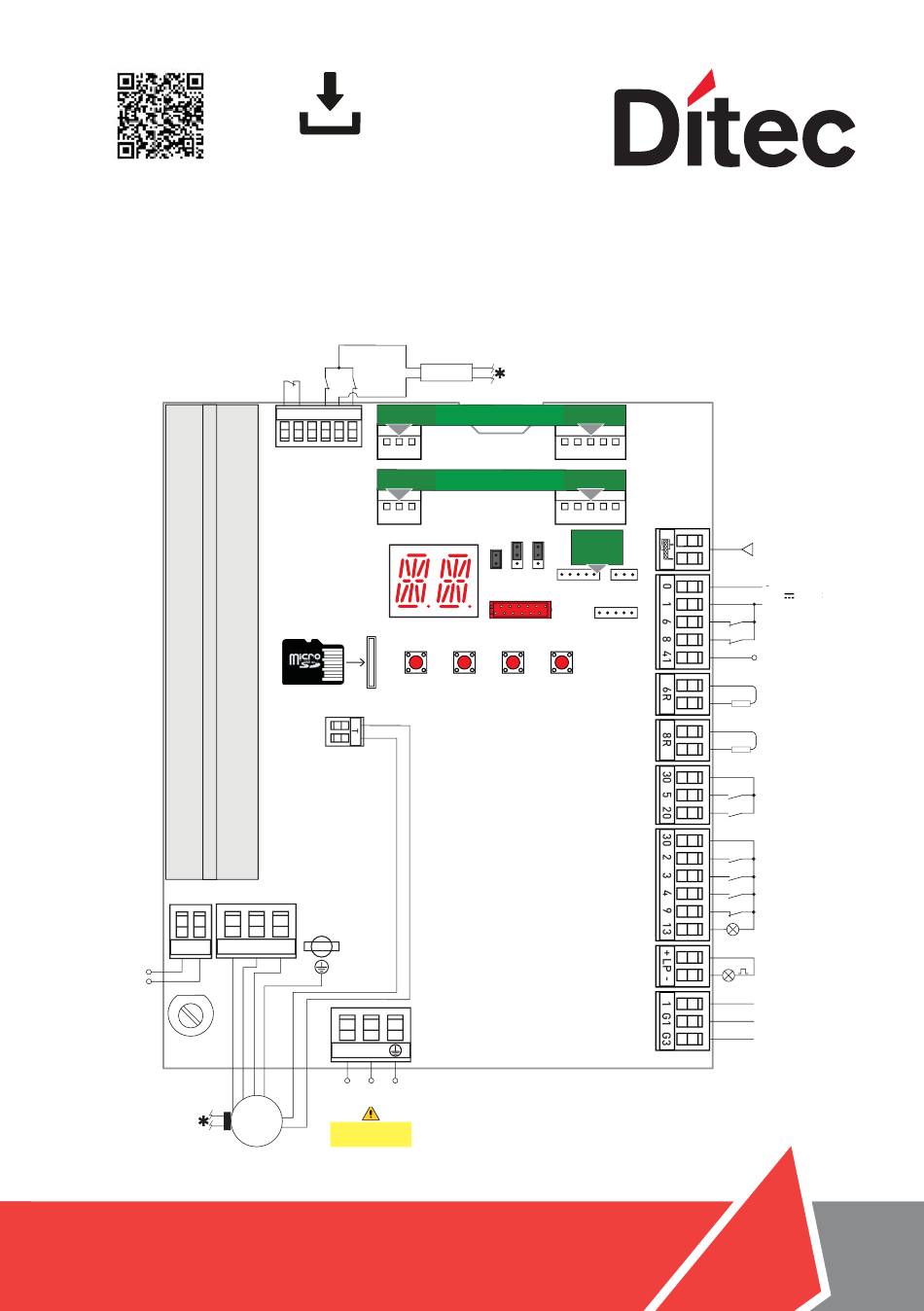

IP2336EN • 2022-09-30
Ditec LCU43A - LCU43B
Installation manual for control panel for the CROSS20VEI and
CROSS35VEI automation systems with 230 V 3
(Translation of the original instructions)
-F +F
U
Freno
Brake
(solo CROSS20VEI)
(CROSS20VEI only)
F1 T5A
www.ditecautomations.com
Limit switch
Finecorsa
Finecorsa
Limit switch
Chiude
Apre
closes
opens
Microswitch
Release
microswitch
di sblocco
0 SW 0 11 0 12
AUX1
AUX2
J5
ESC
W
V
L
N
Alimentazione
Power supply
230 V~ 50/60 Hz
230 V~ -50/60 Hz
230 V 3~
respect
polarity L-N
AUX T
SCHEDA AD INNESTO
PLUG-IN BOARD
SCHEDA AD INNESTO
PLUG-IN BOARD
1
1
ZENPRS
ZENRS
30
30
JR1
AUX2 AUX1
RADIO RX
COM
KEYPAD
ENTER
DOWN
UP
motor
˜
Antenna
Antenna
Uscita 24 V
24 V
output
+
Arresto di sicurezza
Safety stop
Sicurezza in chiusura
Closing safety device
Safety test
Arresto di
Safety stop 8K2
sicurezza 8K2
Sicurezza in
Closing safety device 8K2
chiusura 8K2
Passo-passo
Step-by-step
Apertura parziale
Partial opening
Chiusura
Automatic closure
automatica
Apertura
Opening
Closure
Chiusura
Stop
Stop
Lampada stato
Automation status lamp
automazione
Lampeggiante
Flashing light
+
ingresso configurabile
Configurable input
uscita configurabile
Configurable output

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCU43A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DITEC LCU43A

Summary of Contents for DITEC LCU43A

  • Page 1 Last version of this manual IP2336EN • 2022-09-30 Ditec LCU43A - LCU43B Installation manual for control panel for the CROSS20VEI and CROSS35VEI automation systems with 230 V 3 motor ˜ (Translation of the original instructions) Limit switch Finecorsa Finecorsa Limit switch...

  • Page 2: Table Of Contents

    Contents General safety precautions for the user ........................3 General safety precautions ............................5 EU Declaration of Conformity ............................7 UK Declaration of Conformity .............................8 Safety functions ..............................9 Technical specifications ...........................9 Applications ................................9 Installation and electrical connections ......................10 Standard installation ............................12 Standard installation connections diagram ......................13 Commands and safety devices ........................14 Safety inputs ................................15 Limit switch inputs ..............................15...

  • Page 3: General Safety Precautions For The User

    General safety precautions for the user WARNING! Important safety instructions • Follow these instruc- tions carefully. Failure to respect the information given in this manual may lead to serious injury to people or damage to the device • Keep these instructions for future reference WARNING: disconnect the power supply before carrying out any cleaning or maintenance task This manual, and those relating to accessories, can be downloaded from the website...
  • Page 4 must be supervised to ensure they do not play with the device itself, nor play or remain within the operating range of the motorised door or gate. Keep the remote controls and/or any other control device out of the reach of children, to avoid any accidental activation of the motorised door or gate •...

  • Page 5: General Safety Precautions

    General safety precautions WARNING! Important safety instructions. Follow these instructions carefully. Failure to respect the infor- mation given in this manual may lead to serious injury to people or damage to the device. Keep these instructions for future reference. This manual, and those relating to accessories, can be down- loaded from the website www.ditecautomations.com This installation manual is intended for qualified personnel only •...
  • Page 6 gate • The safety devices must protect any possible crushing, shearing, trapping or general danger areas of the motorised door or gate. Apply the legally required signs to identify the danger areas • The motorised door or gate ID data must be visible on every installation •...

  • Page 7: Eu Declaration Of Conformity

    SE-261 44 Landskrona Sweden Declare under our sole responsibility that the types of equipment with names: Ditec LCU43A, Ditec LCU43B Control panel for CROSS20VEI and CROSS35VEI automation systems with 230 V 3 ~ motor Comply with the following directives and their amendments:...

  • Page 8: Declaration Of Conformity

    SE-261 44 Landskrona Sweden Declare under our sole responsibility that the types of equipment with names: Ditec LCU43A, Ditec LCU43B Control panel for CROSS20VEI and CROSS35VEI automation systems with 230 V 3 ~ motor Comply with the following directives and their amendments: •...

  • Page 9: Safety Functions

    1. Safety functions The Ditec LCU43A and LUC43B control panel has the following safety functions: - obstacle recognition with force limiting; The maximum response time of the safety functions is 0.5s. The reaction time to a faulty safety function is 0.5s.

  • Page 10: Installation And Electrical Connections

    3. Installation and electrical connections • Before connecting the power supply, make sure the plate data correspond to those of the mains power supply. • An omnipolar disconnection switch with a contact opening distance of at least 3mm must be fitted on the mains supply.
  • Page 11 CROSS20VEI Fig. 3.1 230 V~ - 50 / 60 Hz Commands CROSS35VEI Fig. 3.2 230 V~ - 50 / 60 Hz Commands...

  • Page 12: Standard Installation

    4. Standard installation Ref. Code Description Cable Transmitter Flashing light 230 V 2 x 1 mm² FL24 Flashing light 24 V RG-58 coax Antenna (integrated in the flashing light) cable (50 Ω) AXK5 Key selector switch 4 x 0.5 mm² AXR7 Transponder AXK4...

  • Page 13: Standard Installation Connections Diagram

    4.1 Standard installation connections diagram...

  • Page 14: Commands And Safety Devices

    5. Commands and safety devices You are advised to read paragraph 11 for all the details about the possible adjust- ments. WARNING: terminal 30 (common positive for commands) has the same functions as terminal 1 and for this reason, the commands visible on the display are indicated with 1-5, 1-3, 1-4, etc.

  • Page 15: Safety Inputs

    5.1 Safety inputs Command Function Description When selecting → → , connect the output contact of SAFETY STOP the safety device to terminals 1-6 on the control panel (in series with the photocell output contact, if installed). When selecting → →...

  • Page 16: Outputs And Accessories

    6. Outputs and accessories Value of Output Description accessories Power supply to accessories. Output for power supply to external accessories. NOTE: the maximum power absorption of 0.5 A corresponds to the sum 24 V 0.5A of all terminals 1. The "gate open" indicator light (30-13) is not calculated in the 0.3A indicated above. The maximum value to be considered is 3W.

  • Page 17: Jumper Setting

    Value of Output Description accessories COM - Allows the operating configurations to be saved using the function → The saved configurations can be recalled using the function → COM - The storage module allows the remote controls to be saved in the memory. BIXMR2 If the control panel is replaced, the storage module being used can be inserted in the new control panel.

  • Page 18: Using Menus

    8. Using menus NOTE: pressure on the keys may be quick (less than 2 s) or prolonged (longer than 2 s). Unless specified otherwise, quick pressure is intended. To confirm the setting of a parameter, prolonged pressing is necessary. 8.1 Switching the display ON and OFF The procedure to switch on the display is as follows: ENTER •...

  • Page 19: Navigation Keys

    8.2 Navigation keys • UP and DOWN keys: for scrolling through level one or two menus and through the list of possible values for a specific parameter. • ENTER key: accesses the next menu level or the list of possible values for a menu parameter. Press and hold to confirm selection of the currently displayed parameter value.

  • Page 20: Menu Map

    8.3 Menu map Opening direction Automatic closure RT= right enabling Adjustment of obstacle LF= left recognition time at normal speed Automation status Contact command at switch-on operation 30-5 Adjustment of acceleration Reversal safety Automatic closure time during opening operation enabling Activation of anti- Automatic Adjustment of acceleration...
  • Page 21 Courtesy light switch-on Selection of function CH2 of Current visualisation time the stored remote control Motor Visualisation of Switch-on time for Selection of function CH3 of maximum and minimum independently commanded the stored remote control temperatures recorded courtesy light Limit switch test. Visualises Selection of function CH4 of FA/FC only (N.O.

  • Page 22: Setting Up Product For First Use

    9. Setting up product for first use Use the WIZARD (WZ) wizard or the level two AT menu (automatic configuration) to set the product up rapidly with a quick configuration procedure [see parag. 9.2]. For detailed, customised configuration, use the main menus 9.1 Wizard configuration menu (WZ) To access the WZ quick configuration wizard menu: Hold down the ENTER button for 2 seconds.
  • Page 23 VC - Closing speed. [cm/s] CROSS20VEI 10 - Minimum. 30 - Maximum. CROSS35VEI 10 - Minimum. 25 - Maximum. D6 - Selection of device connected to terminals 1-6 • NO: none. • SE: safety sensing edge (if contact 1-6 opens, 10 cm disengagement is implemented after stop). •...

  • Page 24: Basic Start-Up Example

    To save the configuration: In the CO parameter select YS (yes) and press the ENTER button for 2 seconds. After saving, a board POWER RESET cycle is performed automatically: ENTER ENTER → → for 2 sec To quit without saving changes: Select the option NO for the parameter CO and then press and hold ENTER for 2 seconds ENTER ENTER...

  • Page 25: Frequently Used Menu Sequences

    10. Frequently used menu sequences 10.1 Enabling the configurations Step-by-step mode without automatic closure (residential use) DOWN ENTER DOWN ENTER → → → → → → Step-by-step mode with automatic closure 1 min (residential use) [standard settings] DOWN ENTER DOWN ENTER →...

  • Page 26: Synthetic Diagram Of Operation

    10.5 Synthetic diagram of operation WARNING: the parameters shown in the figure must be adjusted to comply with exerted forces as outlined in EN 12453. VA/VC TD/TU PO/PC TD/TU PO/PC TIME START-UP PHASE Pre-flashing time: parameters WO (opening) and WC (closure) Acceleration time: acceleration time adjustment - TA (opening) and TQ (closure) Start time (without detecting obstacles): fixed at 3 s (opening and closure) •...

  • Page 27: Configuration And Settings Menu

    11. Configuration and settings menu NOTE: it is possible that, owing to the type of automation and control panel, certain menus are not available. 11.1 Main menu Display Description WZ - Quick configuration wizard Quick configuration menu AT - Automatic Configurations. The menu allows you to manage the automatic configurations of the control panel.

  • Page 28: Second Level Menu - At (Automatic Configurations)

    11.2 Second level menu - AT (Automatic Configurations) Display Description Selections available DM - Direction mode RT - open to the right LF - open to the left H0 - Predefined setting, residential use 0. This selection loads predefined values for certain standard parameters: C5 - step-by-step control/opening operation: step-by-step RM - remote control operation:...

  • Page 29: Second Level Menu - Bc (Basic Configurations)

    11.3 Second level menu - BC (Basic Configurations) Selections Display Description available AC - Enabling of automatic closure OF - Disabled ON - Enabled 1-2 - Dependent on input 30-2 hR - Push-to-operate “dead man” closure (independently of setting of parameter R9) hr - Push-to-operate “dead man”...

  • Page 30: Additional Bc Level Parameters That Can Be Configured (Available With → Enabled)

    11.3.1 Additional BC level parameters that can be configured (availa- ble with → enabled) Display Description Selections available C5 - Operation of command associated with contact 30-5 (wakeup from stand-by) 1-3 - Opening 1-5 - Step-by-step LG - Courtesy light command NO - Input 5 disabled 35 - Operation of command associated with contact 30-3 1-3 - Opening...

  • Page 31: Second Level Menu - Ba (Basic Adjustment)

    11.4 Second level menu - BA (Basic Adjustment) Display Description Selections available MT - Display of type of automation. 20 - Motor with 2000 kg capacity (CROSS20VEI). 35 - Motor with 3500 kg capacity (CROSS35VEI). NOTE: this parameter is DISPLAY only. TC - Setting of automatic closing time.

  • Page 32: Additional Ba Level Parameters That Can Be Configured (Available With → Enabled)

    Display Description Selections available R2 - Adjustment of the thrust during CLOSURE [A] CROSS20VEI Stops the movement with disengagement and alarm OE if the motor current exceeds the threshold for a time greater than parameter DT; the next operation will be carried out in learning mode. CROSS20VEI 3.5 - Minimum.
  • Page 33 Display Description Selections available OB - Adjustment of slowdown distance during opening. [cm] Indicates the distance from the end of the opening stroke where the deceleration ramp begins. 05 - Minimum. 99 - Maximum. OB - Adjustment of slowdown distance during closing. [cm] Indicates the distance from the end of the closing stroke where the deceleration ramp begins.

  • Page 35: Second Level Menu - Ro (Radio Operations)

    11.5 Second level menu - RO (Radio Operations) Display Description SR - Remote control storage. You can directly access the Remote control storage menu even with the display turned off, but only with the Display visualisation mode option set to 00 or 03: - for transmitting a remote control not present in the memory;...

  • Page 36: Additional Configurable Ro Level Parameters Available With Enabled

    11.5.1 Additional configurable RO level parameters available with → enabled Selections Display Description available C1, C2, C3, C4 - Selection of CH1, CH2, CH3, CH4 function of stored remote control. NO - No setting selected 1-3 - Opening command 1-4 - Closure command 1-5 - Step-by-step control P3 - Partial opening command LG - Courtesy light on/off command...

  • Page 37: Second Level Menu - Sf (Special Functions)

    11.6 Second level menu - SF (Special Functions) Display Description CU - Visualising the control panel logic and power firmware versions. ENTER → → → → → Logic firmware 1.1.00 Power firmware 1.6 SV - Saving user configuration on control panel storage module and/or on Selections available microSD card.

  • Page 38: Additional Configurable Sf Level Parameters Available With Enabled

    11.6.1 Additional configurable SF level parameters available with → enabled Display Description SP - Setting the password. ENTER ENTER DOWN → → → → → [example] NOTE: this can only be selected when the password is not set. Setting the password prevents unauthorised personnel from accessing selections and adjust- ments.
  • Page 39 Display Description ED - Enabling of diagnostics Enables the periodic saving of data on the microSD card, for diagnostic use. NO - Disabled. 01 - Internal use (DO NOT USE). 02 - List of events on microSD card. SU - Safe removal of the microSD card. IM - Motor current display If a dot appears to the right of the displayed figures, this means that the Power Boost is activated.

  • Page 40: Second Level Menu - Cc (Cycles Counter)

    11.7 Second level menu - CC (Cycles Counter) Display Description CV - Display of total operations counter. ENTER 182 operations [example] → → → → CP - Display of partial operations counter. ENTER 716 operations [example] → → → → CH - Display of power supply hour counter.

  • Page 41: Second Level Menu - Em (Energy Management)

    11.8 Second level menu - EM (Energy Management) Selections Display Description available ES - “Green Mode” (energy-saving) (disconnection of accessories connected to terminals 0-1 when the automation is in standby). ON - Enabled (the red point on the right of the display flashes every 5 s. Outputs +LP- and 30-13 are not managed in low-consumption mode).

  • Page 42: Additional Ap Level Parameters That Can Be Configured (Available With → Enabled)

    Display Description Selections available 68 - Selection of the device simultaneously connected to terminals 1-6 and 1-8. NO - None. SE - Safety edge. S41 - Safety edge with safety test. If different from NO, the simultaneous opening of inputs 1-6 and 1-8 causes: - movement stop and reversal during a closing operation.
  • Page 43 Display Description Selections available G1 - Setting the G1 input mode NO - Absent 1-3 - Opening 1-5 - Step-by-step 1-6 - Safety stop 1-8 - Input 1-8 (safety reopening) dependent on setting → SY - Synchronism input PG - Enabling interlocked automation opening control request (see examples of applications).
  • Page 44 Display Description Selections available TN - Setting of intervention temperature for NIO electronic anti-freeze system and automatic HS ramps [°C] This value does not refer to the ambient temperature, but to the internal control panel temperature. NOTE: With parameter the highest/lowest temperature reached by the control unit can be checked.

  • Page 45: Diagnostics

    12. Diagnostics 12.1 Data Logging integrated in the card The Ditec LCU43A / LCU43B control panel is equipped with an internal system which allows the installer to check whether any alarms have been triggered, see how many times each alarm has been triggered, and view a log of the last twenty alarms.

  • Page 46: Extended Data Logging On Microsd

    (in the LCU43A / LCU43B .log file in the LCU43A_LOG / LCU43B_LOG folder). The recorded logs can be viewed by inserting the microSD in a PC and opening the LCU43A / LCU43B .log file using the Amigo Ditec software.
  • Page 47 Grapf event 57 (mar 19 apr 22 11:44)

  • Page 48: Examples Of Application For Parallel Automations

    13. Examples of application for parallel automations The parallel connection synchronises opening, closure and reopening following an obstacle during closure, and the activation of the flashing lights. For an obstacle during opening, the safety devices (safety edges) are each installed on the relative wing and they act independently.
  • Page 49 Apertura Opening Closure Chiusura Stop STOP Lampada stato Automation status automazione lamp Lampeggiante Flashing light LCU43A / LCU43B Master GOPAV Antenna Antenna AUX1 Output Uscita 24 V Safety stop Arresto di sicurezza Closing safety device AUX2 Safety test Arresto di...

  • Page 50: Examples Of Application For Interlocked Automations With One-Way Or Two-Way Transit, Without Presence Detection

    13.1 Examples of application for interlocked automations with one-way or two-way transit, without presence detection With these settings, command 1-3 launches an opening operation on the automation it is connected to, with closure after the time set with > Once the delay time set with >...
  • Page 51 Apertura Opening Closure Chiusura Stop STOP Automation status Lampada stato automazione lamp Lampeggiante Flashing light LCU43A / LCU43B Master Antenna Antenna AUX1 Output Uscita 24 V Arresto di sicurezza Safety stop Sicurezza in chiusura Closing safety device AUX2 Safety test...

  • Page 52: Examples Of Application For Interlocked Automations With One-Way Transit, With Presence Detection

    13.2 Examples of application for interlocked automations with one-way transit, with presence detection With these settings, command 1-3 launches an opening operation on the MASTER automation, with closure after the time set with > only once the vehicle has activated the detection device installed between the two automations (e.g.
  • Page 53 Apertura Opening Closure Chiusura Stop STOP Automation status Lampada stato automazione lamp Lampeggiante Flashing light LCU43A / LCU43B Master Antenna Antenna AUX1 Output Uscita 24 V Arresto di sicurezza Safety stop Sicurezza in chiusura Closing safety device AUX2 Safety test...

  • Page 54: Signals Visualised On The Display

    14. Signals visualised on the display NOTE: it is possible that, owing to the type of automation and control panel, certain visualisations are not available. 14.1 Display of automation status NOTE: the automation status display mode is only visible with Display visualisation mode set to 02.

  • Page 55: Messages Visible If G1= Sy

    P3 - Partial opening command. RV - Enable/disable built-in radio receiver via RDX. 3P - Opening command with hold-to-run. MQ - Magnetic limit switch learning operation in progress. 4P - Closing command with hold-to-run. HT - Motor heating (NIO function) in progress. RX - Radio reception (from any memorised JR1 - Change in jumper JR1 status.

  • Page 56: Visualisation Of Alarms And Faults

    14.3 Visualisation of alarms and faults WARNING: the visualisation of alarms and faults is possible with any visualisation selection. The signalling of alarm messages takes priority over all other displays. Type of Display Description Operation Type of alarm alarm M3 - Automation blocked or opening Check the mechanical parts Non-blocking if it occurs less than 3...
  • Page 57 Type of Display Description Operation Type of alarm alarm I6 - Excessive voltage 0-1 (faulty Replace the control panel. Blocking voltage regulator). I7 - Internal parameter error - value Reset. Blocking - If the problem persists, replace the outside limits. control panel.
  • Page 58 Type of Display Description Operation Type of alarm alarm R0 - Storage module installed con- To save the system configurations taining over 100 stored remote on the storage module, delete any controls. stored remote controls and bring the total to less than 100. Set WARNING: the →...

  • Page 59: Troubleshooting

    15. Troubleshooting Alarm signal- Problem Possible cause Operation ling The electronic panel No power supply. Check the power supply cable and the does not switch on. relative wiring. Overload on output 0-30. Disconnect any loads connected to ter- minal 30. T h e a u t o m a t i o n No power.

  • Page 60: Maintenance

    16. Maintenance The control panel doesn't require any special maintenance. Make regular checks to ensure the seals on the box and the electrical connections are in good condition. All the rights concerning this material are the exclusive property of ASSA ABLOY Entrance Systems AB. Although the contents of this publication have been drawn up with the greatest care, ASSA ABLOY Entrance Systems AB cannot be held responsible in any way for any damage caused by mistakes or omissions in this publication.
