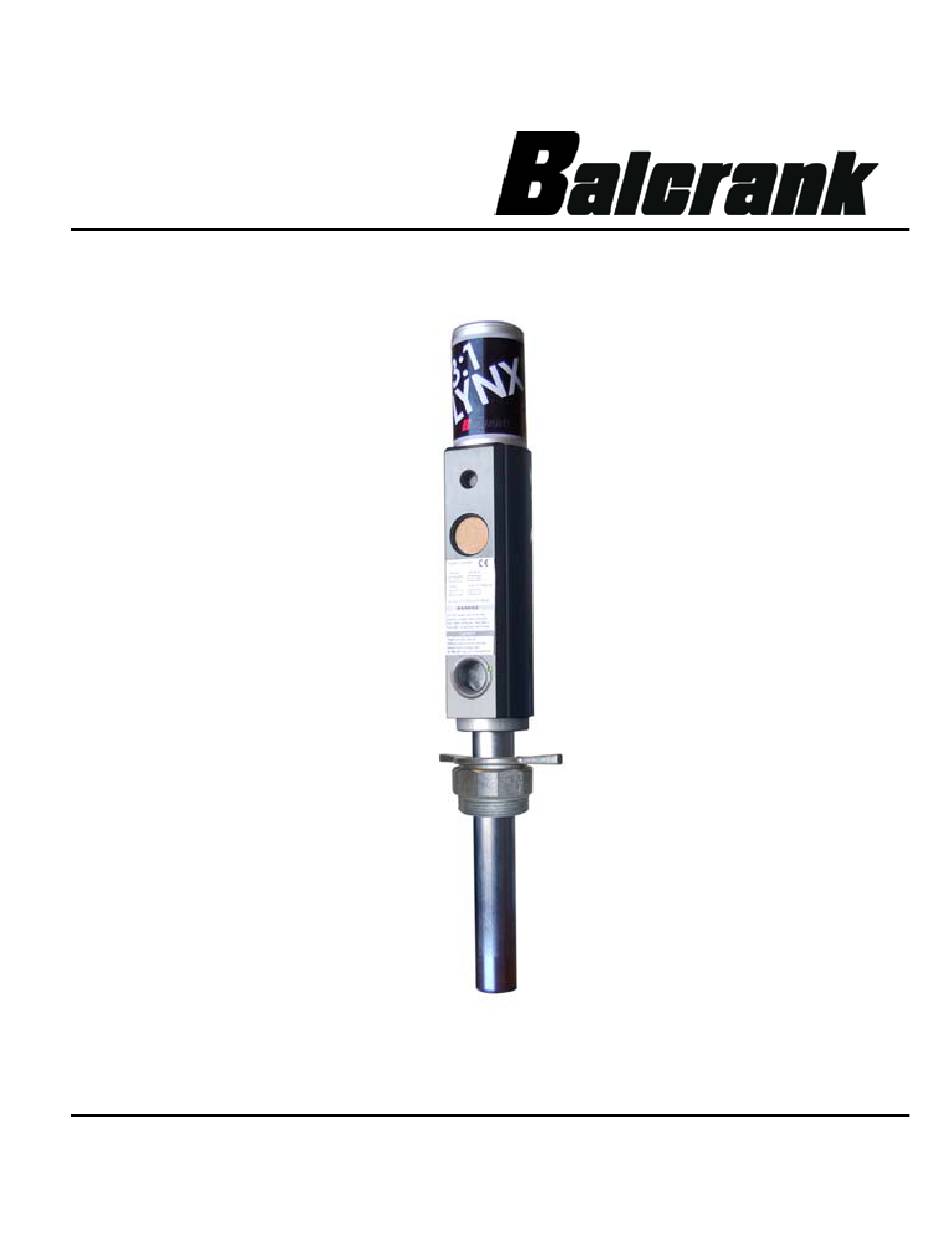

Page 1: Cover

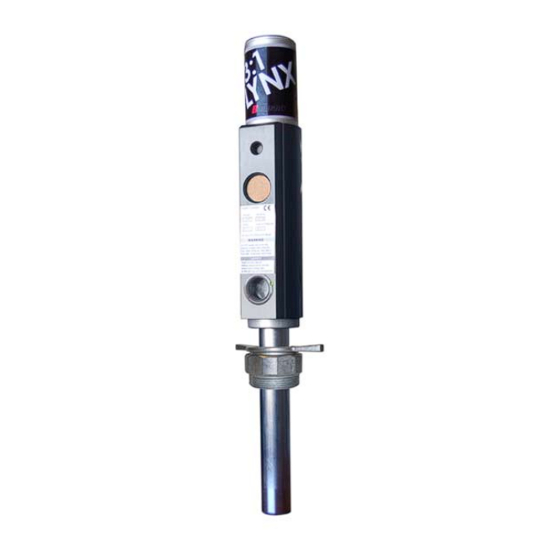

SERVICE BULLETIN SB1101 Revision G 04/15 ® Lynx 3:1 Pump Model: 1110-007 Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE... -
Page 2: General Safety Information
GENERAL SAFETY REQUIREMENTS NOTE NOTE: THOROUGHLY READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLING, OPERATING OR Note: Thermal expansion of the fluid in a distribution SERVICING THIS EQUIPMENT. system can cause an increase in system pressure that can damage fluid distribution system components. Pressure relief valve, 3120-019 is recommended. -
Page 3: Table Of Contents
F, air pressure 150 psi and free flow. PRODUCT DESCRIPTION The Lynx 3:1 pump is designed to deliver a range of light weight oils including gear oils. The pump’s 2” bung adapter allows installation directly onto original containers or bulk tanks. The Lynx pump accepts a variety of different length and types of extension and/or suction tubes. -
Page 4: Installation/Operation
DIMENSIONS GENERAL The pump is made up of two main parts: A compressed air operated two way piston air motor and a double acting liquid pump. The liquid is sucked into the pump tube via the bottom valve. When the piston moves upwards liquid is forced out of the fluid outlet. -
Page 5: Servicing
MAINTENANCE SERVICE Before any service work is carried out the For your personal safety ensure the air is compressed air must be turned off to the pump disconnected from the pump and the fluid or the air coupling disconnected. The fluid discharge is depressurized before any service outlet must be depressurized completely. -
Page 6: Parts Listing
Parts List Gen 1 - Lynx 3:1 Pump (made in Sweden Description Item Number(s) Repair Kits Packing kit 4, 8, 9, 10, 16, 17, 18, 19, 21, 27 Packing Kit - 832864 Air-valve 4, 5, 10 Air Valve Kit - 832865 I TEM / POS NAME / BENÄMNIN... - Page 7 Parts List Gen 2 - Lynx 3:1 Pump (made in EU Description Item Number(s) Repair Kits Packing kit 4, 12, 13, 14, 15, 21, 22, 23, 24, 33 Packing Kit - 833111 Air-valve 4, 5, 6, 7, 8, 9, 10, 13...
-
Page 8: Warranty
Rev D - Added note about external pressure relief www.balcrank.com Rev E - Added parts list & diagram for Gen 2 Lynx 3:1 Rev F - Added air filter kit to part lists Rev G - Added part number for item 38 (pump tube)
