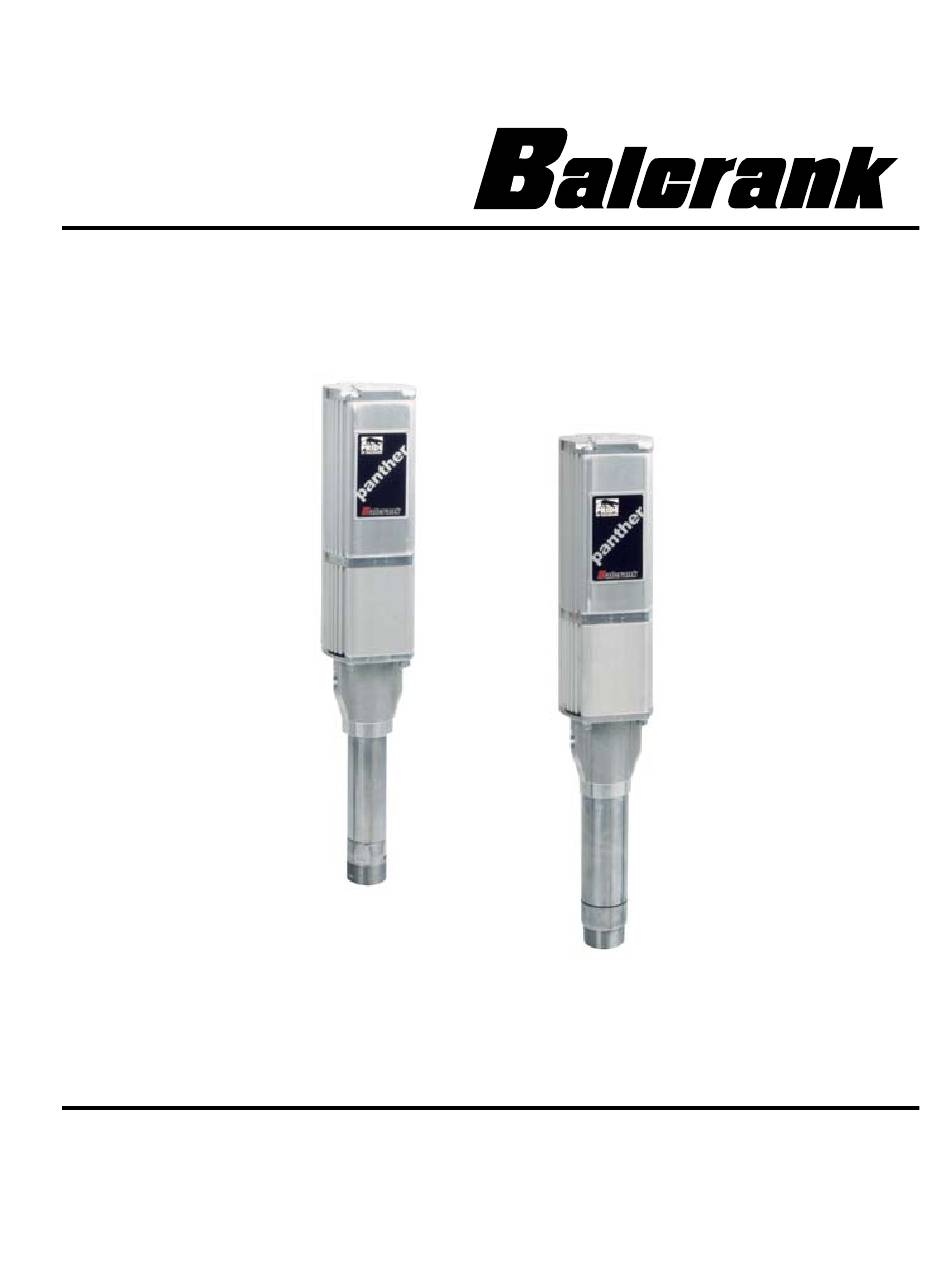

Page 1: Cover
SERVICE BULLETIN SB1037 Rev J 1/11 ® PANTHER SERIES PUMPS ® 5:1 RATIO, MODEL 1130-011 3:1 RATIO, MODEL 1130-010 Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE... -
Page 2: General Safety Information
General Safety Thoroughly read and understand this manual WARNING before installing, operating or servicing the described products. WARNING: The Panther ® 5:1 p u m p ( 1 1 3 0 - 0 1 1 ) IMPORTANT develops 625 psi (43.1 Bar) maximum working pressure and the Panther ®... -
Page 3: Table Of Contents
(blowing air) when the pump is caught between strokes. It has a simple yet durable construction with all internal parts lubricated at the factory using a life-tested synthetic grease (Balcrank P/N 826733). This grease coats all internal parts and repels air line moisture ®... -
Page 4: Pump Installation
Balcrank recommends that an air line lubricator be used with turbine oil (viscosity 150-170 SSU WARNING: Attach a proper ground... -
Page 5: Operation
Pump Operation Pump Repair/Servicing CAUTION: Always read and follow fluid manufacturers' recommendations It is imperative to maintain pump concentricity regarding proper use of protective eye when reassembling the Panther pump. wear, clothing and respirators. This can be achieved by reassembling the pump ONLY in a vertical position;... - Page 6 Reassemble in reverse order. line moisture to inhibit corrosion. It is imperative that any grease removed during maintenance be replaced afterwards. Contact your local Balcrank distributor, using the above part number, for replacement grease.
-
Page 7: Troubleshooting Guide
Troubleshooting Guide NOTE: Check all other possible causes before disassembling pump. CAUTION: Before servicing, reduce fluid supply pressure to zero. Trouble Probable Cause Corrective Action Pump does not operate Inadequate air supply pressure or Increase or clear air supply restricted air line Assure air is on and valves are open Clogged lines, hoses, valves, etc. -
Page 8: Parts List
Parts List Panther 3:1 Ratio Pump ® Model 1130-010 Part Part Pak Pump Service Part Pak Item Number Description Model Kit Qty 829452 Bolt, Carriage 90041Q04 829808 Cap, Air Motor 829664 O-Ring, Buna N 829448 Upper Body, Air Mtr 831552 O-Ring, Buna N 829809 Seal Insert, Motor... - Page 9 Exploded View Panther 3:1 Ratio Pump ® Model 1130-010 See Page 12...
- Page 10 Parts List Panther 5:1 Ratio Pump ® Model 1130-011 Part Part Pak Pump Service Part Pak Item Number Description Model QtyKit 829452 Bolt, Carriage 90041Q04 829808 Cap, Air Motor 829664 O-Ring, Buna N 829448 Upper Body, Air Mtr 831552 O-Ring, Buna N 829809 Seal Insert, Motor 829449...
- Page 11 Exploded View Panther 5:1 Ratio Pump ® Model 1130-011 See Page 12...
- Page 12 Air Motor Panther Series Pumps ® Models 1130-010 and 1130-011...
- Page 13 Parts List Air Motor, Panther Series Pumps ® Models 1130-010 and 1130-011 Part Part Pak Pump Service Part Pak Item Number Description Model Kit Qty 829447 Rod, Trip 831777 Delrin, Thin 831778 Delrin, Thick 831532 Washer 830240 Spring, Inner 830236 Spring, Outer 830611 Retnr.,Spring...
-
Page 14: Warranty Statement
Panther® Repair Kits 831014 - Complete air motor for Panther® Series pumps 1130-010 & 1130-011. 831614 - Complete air motor for Panther® HP Series pumps. 900009 - Fluid seals kit for Panther® 1130-010 pumps. 900010 - Fluid seals kit for Panther® 1130-011 pumps. 900011 - Air motor repair kit for 1130-010 &... - Page 15 Notes:...
- Page 16 For Warranty Information Visit: www.balcrank.com Balcrank Corporation ® Weaverville, NC 28787 800-747-5300 Fax 800-763-0840 www.balcrank.com Service Bulletin SB 1037 Rev J 1/11...
