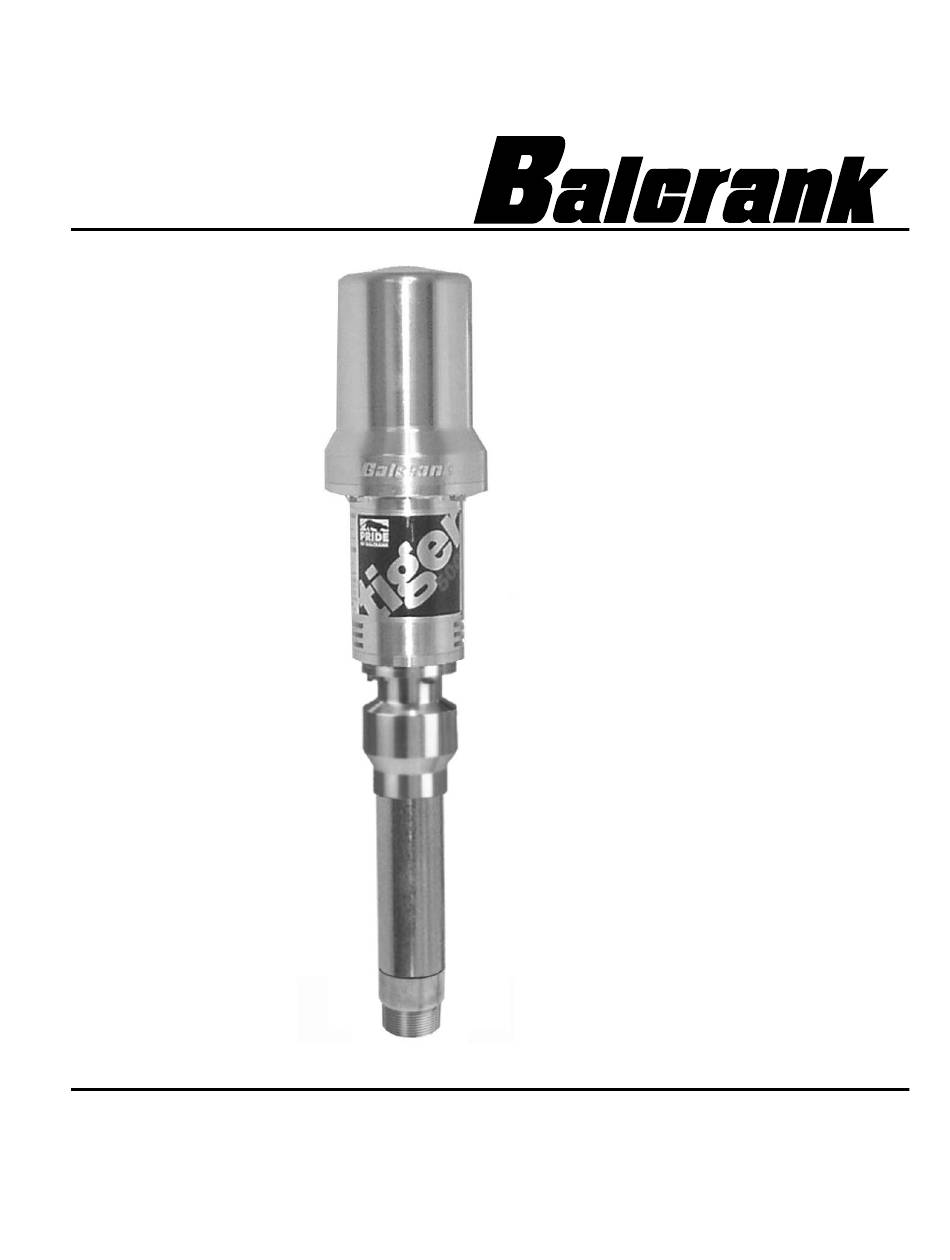

- Page 1 SERVICE BULLETIN SB1031 REV. B 6/03 ® TIGER ® MODEL 1160-004 5:1 PUMP STAINLESS STEEL Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE...
-
Page 2: General Safety Requirements
GENERAL SAFETY REQUIREMENTS WARNING NOTE: THOROUGHLY READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLING, OPERATING THIS PUMP CONTAINS OR SERVICING THIS EQUIPMENT. ALUMINUM AND ZINC PARTS. DO NOT use 1-1-1 IMPORTANT Trichloroethane, methylene chloride or other halogenated hydrocarbon solvents or fluids Because this pump can containing such solvents in this pump. -
Page 3: General Description
This special grease acting to provide consistent delivery. All of these must be reapplied during each reassembly of the features make the Tiger 500 a top performing, long air motor. life, easy to service lubrication pump... -
Page 4: Pump Disassembly
(#826733) at the factory. This grease coats all parts and repels air line moisture to prevent rusting. It is imperative that any grease removed during routine maintenance be PRESSURE RELIEF replaced. Contact your Balcrank service distributor, using ® the above part number, for replacement grease. -
Page 5: Troubleshooting
TROUBLESHOOTING Trouble Probable Cause Corrective Action Pump does not operate Inadequate air supply pressure or Increase or clear air supply restricted air line Assure air is on and valves are open Clogged lines, hoses, valves, etc. Open; clear Damaged air motor Service air motor Air motor is not tripping over Air motor seals are worn/damaged... -
Page 6: Parts List
Parts List Tiger 500 5:1 Pump ® Model 1160-004 ITEM PART DESCRIPTION QTY IN KIT ITEM PART DESCRIPTION QTY IN KIT 800971 Ball, 1” SS 826224 Washer 805784 Lock Washer 826227 Muffler Screen 814247 Air Valve Nut 826228 Muffler 826679 O-Ring, Viton 826242 Upper Toggle Plate 826072 Rod Seal, Viton 826253 Lower Air Piston... - Page 7 Tiger 500 5:1 Pump ® Model 1160-004 Quality Checklist Bill of Material checked for current content. Pump was tested in water and met Balcrank ® performance standards. I ________________________________________ certify that this product meets or exceeds Balcrank's high quality standards.
-
Page 8: Warranty
Warranty Service Claim number ® (WSC#) clearly marked on the outside of the carton. Balcrank’s sole responsibility is for defects in material and workmanship, and Buyer’s sole and exclusive remedy hereunder, shall be limited to repair or replacement of the defective part or equipment.
