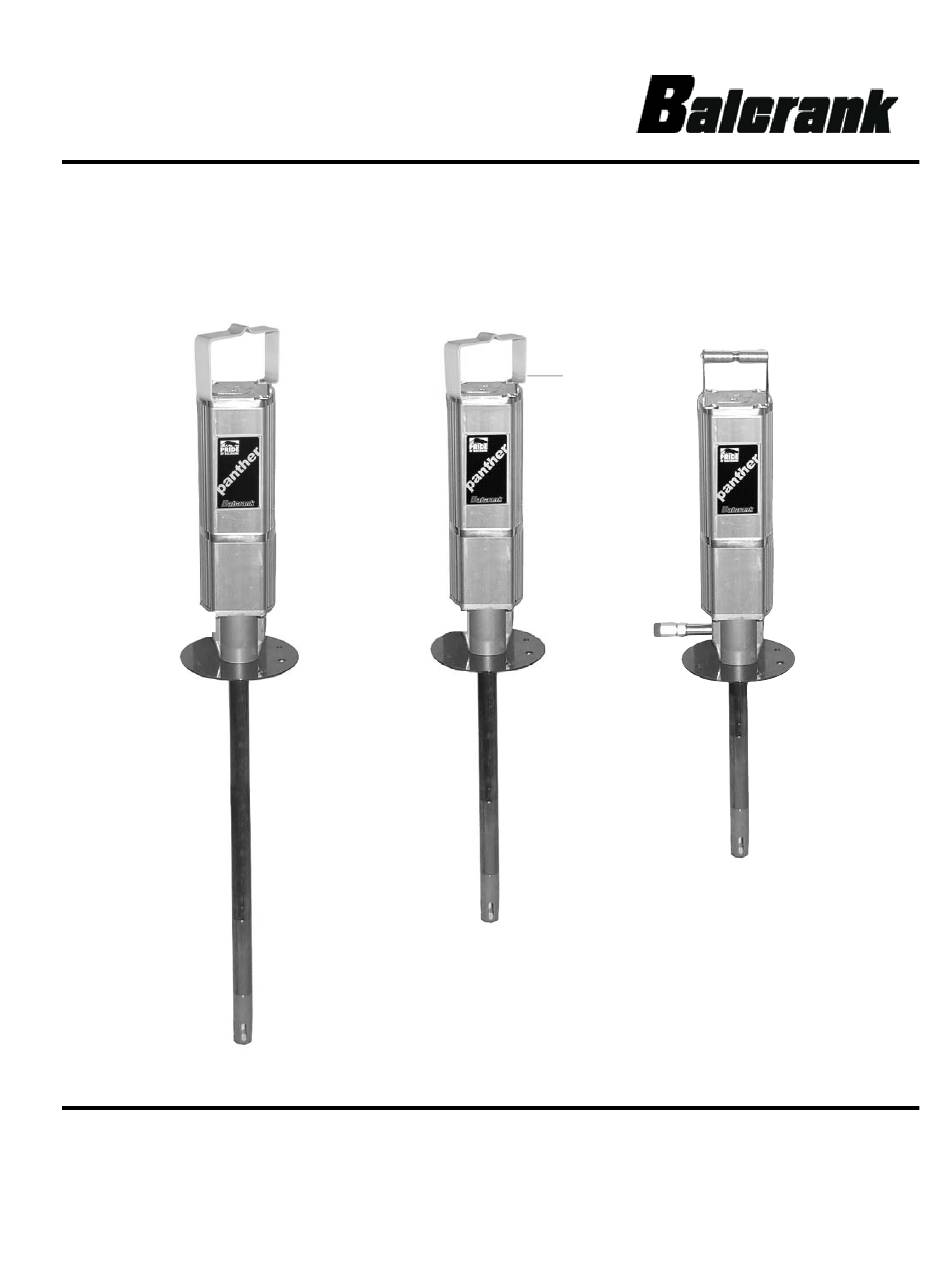

PANTHER
Patent Pending
1150-008
SERIES GREASE PUMPS
®
50:1 RATIO, 35 LB. PAIL, MODEL 1150-006
50:1 RATIO, 120 LB. DRUM, MODEL 1150-007
50:1 RATIO, 400 LB. DRUM, MODEL 1150-008
1150-007
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE
SERVICE BULLETIN SB1043
Rev F 1/11
1150-006
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANTHER 1150-006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Balcrank PANTHER 1150-006

Summary of Contents for Balcrank PANTHER 1150-006

  • Page 1: Cover

    SERVICE BULLETIN SB1043 Rev F 1/11 ® PANTHER SERIES GREASE PUMPS ® 50:1 RATIO, 35 LB. PAIL, MODEL 1150-006 50:1 RATIO, 120 LB. DRUM, MODEL 1150-007 50:1 RATIO, 400 LB. DRUM, MODEL 1150-008 Patent Pending 1150-006 1150-007 Thoroughly read and understand this manual before 1150-008 installing, operating or servicing this equipment.

  • Page 2: General Safety Information

    General Safety Thoroughly read and understand this manual WARNING before installing, operating or servicing the described products. IMPORTANT WARNING: The Panther 50:1 ® grease pump develops up to 7500 psi (517 Bar) maximum working pressure at 150 psi Because this pump can be (10.3 Bar) maximum inlet air pressure and incorporated into a pressurized stall conditions.

  • Page 3: Table Of Contents

    "voids" in the grease is practically eliminated. It has a simple yet durable construction with all internal parts lubricated at the factory using a life-tested synthetic grease (Balcrank P/N 826733). This grease coats all internal parts and repels air line moisture to inhibit corrosion.

  • Page 4: Pump Installation

    Insert pump (with follower plate) into drum and tighten thumb screws. To insure proper performance of your grease pump, Balcrank recommends using a follower plate if mounting the pump to a grease pail or drum. Refer to the following illustrations depicting a typical drum-mounted installation.
  • Page 5 STEP 8: Install a F-R-L onto the pump. Fill the lubrica- tor with 10-20 wt. lubricant - set for 1 drop every 2 hour. STEP 9: Set-up complete (optional equipment shown) Connect compressed air to F-R-L. 25/35 LB. Installation: Loosen set screw on mounting collar and STEP 10: remove from pump.

  • Page 6: Preventive Maintenance

    5. Use the air regulator to control the thetic grease upon factory assembly and pump's speed and cycle rate. Always can run without lubricated air, Balcrank use the lowest pressure required to obtain recommends an in-line F.R.L. be installed in the desired flow rate.

  • Page 7: Pump Repair/Servicing

    It is imperative to maintain pump allignment Pump Repair/Servicing (concentricity) when reassembling the Panther pump. This can be achieved by reassembling the pump ONLY in a vertical position. WARNING: Before beginning pump repair, all internal pressure must be relieved. To reduce risk of personal Replacing the Air Motor Seals (Installing injury, follow the Pressure Relief kit 900015):...
  • Page 8 It is imperative that any grease removed during maintenance be replaced afterwards. Contact your Fig. 2: local Balcrank distributor, using the Lower end section above part number, for replacement shown for clarity. grease.

  • Page 9: Troubleshooting Guide

    Troubleshooting Guide NOTE: Check all other possible causes before disassembling pump. CAUTION: Before servicing, reduce fluid supply pressure to zero. Trouble Probable Cause Corrective Action Pump does not operate Inadequate air supply pressure or Increase or clear air supply restricted air line Ensure air is on and valves are open Clogged lines, hoses, valves, etc.

  • Page 10: Parts List

    Parts List Panther 50:1 Pumps ® Models: 1150-006, 1150-007, 1150-008 Item No. Part No. Description Quantity Kit Qty's 900016 900015 830933 Rod, Upper 812208 Rod, Connecting, (Model 1150-006 Pump) 808329 Rod, Connecting, (Model 1150-007 Pump) 808332 Rod, Connecting, (Model 1150-008 Pump) 807454 Spring, Grease Piston 806289...
  • Page 11 Exploded View Panther 50:1 Ratio Pump ® Model 1150-008 Shown See page 12 for air motor breakdown Torque 50 FT-LB Down Down Chamfer Down Torque 70 IN-LB...
  • Page 12 Air Motor Panther Grease Pumps ® Models: 1150-006 1150-007 1150-008 Torque 15 FT-LB...
  • Page 13 Parts List Air Motor Panther 50:1 Pumps ® Models: 1150-006, 1150-007, 1150-008 Item No. Part No. Description Quantity Kit Qty's 900016 900015 829447 Rod, Tripper 830984 Spring, Trip 830143 808693 830246 Washer 830612 Dampener 829441 Valve Bar 830792 Valve, Exhaust 807344 O-Ring 829999...
  • Page 14 120 lb/400 lb drums are Filter Screen held by a chain. Front ramp design for ease of drum change. Inlet filter screens attach to the bottom of pump tubes on Balcrank Panther Grease Pumps to prevent foreign matter from fouling the foot valve. 4460-001...
  • Page 15 Revision Log: Pump Dimensions Rev. B - Added filter screen (item 42) Added grounding lug (item 45) Rev. C - Revised item 33, 34, and 35 Rev. D - Changed item 19. Rev. E - Changed Item 60. 2-3/4" Rev. F - Changed Item 60. 9-1/2"...

  • Page 16: Warranty Statement

    For Warranty Information Visit: www.balcrank.com Balcrank Corporation ® Weaverville, NC 28787 800-747-5300 800-763-0840 Fax www.balcrank.com Service Bulletin SB1043 Rev F 1/11...
