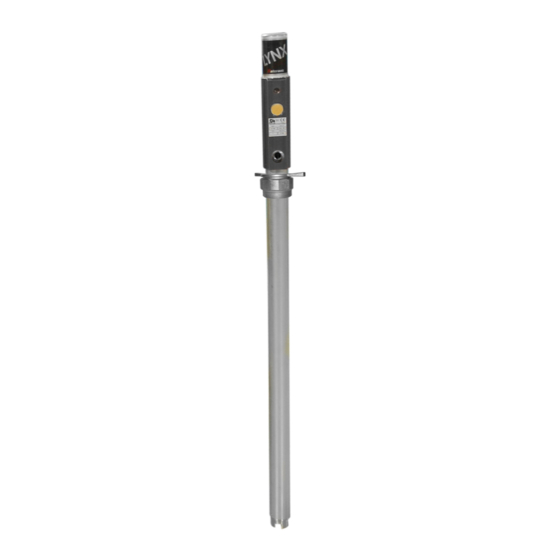

Balcrank Lynx Series Operation, Installation, Maintenance And Repair Manual
Drum length pump
Hide thumbs
Also See for Lynx Series:
Table of Contents
Advertisement
Quick Links
SERVICE BULLETIN SB1143
Rev. A 11/15
®
Lynx Pump Series
Model 1160-008 .................................. Lynx Stainless Steel Drum Length Pump, 1:1
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Balcrank Lynx Series
Summary of Contents for Balcrank Lynx Series

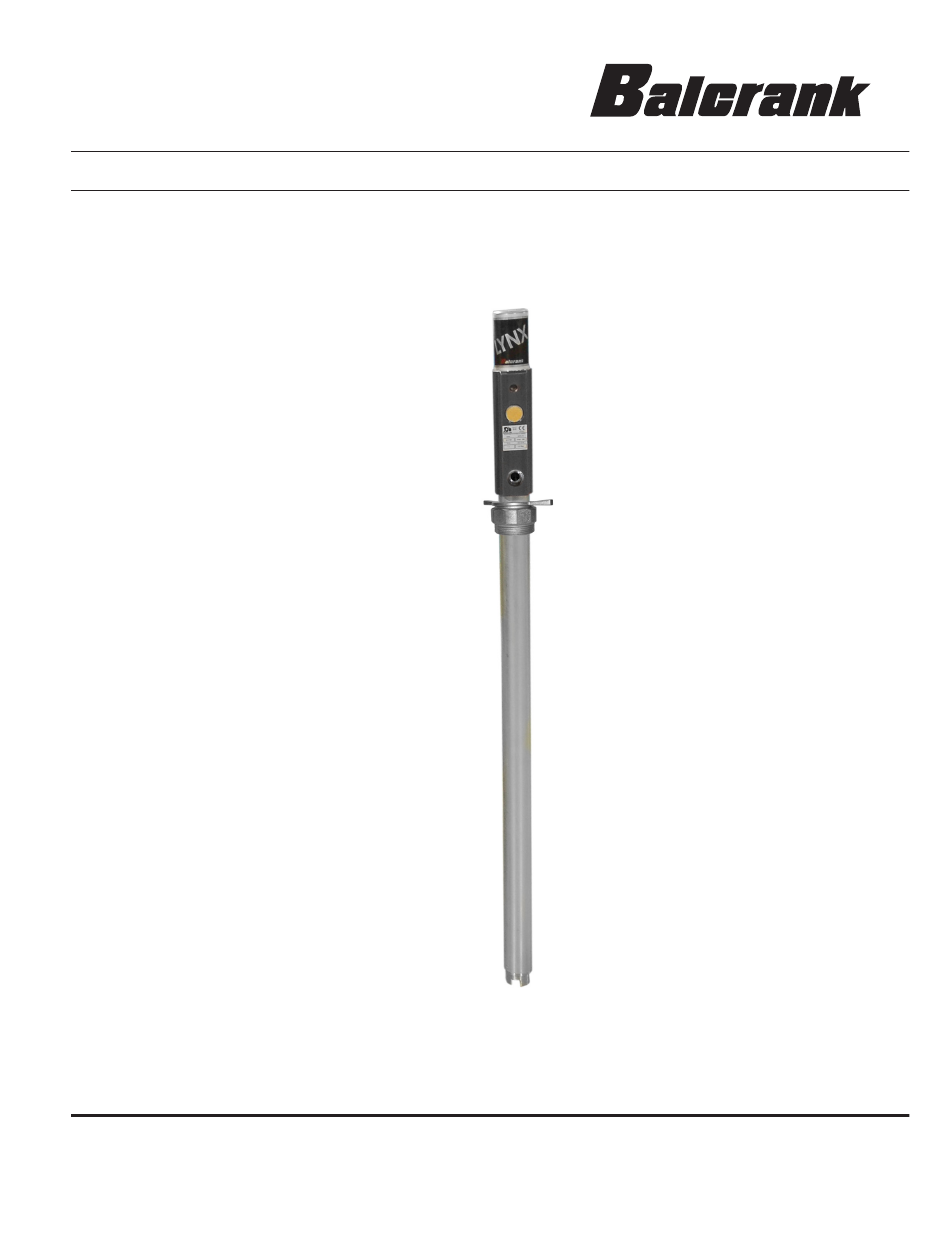

- Page 1 SERVICE BULLETIN SB1143 Rev. A 11/15 ® Lynx Pump Series Model 1160-008 ........Lynx Stainless Steel Drum Length Pump, 1:1 Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE...
- Page 2 GENERAL SAFETY REQUIREMENTS WARNING NOTE: THOROUGHLY READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLING, OPERATING OR Pump develops 150 PSI (10.3 BAR) maximum working SERVICING THIS EQUIPMENT. pressure at 150 PSI (10.3 BAR) maximum inlet air pressure. Be sure that any components or accessories used in the system are rated to withstand IMPORTANT this pressure.
- Page 3 TABLE OF CONTENTS TECHNICAL DATA Cover ................1 Pressure Ratio ...............1:1 General Safety Information..........2 Air Pressure Operating Range ......45-150 psi Technical Data ..............3 Maximum Fluid Working Pressure ......150 psi Dimensional Data .............3 Delivery per minute* ..........8.2 gpm Installation/Operation............4 Air Inlet Port Size ..........1/4” NPT (F) Servicing ................5 Fluid Outlet Port Size........3/4”...
- Page 4 SAFETY • The pump is intended for use with anti-freeze Fit and secure the air inlet hose, slowly and anti-freeze/water solution. It may NOT increase the air pressure letting the pump be used for other purposes or for pumping slowly build up fluid pressure. gasoline, or other explosive liquids.
- Page 5 SERVICE Try to use paraffin to clean pump parts. If water based cleaners are used, wipe parts clean & dry immediately to avoid corrosion. For your personal safety ensure the air is disconnected from the pump and the fluid discharge is depressurized before any service is carried out.
- Page 6 Description Item Number(s) Repair Kits Packing kit 7, 12, 13, 14, 19(x2), 20, 21, 22, 23, 24, 25(x2) Packing Kit - 833525 Air-valve 4, 5, 6, 7, 8, 9, 12 Air Valve Kit - 833110 Air filter kit 15, 16, 17, 18 Air Filter Kit - 833346 Bung adapter 37, 38, 39...
- Page 7 NOTES...
- Page 8 For Warranty Information Visit: www.balcrank.com Balcrank Corporation Revision Log: ® Weaverville, NC 28787 Rev. A - New release 800-747-5300 800-763-0840 Fax www.balcrank.com SERVICE BULLETIN SB1143 Revision A 11/15...
