Balcrank Lynx Series Operation, Installation, Maintenance And Repair Manual
High pressure grease pump
Hide thumbs
Also See for Lynx Series:
Table of Contents
Advertisement
Quick Links
Model 1151-034* .............................................................................25-35# Outfit**
Model 1150-022 ............................................25-35# Bare Pump w/bung adapter
Model 1151-035* ................................................................................ 120# Outfit**
Model 1150-023 ............................................... 120# Bare pump w/bung adapter
Model 1151-036* ................................................................................ 400# Outfit**
Model 1150-024 ............................................... 400# Bare pump w/bung adapter
*Model 1151-036
**Drum not included
Lynx Series High Pressure Grease Pump
*Model 1151-035
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
MAINTENANCE AND REPAIR GUIDE
SERVICE BULLETIN SB1116
*Model 1151-034
OPERATION, INSTALLATION,
Revision D
3/20
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Balcrank Lynx Series
Summary of Contents for Balcrank Lynx Series
- Page 1 SERVICE BULLETIN SB1116 Revision D 3/20 ® Lynx Series High Pressure Grease Pump Model 1151-034* ................25-35# Outfit** Model 1150-022 ..........25-35# Bare Pump w/bung adapter Model 1151-035* ................120# Outfit** Model 1150-023 ..........120# Bare pump w/bung adapter Model 1151-036* ................400# Outfit** Model 1150-024 ..........
-
Page 2: General Safety
General Safety Thoroughly read and understand this manual WARNING before installing, operating or servicing the described products. IMPORTANT WARNING: The Lynx 55:1 grease pump develops up to 7700 psi (531 Bar) Because this pump can be maximum working pressure at 140 psi (10 Bar) incorporated into a pressurized maximum inlet air pressure and stall conditions. -
Page 3: Product Description

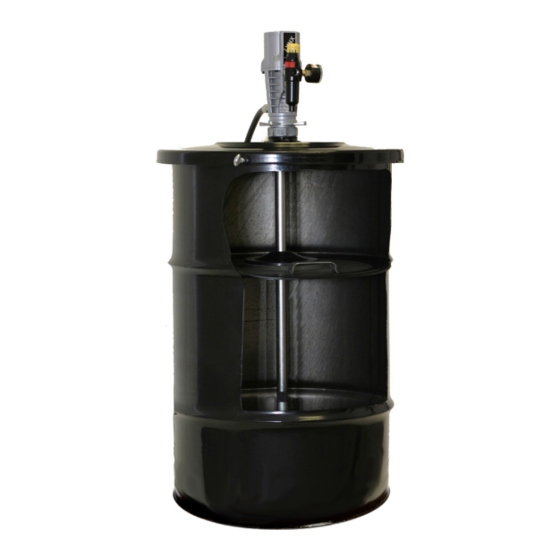

PRODUCT DESCRIPTION The Lynx 55:1 grease pump features an in-line balanced design which ensures that a maximum amount of energy is directed into the pump. This design provides even distribution of loads allowing for long seal life. The Lynx 55:1 is a double acting pump, this allows pumping of the product on both the up and down stroke providing smooth and reliable flow and pressure. -
Page 4: Pump Performance Curves
PUMP PERFORMANCE CURVES Lynx... -
Page 5: Installation
DIMENSIONS Model Weight 1150-022 24.02” 7.87” 1.02” 16.14” 7.32 lb 1150-023 36.42” 7.87” 1.02” 28.54” 9.48 lb 1150-024 44.09” 7.87” 1.02” 36.22” 10.58 lb Fig. 2 See figure 3 for a typical installation with all the recommended accessories for the pump to operate correctly. - Page 6 Fig. 3 This pump is self–priming. To prime it the first Item Description time, you must connect the air supply to the Air shut-off valve pump and slowly increase the air pressure from 0 psi to the desired pressure using a Filter Regulator pressure regulator, while keeping the outlet Air hose...
-
Page 7: Troubleshooting
TROUBLESHOOTING Symptom Possible Cause Solution The pump is not working or Not enough air supply pressure. Increase the air supply pressure. there is no grease delivery. An outlet line component is Clean or open the outlet circuit. clogged or closed. There are air pockets in the Compact the grease. - Page 8 6. Unscrew the foot tube with the intake filter HP piston/cylinder & check valve kit (39) from the high pressure cylinder . Attach 1. Introduce a steel rod (ø 4 mm recom- the foot tube to the vice, unscrew the intake mended) through the lower grease passing filter (39) remove the foot valve seat (38), hole in the high pressure piston (29) and...
- Page 9 Air motor kit 1. Fix the air motor body in a suitable way and loosen the five screws (D) to remove the air motor cap (C). 2. Introduce an open end wrench in the milling of the lower part of the air piston . With another wrench unscrew the air piston nut (1) and remove the parts (1), (2), (3) and (4).
- Page 10 ACCESSORIES (included in outfits) Outfit Model Description Part Number 1151-034 Drum cover 25-35# 4420-010 1151-035 Drum cover 120# 4420-011 1151-036 Drum cover 400# 4420-015 Outfit Model Description Part Number 1151-034 Follower plate 25-35# 4440-013 1151-035 Follower plate 120# 4440-014 1151-036 Follower plate 400# 4440-018 Outfit Model Description...
-
Page 11: Repair Kits
REPAIR KITS Part number Description 833038 Air motor kit 833039 Packing seal kit 833040 Foot valve kit 833041 HP piston/cylinder & check valve 4411-023 Bung adapter... - Page 12 For Warranty Information Visit www.balcrank.com Revision Log: Balcrank Corporation ® Rev. A - New release Weaverville, NC 28787 Rev B - Added bare pump model numbers 800-747-5300 Rev C - Added 400# models 800-763-0840 Fax Rev D - Replaced numbers 1151-027, www.balcrank.com...
