Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
JET POWER
50:1 RATIO SERIES
High Pressure Grease
1150-004, Bare Pump, 25-35# Pail
1151-014, 25-35# Outfit
1150-012, Bare Pump, 120# Drum
1151-013, 120# Outfit
1151-015, 120# Outfit
1151-016, 120# Outfit
1150-013, Bare Pump, 400# Drum
1151-017, 400# Outfit
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE
SERVICE BULLETIN SB1075
Revision B
PUMP
™
Models:
3/10
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Balcrank JET POWER 1150-004
Summary of Contents for Balcrank JET POWER 1150-004
- Page 1 SERVICE BULLETIN SB1075 Revision B 3/10 ® JET POWER PUMP ™ 50:1 RATIO SERIES High Pressure Grease Models: 1150-004, Bare Pump, 25-35# Pail 1151-014, 25-35# Outfit 1150-012, Bare Pump, 120# Drum 1151-013, 120# Outfit 1151-015, 120# Outfit 1151-016, 120# Outfit 1150-013, Bare Pump, 400# Drum 1151-017, 400# Outfit Thoroughly read and understand this manual before...
- Page 2 General Safety Thoroughly read and understand this manual before WARNING installing, operating or servicing the described prod- ucts. WARNING: The Jet Power 50:1 ™ IMPORTANT grease pump develops up to 7500 psi (517 Bar) maximum working pressure at 150 psi (10.3 Bar) Because this pump can be incorporated into a pressurized maximum inlet air pressure and stall conditions.
-
Page 3: Product Description

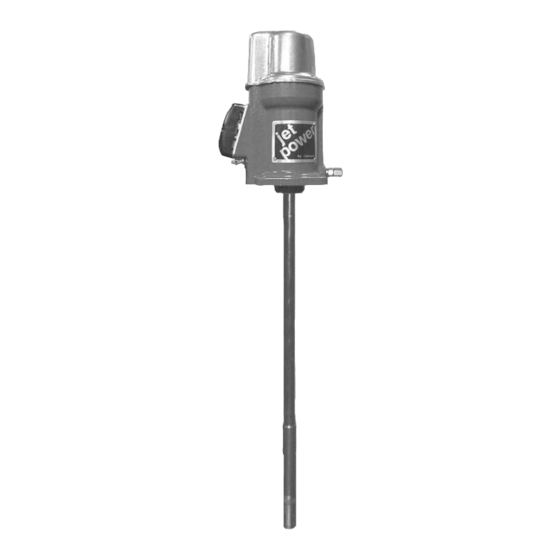

Pump air motor features precision cast aluminum allot parts, it has a simple ™ durable construction with all internal parts lubricated ad the factory with a life tested synthetic grease (Balcrank Part # 826733). This grease coats all internal parts and repels air line moisture to inhibit corrosion. The Jet Power pumping assembly features steel pump rods, tubes, and high quality grease seals ™... -
Page 4: Installation
Pump will operate continuously to replace INSTALLATION leaking grease. Remove pump from carton and attach to cover, After preceding points have been checked,, bung fitting or other mounting. proceed as follows with the case or cases which appear to meet your situation. Blow out any foreign material from the air supply line before connecting to pump. - Page 5 CASE 3: Air escaping around air piston guide trying the remedial procedure without material (2). This is an indication that the two o-rings (5) success, call your nearest Balcrank Authorized or the o-ring (8) are damaged or worn. Service Center.
-
Page 6: Parts List
PARTS LIST ITEM PART # DESCRIPTION 816348 823867 Screw, PHP, 10-24 X 7/8 830006 807532 Screw, SHC, 1/4-28 x 5/8 806512 Tripper Rod Arm 806906 O-Ring, Buna N, -337 807388 Tripper Rod 807390 Retainer Ring 814075 O-Ring, Buna N, -153 807387 Air Piston 807465... -
Page 7: Exploded View
EXPLODED VIEW NOTE: Spring is directional; tapered end towards ball. 16 17 Cup-up Deep chamfer up ACCESSORIES 3241-002 4440-010 4430-001 4440-006 4440-011... - Page 8 For Warranty Information Visit: www.balcrank.com Balcrank Corporation ® Weaverville, NC 28787 800-747-5300 800-763-0840 Fax www.balcrank.com SERVICE BULLETIN SB 1075 Rev. B 3/10 832156...
