Donut Production Equipment
T E C H N I C A L S U P P L E M E N T
Operator's Manual
O P E R A T O R ' S M A N U A L
Technical Supplement
P A R T S A N D E L E C T R I C A L D I A G R A M S
Technical Supplement
Operator's Manual
Parts & Electrical Diagrams
Parts & Electrical Diagrams

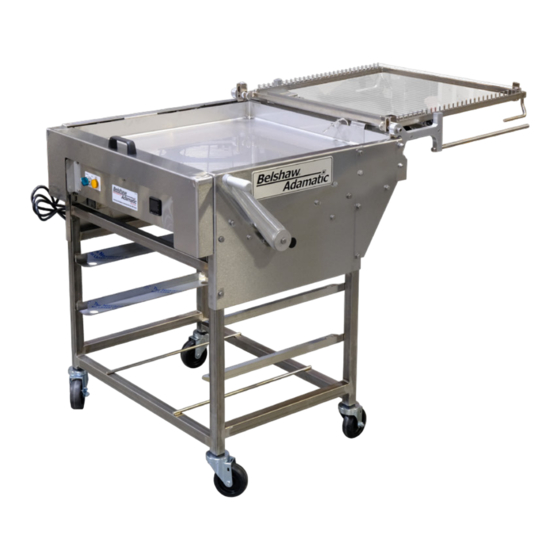

Models:
H18F • HI24F
Donut Icer
ITEM NUMBER
SERIAL NUMBER
Item Number and Serial Number are marked on a data tag attached to the equipment.
This manual should only be used with the Item Number(s) shown above.
SUPPORT
USA/Canada 1-800-BELSHAW
International (+1) 206-322-5474
www.belshaw.com
Year of manufacture
2022
Electronic Temperature
Controller
DECLARATION
OF CONFORMITY
INSIDE
Email service@belshaw.com
Web www.belshaw.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H18F and is the answer not in the manual?

Questions and answers

Related Manuals for Belshaw Brothers H18F

Summary of Contents for Belshaw Brothers H18F

  • Page 1 Technical Supplement Year of manufacture Operator's Manual Parts & Electrical Diagrams 2022 Parts & Electrical Diagrams Models: H18F • HI24F Donut Icer Electronic Temperature Controller ITEM NUMBER SERIAL NUMBER DECLARATION Item Number and Serial Number are marked on a data tag attached to the equipment.
  • Page 3 High Production Donut Icer HI18F • HI24F Operator's Manual 814 44 St NW Suite 103, Auburn WA 98001 USA Phone: 1-800-BELSHAW (US/Canada) +1 (206) 322-5474 (International) Email: service@belshaw.com www.belshaw.com Ref: MNOM-HI1824-prov0202mb-070722...
  • Page 4 BELSHAW FREIGHT DAMAGE POLICY Belshaw has made every effort to insure that your equipment arrives in IMPORTANT excellent condition. For your Keep This Manual For Future protection, please inspect your Reference shipment for any signs of damage that may have occurred during transport. Please note any damage that is found during inspection and file a freight claim with the shipping company...

  • Page 5: Table Of Contents

    Contents - Operator’s Manual Contents - Operator’s Manual ............. 3 Before You Start ................. 4 1 Operation ................5 Main Parts of the HI18/24 Icer .............5 The Temperature Probe ..............5 Inserting and Heating the Icing ............6 Icing Donuts ................7 2 Cleaning ................10 3 Maintenance ................

  • Page 6: Before You Start

    Before You Start The HI18/HI24 Icer is designed for restored, it is safe to plug the quickly and easily icing donuts and machine in again. other baking products. MAKE SURE that all electrical The HI18/HI24 Icer is meant to be cords are routed so that no one used on a flat, stationary surface.

  • Page 7: Operation

    1 Operation Main Parts of the HI18/24 Icer Figure 1: Main parts of the HI18/24 Icer showing OPEN and CLOSED position The Temperature Probe The Temperature Probe is housed in a bracket which clips to the back of the Icing Pan. (Figure 2) MAKE SURE that the Temperature Probe is in place when icing donuts.

  • Page 8: Inserting And Heating The Icing

    Inserting and Heating the Icing 1. LIFT the Tray Retainer and (Figure 4) rotate it to the back of the icer. This is the OPEN position (See Figure 1). 2. LIFT the Donut Retainer Frame and rotate it to the OPEN position as well.

  • Page 9: Icing Donuts

    Icing Donuts 1. ROTATE the Donut Retainer Figure 7: Wires are in contact with donuts. Frame to the CLOSED position. 4. GRIP the two handles at once, and Leave the Tray Retainer in the rotate the Tray Retainer and the OPEN position.(Figure 5) Donut Retainer Frame back into the CLOSED position.
  • Page 10 Fig. 10: Tray Retainer in OPEN position. Figure 12: Rotate the Donut Retainer 7. PUSH DOWN the Lift Handle. This Frame back into the CLOSED position. raises the Icing Pan and dips the bottom of the donuts in icing. (Figure 11) Figure 11: Push down on the Lift Handle to ice donuts •...
  • Page 11 The Icer should now look as shown ROTATE the Donut Retainer • in Figure 13 below. Frame (without the iced donuts) into the CLOSED position over the Icing Pan. (Figure 15) Figure 13: Donut Retainer Frame. 9. ROTATE the Tray Retainer and the Figure 15: Rotate the Donut Retainer Donut Retainer Frame (together frame to CLOSED position.

  • Page 12: Cleaning

    2 Cleaning FOR YOUR SAFETY! Once a day, clean the HI18/HI24 Icer as explained below: WARNING! 1. REMOVE any debris from the work area before cleaning the icer. • THOROUGHLY CLEAN AND DRY the floor if icing, water, or 2. REMOVE the Temperature Probe other materials are spilled.
  • Page 13 4. To avoid being burned, WAIT for 7. ROTATE the Tray Retainer to the the Icing Pan to cool. Then open position. Wash with warm REMOVE the Icing Pan. WASH and soapy water, rinse, and wipe dry. SANITIZE thoroughly. 5. UNPLUG AND REMOVE the Heating Panel from the Icer.
  • Page 14 10. CLOSE the Front Panel of the icer. IMPORTANT: Ensure that both cords leading from the Heating Panel fit through the holes on each side of the Front Panel. (see photos below) The Icer is now ready for use. • www.belshaw.com HI18/HI24 Icer •...

  • Page 15: Maintenance

    3 Maintenance Lubrication WARNING To avoid serious burns or other injury, always disconnect the machine from the power source before lubricating. Use only Food Grade Lubricating Oil. Belshaw recommends and approves ONLY Lubriplate FMO-900-AW. 1. ONCE A WEEK: 2. EVERY TWO WEEKS: Apply 3 drops of Lubriplate FMO- Apply 3 drops of Lubriplate FMO- 900-AW oil to the Pivot Pins on...
  • Page 17 High Production Donut Icer HI18F • HI24F Technical Supplement 814 44 St NW Suite 103, Auburn WA 98001 USA Phone: 1-800-BELSHAW (US/Canada) +1 (206) 322-5474 (International) Email: service@belshaw.com www.belshaw.com Ref: MNTS-HI1824-prov0202mb-070722...
  • Page 18 Contents – Technical Supplement Contents - Technical Supplement ..........2 IMPORTANT ................3 1 Using the HI18 icer with Baking Pans ........5 To install the replacement Tray Holders for Baking Pans: ....5 2 Converting the HI18/24 Icer for Left Hand operation.... 6 Step 1: Move the Lift Handle to the left side.

  • Page 19: Important

    IMPORTANT The HI18/HI24 Icer is designed for restored, it is safe to plug the quickly and easily icing donuts and machine in again. other baking products. MAKE SURE that all electrical The HI18/HI24 Icer is meant to be cords are routed so that no one used on a flat, stationary surface.
  • Page 20 To avoid electrocution, MAKE SURE MAKE SURE that the machine and that all electrical cords are not the icing are cool before frayed or cracked and that they do attempting any adjustment, repair, not pass through any water or disassembly, or cleaning. Hot icing icing.
  • Page 21 1 Changing between Baking Pans and Donut Screens To change Tray Holders HI18 Icers are supplied with two sets of Tray Holders. between Screens and The small Tray Holders are pre- • Baking Pans: installed. They are for use with Glazing Screens, Part# SL200- 1.

  • Page 22: Converting The Hi18/24 Icer For Left Hand Operation

    Converting the HI18/24 Icer for Left Hand operation. • The HI18/24 Icer can be converted for use with the Lift Handle on the left side (Left Hand operation). This conversion may take up to 30 minutes. • You can also obtain a second Lift Handle by ordering Part# SK-1683 , to operate the icer from both sides.

  • Page 23: Maintenance

    3 Maintenance Wire Tensioning and Replacement. IMPORTANT The following tools are required for Do not use a box wrench to wire tensioning and replacement: tighten. This will cause too much torque, and the frame may bend  5/16” Open-End Wrench and bow.
  • Page 24 3. With the 5/16” open-end IMPORTANT! wrench, LOOSEN the bolt on the Do Not Over Tighten! Over side OPPOSITE to the wires. Tightening Will Cause The Frame To Bend And Bow. 4. With the 5/16” open-end wrench, TURN the Wiring 5.

  • Page 25: Programming The Temperature Controller

    4 Programming the Temperature Controller The TJ-0184D-1 or 2 Controller Unlocking the Controller comes per-programmed and protected so the operator cannot change the To unlock the controller: setup parameters. To change any settings, you must first unlock the keys for more 1.

  • Page 26: Changing Operator Set Points

    PARAMETER FACTORY PRESENT UNIT FRONT EXPLANATION OF DEFAULT SETTING PANEL PRESENT SETTING SETTING Protection Parameters 2:Display and change Operation/Adjustment of only "PV" and Protect "PV/SP" parameters are allowed. [2] Initial Setting/Communications 2:Prohibited. [2] Protect Changing Operator Set Points To change operator set points: (Must be unlocked to change Alarm Value 1.) key to move to the 1.

  • Page 27: Changing Operator Level Parameters

    Changing Operator Level Parameters To change operator level parameters: (Must be unlocked.) 1. PRESS the key for less than 1 3. PRESS the key to second. change the parameter. 2. PRESS the key to move to the 4. PRESS the key to return to next parameter.

  • Page 28: Changing Advanced Level Parameters

    PARAMETER FACTORY PRESENT UNIT FRONT EXPLANATION OF DEFAULT SETTING PANEL PRESENT SETTING SETTING Initial Level Parameters 8:Thermocouple [J] Input Type (-20.0 to 400.0°C or 0.0 to 750.0°F) [8] Temperature Unit °F [F] SP Upper Limit 130.0 150.0/65.0 °F/°C SP Lower Limit -20.0 0.0 °F/°C 0:Alarm function OFF...

  • Page 29: Locking The Controller

    PARAMETER FACTORY PRESENT UNIT FRONT EXPLANATION OF DEFAULT SETTING PANEL PRESENT SETTING SETTING Advanced Level Parameters Alarm 1 Latch Enabled [oN] PV/SP No. 1 Display 1:"PV/SP/No display" Selection PV Decimal Point Display OFF [ Locking the Controller After programming: To lock the controller: keys for key to PRESS the...

  • Page 30: Troubleshooting

    5 Troubleshooting If you have a problem with your HI18/HI24 Econo-Icer that you CAUTION cannot solve, call your dealer or another qualified technician. IF YOU PERFORM REPAIRS YOURSELF, OR HAVE THEM PERFORMED BY If your dealer cannot help you, please ANYONE OTHER THAN A SERVICE call Belshaw at 800-578-2547 or email TECHNICIAN AUTHORIZED BY...

  • Page 31: Troubleshooting Specifics

    Troubleshooting Specifics NO HEAT AND ON/OFF SWITCH DOES NOT LIGHT UP Possible Causes What To Do Unit not plugged in or wall electrical breaker is Plug unit in and/or check electrical outlet. tripped. ON/OFF SWITCH ON AND LIT UP, HEATING LIGHT NOT ON Possible Causes What To Do Loose wire.
