- Page 1 VIPER (PRELIMINARY) Operator’s Manual Release Date: October 11, 2008 Publication Number: 621260373OPR Revision Date: N/A Revision: Preliminary A9...
- Page 2 Appropriate safety precautions should be followed and all local safety and construction requirements should be met. To inquire about current revisions of this and other documentation, or for assistance with any Cornelius product contact: www.cornelius.com...
-
Page 3: Table Of Contents
Operator’s Manual TABLE OF CONTENTS Safety................1 Safety Instructions . - Page 4 Operator’s Manual...
-
Page 5: Safety
COULD result in serious injury, death, or equipment damage. Caution CAUTION - Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury or equipment damage. © 2008, IMI Cornelius Inc. - 1 - Publication Number: 621260373OPR... -
Page 6: Safety Tips
All liquids must be purged from the unit after sanitizing. A freezing ambient environment will cause residual sanitizing solution or water remaining inside the Unit to freeze resulting in damage to the internal components. Publication Number: 621260373OPR - 2 - © 2008, IMI Cornelius Inc. -
Page 7: System Overview

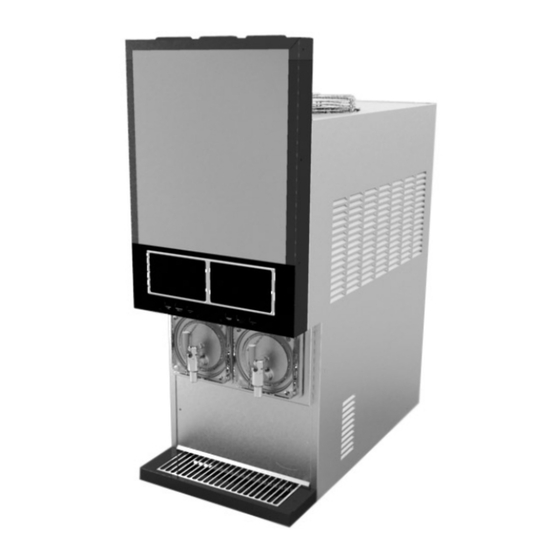

Operator’s Manual SYSTEM OVERVIEW The Viper is a Frozen Carbonated Beverage (FCB) unit. It delivers FCB and FUB drinks from a single machine. The unit provides uniform, high quality, high volume product to the customer. The unit has a refrigeration system for the barrels, along with an intelligent defrost system for product quality. -
Page 8: Basic Operation
Dry all external surfaces with a clean soft cloth. Remove the drip tray (if applicable) and wash with a mild soap solution. Dry the tray thoroughly and replace it. (Do not use abrassive or chlorine based cleaners.) Publication Number: 621260373OPR - 4 - © 2008, IMI Cornelius Inc. -
Page 9: Barrel Status Lights
PERATION Control System Overview The Viper uses a control system that monitors and controls all of the major sys- tems and components of the machine. The control system is set up by the service provider to perform the tasks neces- sary to operate the unit. -
Page 10: Control Panel Display
Opens the Main menu. Turns the highlighted barrel Off. Turns the highlighted barrel On. DFRST Defrosts the highlighted barrel. SPIN Turns off refrigeration and turns on the barrel motor. Publication Number: 621260373OPR - 6 - © 2008, IMI Cornelius Inc. -
Page 11: Replenishing Supplies
Pull the bag container out of the box and remove the dust cap. Rinse the connector in warm water. Screw the connector (Clockwise) onto the bag connector. Important! The connection MUST be air tight. © 2008, IMI Cornelius Inc. - 7 - Publication Number: 621260373OPR... -
Page 12: Type 2 Bib Syrup Connections
Important! Button should be flush, as shown in Figure 8. Bag Connector Stub Syrup Tube Connector Tab Figure 8 Publication Number: 621260373OPR - 8 - © 2008, IMI Cornelius Inc. -
Page 13: Co2
Replenishing CO Supply The Viper unit is designed to operate on a CO2 input pressure of 70 to 75 psig. If the installation location has either an independant tank and regulator or a bulk CO2 supply that feeds more than one machine, a shutoff valve and secondary regulator must be placed in the line from the bulk supply to the Viper unit to reduce the CO2 pressure at the unit to 70-75 psig. -
Page 14: Maintaining Product Quality
Please follow any specific instructions for your location. Intelligent Defrost The control system in the Viper unit includes a function to automatically defrost System product in the cylinder when product throughput is not sufficient to maintain quality. -
Page 15: Maintenance
Remove the filter by grasping the two tabs (Figure 9) and sliding it straight out the front of the unit. Carefully wash the filter with clean water. Shake out the excess water. Reinstall the air filter, mesh side down. Close the merchandiser. © 2008, IMI Cornelius Inc. - 11 - Publication Number: 621260373OPR... - Page 16 Operator’s Manual (PRELIMINARY) Figure 9 Publication Number: 621260373OPR - 12 - © 2008, IMI Cornelius Inc.
-
Page 17: Troubleshooting
C. Unit in diagnostics C. Exit diagnostics & turn barrels ON No water pressure Water source not Turn on water turned on Filter blocked Change filter C. Other C. Call Servie © 2008, IMI Cornelius Inc. - 13 - Publication Number: 621260373OPR... -
Page 18: Specifications
CO2 Tubing Size: ....... .1/4 in. I.D., 75 ft. max. supply pressure to Viper should never exceed 75 p.s.i.g. -
Page 19: Warranty
Period of Warranty applicable to the original measured from the date of replacement. This Commercial Warranty does not include, and CORNELIUS will not assume or pay, the expense of travel time or mileage, any premium time of any party other than CORNELIUS; any repair, replacement, analysis or any other services or parts furnished by any party other than CORNELIUS unless specifically authorized in advance and in writing by CORNELIUS. - Page 20 Goods Tag, properly filled out as to unit model number and serial number and detailed explanation of failure. Except for descriptions of size, quantity and type, which may appear on CORNELIUS' invoices and other written materials, and except for any statements of conformity of CORNELIUS' products with specifications of certain industry, government or professional organizations standards, which may appear as product information disclosures in CORNELIUS' literature and other documents from time to time.
- Page 22 IMI Cornelius Inc. www.cornelius.com...
