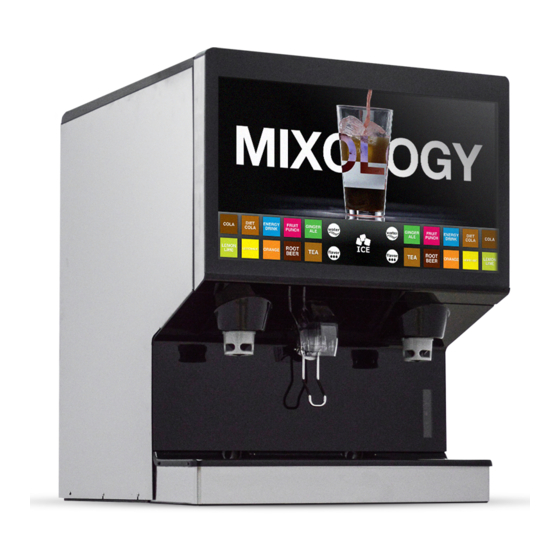

Cornelius IDC PRO Service Manual
Wifi card replacement instructions
Hide thumbs
Also See for IDC PRO:
- Replacement instructions manual (20 pages) ,
- Troubleshooting manual (12 pages) ,
- How-to (6 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cornelius IDC PRO
Summary of Contents for Cornelius IDC PRO
- Page 1 WiFi Card Replacement Instructions – IDC PRO Document Revision x1 Berkshire Hathaway...
- Page 2 WiFi Card Replacement Instructions – IDC PRO Tools Required: 1. Large Phillips Screw Driver Before proceeding, unplug the power harness from the unit. NOTES: 1. Wear a properly grounded ESD wrist strap if available. 2. Minimize body contact with electronic components.
- Page 3 WiFi Card Replacement Instructions – IDC PRO 4. Disconnect the fan harness and remove the cover Document Revision x1 Berkshire Hathaway...
- Page 4 WiFi Card Replacement Instructions – IDC PRO 5. Unplug the antennas from the WiFi card. Pull the plugs away from the board gently and they will pop off. 6. Carefully undo the lock screw to unlock the WiFi card. DO NOT LOOSE THIS...
- Page 5 WiFi Card Replacement Instructions – IDC PRO 7. Carefully replace the WiFi Card with a new part (It pops-out like the SSD card pictured below) Document Revision x1 Berkshire Hathaway...
- Page 6 WiFi Card Replacement Instructions – IDC PRO 8. Carefully secure the lock screw to lock the WiFi card. DO NOT LOOSE THIS PART! 9. Plug the antenna back in. It should pop into place. If there are two antenna wires, you want to plug the wire going to the top of the unit on the right and the wire going to the bottom of the unit on the left.
- Page 7 WiFi Card Replacement Instructions – IDC PRO 9. Connect the fan harness and replace the cover. Make sure the silicone (white glue) doesn’t get in the way of the pins and connector. Document Revision x1 Berkshire Hathaway...
- Page 8 WiFi Card Replacement Instructions – IDC PRO 10. Close the SBC cover 11. Secure the 4 screws as shown 12. Reconnect the power harness 13. After power up, ensure the fan is working properly. Document Revision x1 Berkshire Hathaway...
- Page 9 WiFi Card Replacement Instructions – IDC PRO 14. After unit is fully powered up, enter the service menu by touching the four corners on the screen and entering 3333 on the keypad that shows up. Document Revision x1 Berkshire Hathaway...
- Page 10 WiFi Card Replacement Instructions – IDC PRO 15. Touch the Wifi Setup button in the Service UI menu. The Wifi Network manager box will show up. Connect to an available network in your area and confirm there is a successful connection.
- Page 11 WiFi Card Replacement Instructions – IDC PRO 16. If the network you are trying to connect to is secured you will be prompted to input a password. Do so using the on-screen keyboard. Document Revision x1 Berkshire Hathaway...
- Page 12 WiFi Card Replacement Instructions – IDC PRO 17. Close out the Network Manager using the X on the top right corner of the box. You will go back to the Service UI Screen. Log out or shutdown the unit from here.
