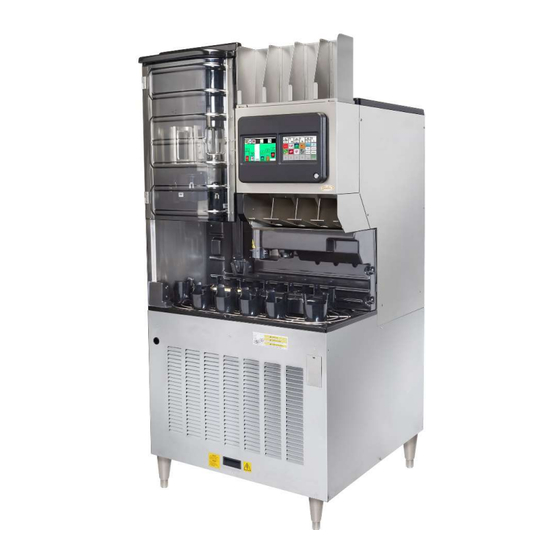

Cornelius ABS 2.0 Manual
Split panel backsplash installation
Hide thumbs
Also See for ABS 2.0:
- Service manual (68 pages) ,
- Installation manual (66 pages) ,
- Operator's manual (64 pages)
Subscribe to Our Youtube Channel
Related Manuals for Cornelius ABS 2.0
Summary of Contents for Cornelius ABS 2.0
- Page 1 ABS 2.0 Split Panel Backsplash Installation Release Date: May 30, 2024 Release Number: 629098035INS Review Date: May 13, 2024 Revision: A Visit the Cornelius: www.cornelius.com website for your literature needs. - 1 -...
- Page 2 Commercial Warranty. Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal service conditions with...
-
Page 3: Read And Follow All Safety Instructions
629098035INS: ABS 2.0 Split Panel Backsplash Installation SAFETY INSTRUCTIONS READ AND FOLLOW ALL SAFETY INSTRUCTIONS Security Summary Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/caution labels installed on the unit (decals, labels, or laminated cards). -
Page 4: Qualified Service Personnel
629098035INS: ABS 2.0 Split Panel Backsplash Installation Keep the unit under proper working condition and do not allow unauthorized modifications to the unit. QUALIFIED SERVICE PERSONNEL WARNING: Only trained and certified electrical, plumbing and refrigeration technicians can service the unit. -
Page 5: Kit Components
629098035INS: ABS 2.0 Split Panel Backsplash Installation KIT COMPONENTS ITEM NUMBER NAME 70171 SCREW MA 08‐32 TRPH 12 SS 71085 SCREW MA 08‐32 TRPH 40 620066447 GASKET SPLASH PANEL ABS 2.0 620072113 LABEL DO NOT POUR ABS 2.0 620073995 SPLASH PANEL ‐ RIGHT 620073996 SPLASH PANEL ‐... - Page 6 629098035INS: ABS 2.0 Split Panel Backsplash Installation SPLIT PANEL BACKSPLASH INSTALLATION PROCEDURE Table 1. Step Action Figure Login to the Technician interface using the password ‘9876’ Figure 1 Select ‘Diagnostics’ Figure 2...
- Page 7 629098035INS: ABS 2.0 Split Panel Backsplash Installation Select ‘Picker Diagnostics’ Figure 3 Select the up arrow to raise the grabber‐picker Figure 4...
- Page 8 629098035INS: ABS 2.0 Split Panel Backsplash Installation Remove the Single-Piece Panel Backsplash Remove the Conveyor Cover, Conveyor, Wire Cup Support, Nozzle & Diffuser Remove the 5 highlighted screws Figure 5 Pull the top of the backsplash panel down towards the front of the unit to remove it.
- Page 9 629098035INS: ABS 2.0 Split Panel Backsplash Installation Install the Left Split Panel Backsplash Tilt the top of the left panel towards the unit and the bottom of the panel towards the front of the unit. Figure 7 IMPORTANT: Ensure the retention lip, of the left...
- Page 10 629098035INS: ABS 2.0 Split Panel Backsplash Installation Install the provided 70101 (3X) screws Note: The ‘Do Not Pour’ label is not shown. Figure 9 Install the Right Split Panel Backsplash Seat the bottom of the right panel in the corner between the drip tray and right‐angle backsplash sheet metal...
- Page 11 629098035INS: ABS 2.0 Split Panel Backsplash Installation Align the lap joint between the left and right panel. Slide the right panel into the left panel so the lap joint is fully engaged. Figure 12 Install the 2 provided 71085 screws in the right panel.
- Page 12 629098035INS: ABS 2.0 Split Panel Backsplash Installation Reinstall the Wire Cup Support, Conveyor, Conveyor Cover, Diffuser & Nozzle. Figure 14...
- Page 13 629098035INS: ABS 2.0 Split Panel Backsplash Installation Cornelius Inc. www.cornelius‐usa.com...
