X-Box Ultra Power Connections
The X-Box Ultra can be powered using either an AC or DC power
source, depending on the requirements of the installation. The
provision of a DC power input means that the X-Box Ultra can be
powered by a suitable battery source when used on outside
broadcasts.
The X-Box Ultra also has a DC power out power socket to power
auxiliary devices.

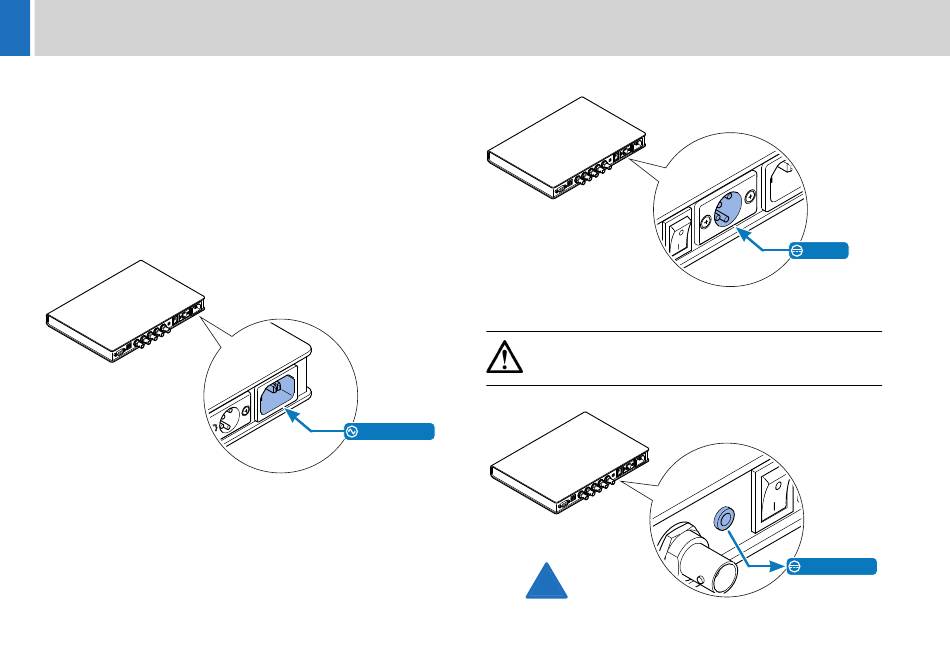

AC Power In Connection
8
DC Power In Connection
DC Power Out Connection
CAUTION! Do not exceed the current output limit of 1A
when powering auxiliary devices from the DC power out
socket.
90-260VAC
!
1 AMP MAX
12VDC
12VDC OUT
