5.5.2.2 Rotation

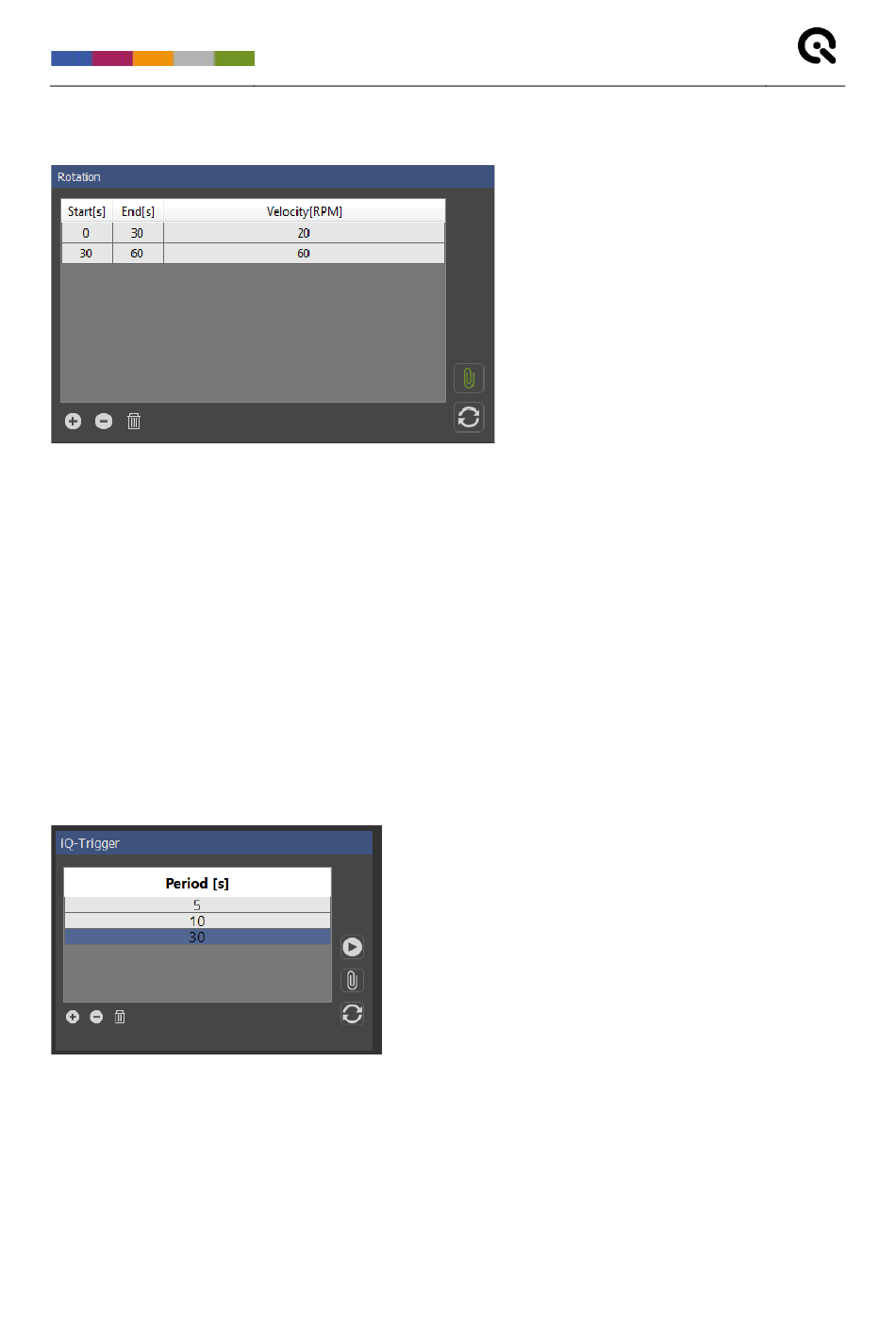

In the sequence table, movements for the rotating chart can be edited. There are three columns
available. The first contains the start times, the second the end times for a period of rotation, and the
last column the velocity in revolutions per minute (RPM). The velocity must be in the range between
-360 and 360 RPM. Positive values let the plate rotate counterclockwise, and negative values
clockwise.
The periods must not overlap in time, and negative times are not allowed. A message dialog is
displayed if a time value entered is invalid. To insert a break of rotating, enter a later start time for a
specific period than the end-time of the precedent period. Inserting a row with velocity 0 has the same
effect.

5.5.2.3 iQ-Trigger

The iQ-Trigger device allows you to release your camera button with the software. You can release iQ-
Trigger with the play/stop button [1] depending on the settings in the options menu
the one-shot, toggle, or continuous mode. A status bar at the bottom displays the progress of the iQ-
Trigger in the released state. In the sequence list, time stamps for the release of the iQ-Trigger can be
edited. At each time stamp, the iQ-Trigger is released for the time defined in the settings
5.3.1).
