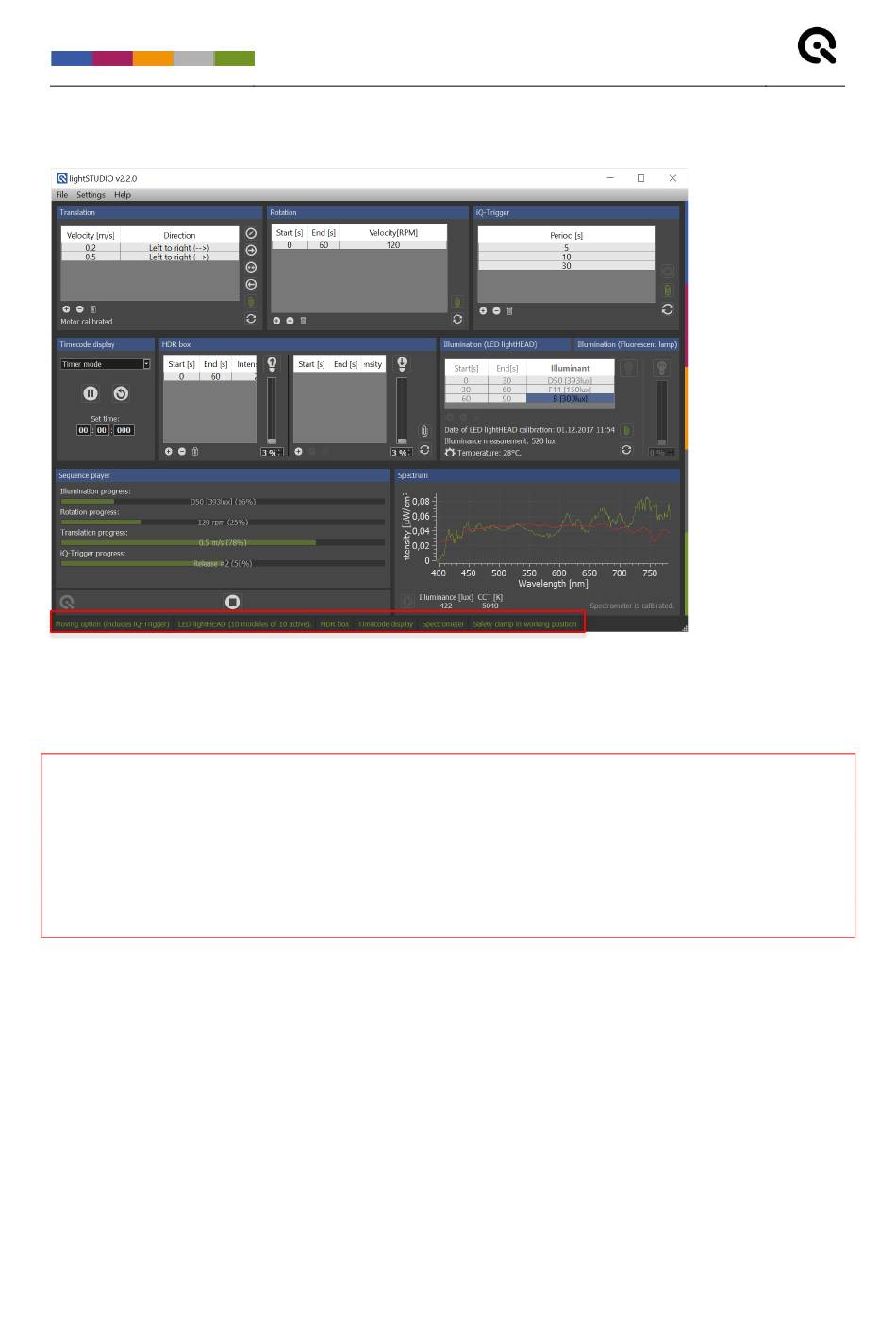

5.4 Hardware status bar
The status bar gives information about the connected hardware components. If a component is
available in your lightSTUDIO configuration, it is highlighted in green. The release state of the safety
clamp is also displayed.
NOTE:
If the safety clamp is pushed in, the internal control unit stops the power supply to the motors
immediately. All buttons for the translation or rotation functions are disabled in the software.
Pull the clamp out until it reaches the stop position to enable usage of the translation and
rotation functionality.
5.5 Module overview
Each component of the modular lightSTUDIO can be controlled separately. The software's plug-in
mechanism only displays modules connecting to the corresponding hardware device. If a device is
connected during runtime, the module appears in the GUI.
