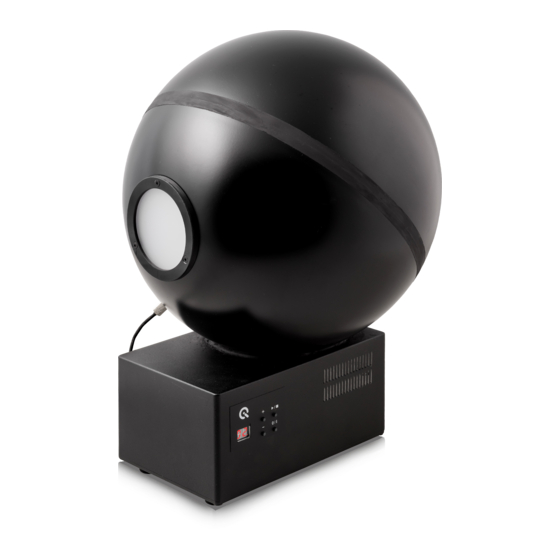

- Page 1 CAL1 User Manual 18. December 2018 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 · 50169 Kerpen-Horrem · Germany T +49 2273 99991-0 · F +49 2273 99991-10 · www.image-engineering.com...
-
Page 2: Table Of Contents
4.3.3 iQ-LED calibration ....................8 4.4 Low intensity use ......................8 5 ADDITIONAL INFORMATION ................... 9 5.1 Maintenance ........................ 9 5.2 Care instructions ......................9 5.3 Disposal instructions ....................9 6 TECHNICAL DATA SHEET ..................... 10 Image Engineering CAL1 Seite 2 von 10... -
Page 3: Introduction
Keep these instructions in a safe place and pass them to any future user. 1.1 Conformity We, Image Engineering GmbH & Co. KG, hereby declare, that the CAL1 corresponds to the essential requirements of the following EC directive in its current version: Electromagnetic Compatibility - 2014/30/EU •... -
Page 4: General Safety Information
Do not look directly in the open sphere or light source when using high intensities • or sequences with low response time. Do not open the device without any instructions from the Image Engineering • support team or when connected to the power supply. -
Page 5: Operating Instructions Hardware
1: illuminant A (default illuminant) 2: illuminant D50 3: illuminant D75 Note: To store your own generated illuminants or sequences on your device, please follow the instructions in the iQ-LED SW user manual. Image Engineering CAL1 Seite 5 von 10... -
Page 6: Connecting The Hardware
(See 2.1 optional equipment) 3.2 Connecting the hardware 1. Connect the power cord to the power supply on the back of CAL1. 2. Connect the USB cable to the CAL1 and your PC. 3. Turn on the CAL1; the power switch is located beside the power supply. -
Page 7: Camera Positioning
Operating Instructions Software 3.3 Camera positioning your DUT should be as close as possible to the CAL1 diffusor • the lens should be exactly in the middle of the diffusor • If these requirements are not fulfilled, an inhomogeneous illuminated field of view will occur. The easiest way to align the camera correctly is to use the optional iQ-Align. -
Page 8: Iq-Led Calibration
4.3.3 iQ-LED calibration The individual LED lights of the iQ-LED inside the CAL1 depends on many different types and wavelengths. Some LEDs will change their intensity level and peak wavelength slightly in the first 500-600 working hours because of a burn-in effect. -
Page 9: Additional Information
• 5.3 Disposal instructions After the service life of CAL1, it must be disposed of properly. Electrical and electromechanical components are included in CAL1. Observe your national regulations. Make sure that CAL1 cannot be used by third parties after disposing of it. -
Page 10: Technical Data Sheet
Technical data sheet 6 TECHNICAL DATA SHEET See annex for the technical data sheet. It can also be downloaded from the website of Image Engineering: www.image-engineering.com. Image Engineering CAL1 Seite 10 von 10...
