5.5.1 Sequence lists

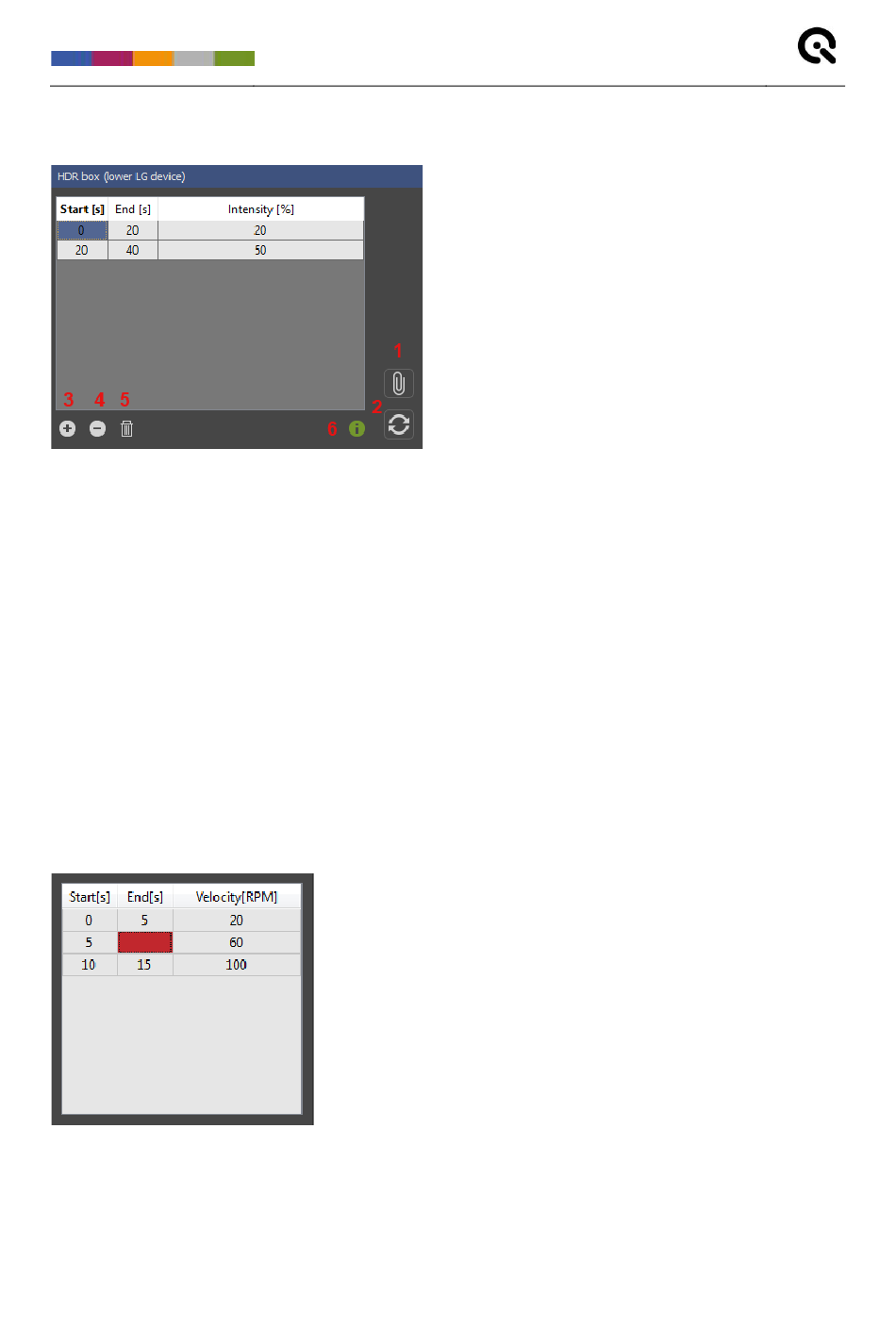

Each hardware control module in the software, except the timecode display, has five buttons and a
table for sequence editing. Lists for sequences of movements, rotations, iQ-Trigger releases, and
illumination (lightHEAD and HDR option) can be edited with a table, modified, and saved for reuse. All
sequence lists can be executed simultaneously.
When the button [1] is activated, the sequence is started by clicking the play button
Sequence player). If the button [1] is activated, none of the control items in each module can be used
to avoid disturbance of the sequence. If the loop button [2] is activated, the complete sequence list for
this component of the lightSTUDIO is repeated infinitely until the user stops the sequence.
There are three buttons when editing the list: a new row is added to the table with the button "+" [3].
Button [4] deletes a selected row, and a button [5] clears the whole table. Move the mouse cursor over
the info button [6] to display useful technical data about the corresponding device.
All lists can be saved and opened in the File menu or with the keyboard shortcuts Ctrl + S and Ctrl +
O.
Image Engineering
While editing the fields of a table, the values are validated for the
wrong input. Velocities in rotation and translation are verified for
applicability (see data sheet for limits), and times are checked for
overlapping ranges. The numbers entered may have a decimal
notation using a '.' or a ','. Missing values are highlighted in red.
The buttons [1] and [2] are only enabled if the table is complete.
All sequences can be added to thr sequence tool in every desired
combination.
